Sublimation Collection Lab Vacuum Si2o Furnace Horizontal With Temperature Control
Sublimation Collection Lab Vacuum Si2o Furnace Horizontal With Temperature Control
Specifications
Brand Name :
Jingtan
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Delivery Time :
60 days
Packaging Details :
wooden case
place of origin :
Hunan, China
type :
Resistance Furnace
usage :
deposition furnace
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC
brand name :
OEM
voltage :
380v
weight (t) :
2 T
warranty :
1 Year
key selling points :
Accurate temperature control
Furnace structure :
Horizontal type
Size of constant temperature zone :
120L 226L 385L 800L
Sublimation system :
induction coil,heavy corundum,graphite hard felt,isostatic graphite
Collection area :
310S stainless steel,insulation layer
Temperature control system :
PLC touch screen centralized contro mode
Heating system :
IGBT powder supply
Vacuum system :
Multistage vacuum pump,vacuum valve,pressure controller,pipeline
Cooling system :
Internal circulation deionized water,
Application 1 :
vacuum sublimation,reaction furnace grinding scraping collection
Application 2 :
Vacuum degreasing,dehydration
Warranty of core components :
1 Year
Description

Products Description

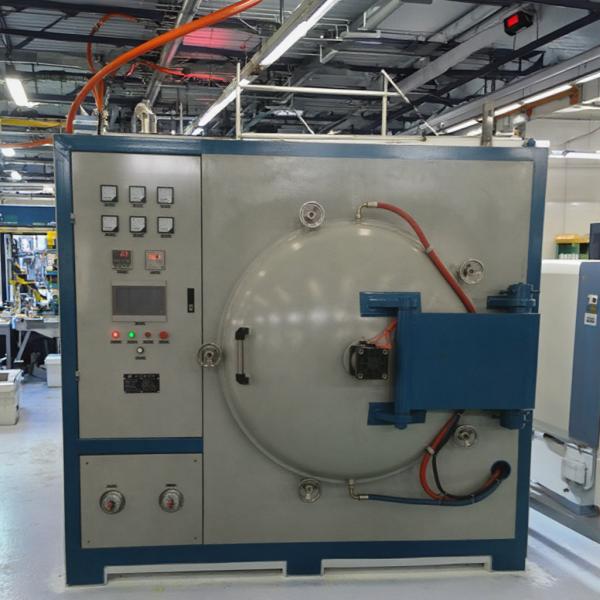

Silicon oxide vacuum sublimation furnace:
Suitable for mass production of vapor deposition materials such as silicon oxide; High precision temperature difference control,
high temperature vacuum furnace; With high vacuum sublimation, reaction, degreasing, dehydration, vapor deposition material
automatic grinding scraping, furnace collection and other special process capabilities.

Sublimation Collection Lab Vacuum Si2o Furnace Horizontal With Temperature Control
Sublimation Collection Lab Vacuum Si2o Furnace Horizontal With Temperature Control
Furnace structure
horizontal type
Size of constant temperature zone
Φ500mm*600mm ,Φ600mm*800mm ,Φ700mm*1000mm ,Φ800mm*1600mm,etc sizes.
(can be customized according to customer needs)
furnace body
The inner and outer double-layer water cooling structure, and the contact part of the cooling water made of 304 stainless steel,
effectively prevent the furnace body for a long time to use gas leakage phenomenon
Sublimation system
The heating zone is composed of induction coil, heavy corundum, graphite hard felt and isostatic graphite. The collection area is
composed of 310S stainless steel and insulation layer.
Sublimation Collection Lab Vacuum Si2o Furnace Horizontal With Temperature Control

Feature 1:

A large amount of material, high production efficiency.
The temperature is controlled within 1500 degrees, and the heating rate is fast. Can maintain stable operation under vacuum.
Sublimation Collection Lab Vacuum Si2o Furnace Horizontal With Temperature Control

Feature 2:

The whole process is completely closed and automatic operation to avoid dust flying, and the production site environment is clean and tidy.
Company Profile
Our company philosoph:
We are not your supplier,but your parter and supply the whole thermal treatment furnace solutions with strong R&D research team,stable supply chain with 14+ years experience under the strict ISO9001:2015 quality management system.
Sublimation Collection Lab Vacuum Si2o Furnace Horizontal With Temperature Control
The State Intellectual Property Office of the People's Republic of China (SIPO), in accordance with the Patent Law of the People's Republic of China, examined and granted our patent rights:
Sublimation Collection Lab Vacuum Si2o Furnace Horizontal With Temperature Control

Patent for high temperature graphitization furnace:

Sublimation Collection Lab Vacuum Si2o Furnace Horizontal With Temperature Control

Patent for high temperature vacuum hot pressure furnace:

Sublimation Collection Lab Vacuum Si2o Furnace Horizontal With Temperature Control

Patent for high temperature continuous furifing graphitization furnace:

Sublimation Collection Lab Vacuum Si2o Furnace Horizontal With Temperature Control

Patent for carbonization sintering furnace:

Sublimation Collection Lab Vacuum Si2o Furnace Horizontal With Temperature Control

Patent for bottom discharge graphitization furnace:

Sublimation Collection Lab Vacuum Si2o Furnace Horizontal With Temperature Control

Patent for carbon fiber continuous furnace

Production process
Sublimation Collection Lab Vacuum Si2o Furnace Horizontal With Temperature ControlCustomers Photos Sublimation Collection Lab Vacuum Si2o Furnace Horizontal With Temperature ControlCustomer cooperation cases:Sublimation Collection Lab Vacuum Si2o Furnace Horizontal With Temperature Control
FAQ

Are you a factory or trading company?

Q: Are you a factory or trading company?
A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.

Do you have customization or OEM service?

Q: Do you have customization or OEM service??
A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

What's your advantages?

Q:What's your advantages?
A:Quick response to your enquiry
High quality control
Stable supply chain in the domestic maket
Timely delivery
Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
