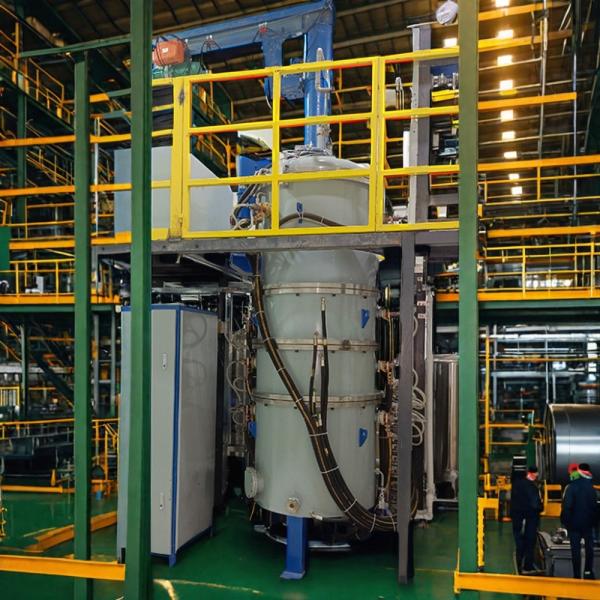

Electric Heating CVD Vapor Deposition Furnace High Temperature Intelligent Pressure Control
Electric Heating CVD Vapor Deposition Furnace High Temperature Intelligent Pressure Control
Specifications
Brand Name :
Jingtan
Certification :
CE
MOQ :
1 set
Delivery Time :
60 days
Packaging Details :
wooden case
Description
Products Description
Vapor Deposition Furnace
(1) The electric heating way:uniform heating, simple operation, easy control and maintenance.
(2) The furnace is made of special materials with strong high temperature resistance, which can withstand the weight of high temperature heating elements and heavy components, and has excellent sealing performance, which can effectively prevent the sediment growing on the substrate from being contaminated.
(3) Intelligent pressure control, small pressure fluctuation;
(4) The fully enclosed structure has good thermal stability, good sealing effect and strong anti-pollution ability;
(5) Multi-channel process gas path, uniform flow, no deposition dead Angle, good deposition effect;
(6) Multi-stage high-efficiency exhaust treatment system, environmentally friendly, efficient collection of tar and by-products, easy to clean;
(7)The cooling method is adopted, the shell is cooled by water, the external circulation fast cooling system can be selected, the cooling time is short, and the production efficiency is high.
Electric Heating CVD Vapor Deposition Furnace High Temperature Intelligent Pressure ControlElectric Heating CVD Vapor Deposition Furnace High Temperature Intelligent Pressure Control
Product Usage
Used for CVD/CVI treatment of the surface or matrix of the material with hydrocarbon gas (such as C3H8, CH4, etc.) as the carbon source, and for the surface coating of the material, matrix modification, composite material preparation, etc.
Model
JT-CJL-04
JT-CJL-14
JT-CJL-31
JT-CJL-74
JT-CJL-127
JT-CJL-211
JT-CJL-326
JT-CJL-588
Working Zone Size
φ×H(mm)
100×500
150×800
200×1000
250×1500
300×1800
350×2200
400×2600
500×3000
Limit Temperature(℃)
2200/2800
Temperature uniformity(℃)
±3/±5
±3/±5
±5/±7.5
±7.5/±10
±7.5/±10
±10/±15
±10/±15
±15/±20
Limit Vacuum Degree(Pa)
≤30
≤30
≤50
≤50
≤100
≤100
≤100
≤100
Pressure rise rate(Pa/h)
1
1
2
2
5
5
5
5
Heating method
graphite resistance/induction heating
The above parameters can be adjusted according to the process requirements, and shall not be used as the basis for acceptance.The specific technical plan and agreement shall prevail.
Company Profile
Qualification and Patents
Electric Heating CVD Vapor Deposition Furnace High Temperature Intelligent Pressure Control
Our company philosoph:
We are not your supplier,but your parter and supply the whole thermal treatment furnace solutions with strong R&D research team,stable supply chain with 14+ years experience under the strict ISO9001:2015 quality management system.
The State Intellectual Property Office of the People's Republic of China (SIPO), in accordance with the Patent Law of the People's Republic of China, examined and granted our patent rights:
Electric Heating CVD Vapor Deposition Furnace High Temperature Intelligent Pressure Control

Patent for carbonization sintering furnace
Electric Heating CVD Vapor Deposition Furnace High Temperature Intelligent Pressure Control

Patent for bottom discharge graphitization furnace:
Electric Heating CVD Vapor Deposition Furnace High Temperature Intelligent Pressure Control

Patent for carbon fiber continuous furnace
Electric Heating CVD Vapor Deposition Furnace High Temperature Intelligent Pressure Control

Patent for high temperature graphitization furnace
Electric Heating CVD Vapor Deposition Furnace High Temperature Intelligent Pressure Control

Patent for high temperature vacuum hot pressure furnace
Electric Heating CVD Vapor Deposition Furnace High Temperature Intelligent Pressure Control

Patent for high temperature continuous furifing graphitization furnace
Production process
Electric Heating CVD Vapor Deposition Furnace High Temperature Intelligent Pressure Control
Customer Photoes
Electric Heating CVD Vapor Deposition Furnace High Temperature Intelligent Pressure Control
Logistics System All Around the World.
Electric Heating CVD Vapor Deposition Furnace High Temperature Intelligent Pressure Control
Electric Heating CVD Vapor Deposition Furnace High Temperature Intelligent Pressure Control
Electric Heating CVD Vapor Deposition Furnace High Temperature Intelligent Pressure Control
Customer Cooperation Cases
Electric Heating CVD Vapor Deposition Furnace High Temperature Intelligent Pressure Control
FAQ

Are you a factory or trading company?

Q: Are you a factory or trading company?
A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.

Do you have customization or OEM service?

Q: Do you have customization or OEM service??
A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

What's your advantages?

Q:What's your advantages?
A:Quick response to your enquiry
High quality control
Stable supply chain in the domestic maket
Timely delivery
Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
