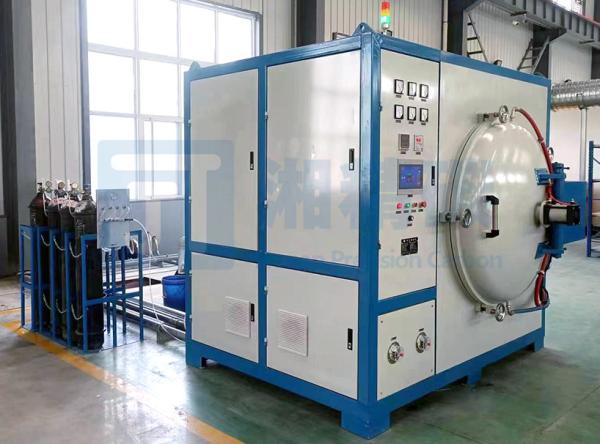

Horizontal Silicon Oxide Vacuum Sublimation Furnace For Vapor Deposition Materials
Horizontal Silicon Oxide Vacuum Sublimation Furnace For Vapor Deposition Materials
Specifications
Brand Name :
Jingtan
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Delivery Time :
60 days
Packaging Details :
wooden case
Description
Products Description

Silicon Oxide Vacuum Sublimation Furnace
(1) A large amount of material, high production efficiency.
(2) The whole process is completely closed and automatic operation to avoid dust flying, and the production site environment is clean and tidy.
(3) The temperature is controlled within 1500 degrees, and the heating rate is fast. It can maintain stable operation under vacuum.
Horizontal Silicon Oxide Vacuum Sublimation Furnace For Vapor Deposition Materials
Suitable for mass production of vapor deposition materials such as silicon oxide; High precision temperature difference control, high temperature vacuum furnace.

Horizontal Silicon Oxide Vacuum Sublimation Furnace For Vapor Deposition Materials

With high vacuum sublimation, reaction, degreasing, dehydration, vapor deposition material automatic grinding scraping, furnace collection and other special process capabilities.

Model
JT-SHL-118

JT-SHL-226
JT-SHL-385
JT-SHL-804
Furnace Structure
horizontal
Constant Temperature Zone Size
Φ500mm*600mm
Φ600mm*800mm
Φ700mm*1000mm
Φ800mm*1600mm
Furnace Body
The inner and outer double-layer water cooling structure, the contact part of the cooling water made of 304 stainless steel, effectively prevent furnace body from gas leakage
Sublimation System
Heating zone is composed of induction coil, heavy corundum, graphite hard felt and isostatic graphite. And collection area is composed of 310S stainless steel and insulation layer.
Temperature Control System
PLC touch screen centralized control , automatic control with network port
Heating System
induction heating, IGBT power supply with low noise, about 15% energy saving than thyristor
Vacuum System
multistage vacuum pump, vacuum valve, pressure controller and pipelines
Cooling System
closed cooling system, internal circulation with deionized water, external circulation with tap water, automatic water refill, fan heat dissipation
Qualification and Patents
Our company philosoph:

We are not your supplier,but your parter and supply the whole thermal treatment furnace solutions with strong R&D research team,stable supply chain with 14+ years experience under the strict ISO9001:2015 quality management system.

Horizontal Silicon Oxide Vacuum Sublimation Furnace For Vapor Deposition Materials
The State Intellectual Property Office of the People's Republic of China (SIPO), in accordance with the Patent Law of the People's Republic of China, examined and granted our patent rights:
Horizontal Silicon Oxide Vacuum Sublimation Furnace For Vapor Deposition Materials

Patent for carbonization sintering furnace
Horizontal Silicon Oxide Vacuum Sublimation Furnace For Vapor Deposition Materials

Patent for bottom discharge graphitization furnace:
Horizontal Silicon Oxide Vacuum Sublimation Furnace For Vapor Deposition Materials

Patent for carbon fiber continuous furnace
Horizontal Silicon Oxide Vacuum Sublimation Furnace For Vapor Deposition Materials

Patent for high temperature graphitization furnace
Horizontal Silicon Oxide Vacuum Sublimation Furnace For Vapor Deposition Materials

Patent for high temperature vacuum hot pressure furnace
Horizontal Silicon Oxide Vacuum Sublimation Furnace For Vapor Deposition Materials

Patent for high temperature continuous furifing graphitization furnace
Production process
Horizontal Silicon Oxide Vacuum Sublimation Furnace For Vapor Deposition Materials
Customer Photoes
Horizontal Silicon Oxide Vacuum Sublimation Furnace For Vapor Deposition Materials
Logistics System All Around the World.
Horizontal Silicon Oxide Vacuum Sublimation Furnace For Vapor Deposition Materials
Horizontal Silicon Oxide Vacuum Sublimation Furnace For Vapor Deposition Materials
Customer Cooperation Cases
Horizontal Silicon Oxide Vacuum Sublimation Furnace For Vapor Deposition Materials
FAQ

Are you a factory or trading company?

Q: Are you a factory or trading company?
A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.

Do you have customization or OEM service?

Q: Do you have customization or OEM service??
A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

What's your advantages?

Q:What's your advantages?
A:Quick response to your enquiry
High quality control
Stable supply chain in the domestic maket
Timely delivery
Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
