2800 Degree Heat Treat Continuous Furnace Graphite Boat Pushing Furnace ISO Qualified
2800 Degree Heat Treat Continuous Furnace Graphite Boat Pushing Furnace ISO Qualified
Specifications
Price :
USD15,000-100,000/SET
Brand Name :
Jingtan
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Delivery Time :
60 days
Packaging Details :
wooden case
Payment Terms :
L/C/T/T
Description
Products Description

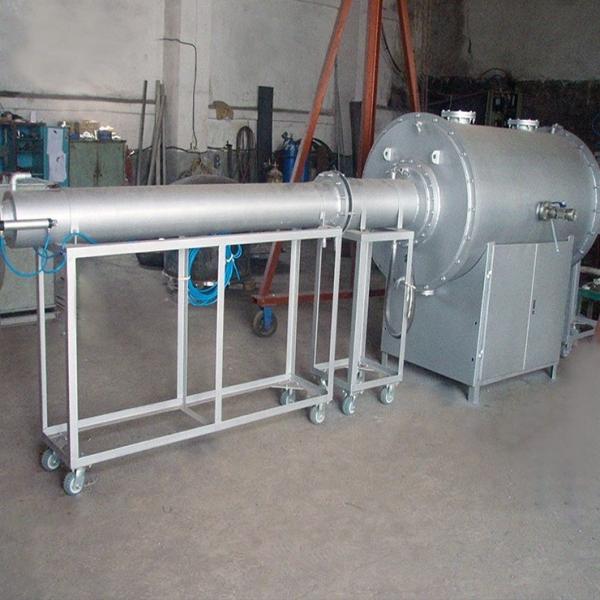

Graphite pushing boat furnace:
Graphite pushing furnace uses graphite plate bearing graphite material box, with a push rod box after box to push to the heating
area, in the atmosphere protection state of powder reduction, sintering of powder metallurgy products and other heat treatment.

Suitable for powder metallurgy processing and graphite material processing.

Model
JT-ZTL-10
JT-ZTL-20
JT-ZTL-30
Capacity(kg/d)
200
400
700
Maximum Temperature(℃)
2800
Temperature Control Method
PID Auto control
Protective Gas
Ar
Rated Power(kw)
120
220
180
Voltage(V)
3 phase 380
Temperature Measurement Method
Infrared measurement
Working Method
Push boat intermittent feeding
Boat size
Φ120*320mm
Φ200*420mm
Φ150*400mm
Cooling Mode
cooling by circulating water

Features:

1) Adopt new heating technology, high service temperature and long service life;
2) Long service life of furnace tube, continuous production 20-30 days without stop the furnace;
3) Continuous material in and out, good sealing performance, less gas consumption;
4) Adopt push-boat production mode, continuous production can be continuously furnace;
5) Automatic boat loading, pushing, discharging and reversing mechanism can be selected, with stable product quality and low labor intensity;
6) The length of furnace body can be increased or decreased according to the actual situation of users;
7) With remote control function, remote control, fault diagnosis and software upgrade;
8) Three-phase power supply, three-phase power balance, stable performance.
2800 Degree Heat Treat Continuous Furnace Graphite Boat Pushing Furnace ISO Qualified

Features 1:

1)Adopt new heating technology, high service temperature and long service life;
2)Long service life of furnace tube, continuous production 20-30 days without stop the furnace;
3) Continuous material in and out, good sealing performance, less gas consumption;
4) Adopt push-boat production mode, continuous production can be continuously furnace;
2800 Degree Heat Treat Continuous Furnace Graphite Boat Pushing Furnace ISO Qualified

Features 2:

5) Automatic boat loading, pushing, discharging and reversing mechanism can be selected, with stable product quality and low labor intensity;
6) The length of furnace body can be increased or decreased according to the actual situation of users;
7)With remote control function, remote control, fault diagnosis and software upgrade;
8) Three-phase power supply, three-phase power balance, stable performance.
Company Profile
2800 Degree Heat Treat Continuous Furnace Graphite Boat Pushing Furnace ISO Qualified
2800 Degree Heat Treat Continuous Furnace Graphite Boat Pushing Furnace ISO Qualified
Our company philosoph:
We are not your supplier,but your parter and supply the whole thermal treatment furnace solutions with strong R&D research team,stable supply chain with 14+ years experience under the strict ISO9001:2015 quality management system.
The State Intellectual Property Office of the People's Republic of China (SIPO), in accordance with the Patent Law of the People's Republic of China, examined and granted our patent rights:
2800 Degree Heat Treat Continuous Furnace Graphite Boat Pushing Furnace ISO Qualified

Patent for high temperature graphitization furnace:

2800 Degree Heat Treat Continuous Furnace Graphite Boat Pushing Furnace ISO Qualified

Patent for high temperature vacuum hot pressure furnace:

2800 Degree Heat Treat Continuous Furnace Graphite Boat Pushing Furnace ISO Qualified

Patent for high temperature continuous furifing graphitization furnace:

2800 Degree Heat Treat Continuous Furnace Graphite Boat Pushing Furnace ISO Qualified

Patent for carbonization sintering furnace:

2800 Degree Heat Treat Continuous Furnace Graphite Boat Pushing Furnace ISO Qualified

Patent for bottom discharge graphitization furnace:

2800 Degree Heat Treat Continuous Furnace Graphite Boat Pushing Furnace ISO Qualified

Patent for carbon fiber continuous furnace

Production process
2800 Degree Heat Treat Continuous Furnace Graphite Boat Pushing Furnace ISO Qualified

Customer Photos
2800 Degree Heat Treat Continuous Furnace Graphite Boat Pushing Furnace ISO Qualified
Our logistics system is all around the world.
2800 Degree Heat Treat Continuous Furnace Graphite Boat Pushing Furnace ISO Qualified
2800 Degree Heat Treat Continuous Furnace Graphite Boat Pushing Furnace ISO Qualified
2800 Degree Heat Treat Continuous Furnace Graphite Boat Pushing Furnace ISO Qualified
Customer cooperation cases:
2800 Degree Heat Treat Continuous Furnace Graphite Boat Pushing Furnace ISO Qualified
FAQ

Are you a factory or trading company?

Q: Are you a factory or trading company?
A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.

Do you have customization or OEM service?

Q: Do you have customization or OEM service??
A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

What's your advantages?

Q:What's your advantages?
A:Quick response to your enquiry
High quality control
Stable supply chain in the domestic maket
Timely delivery
Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
