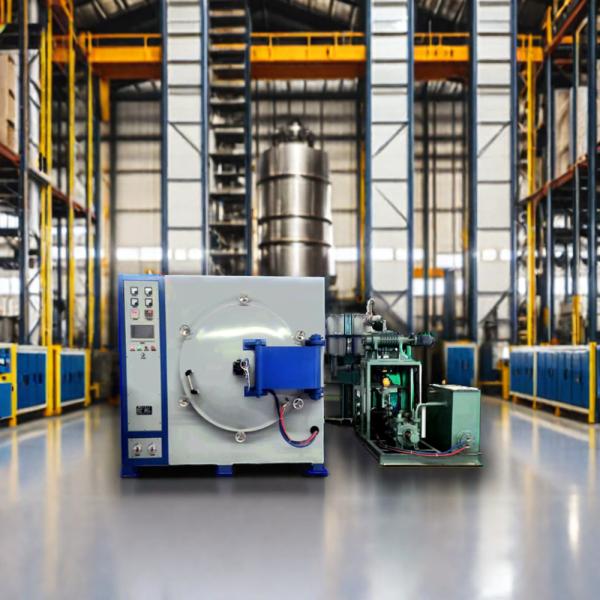

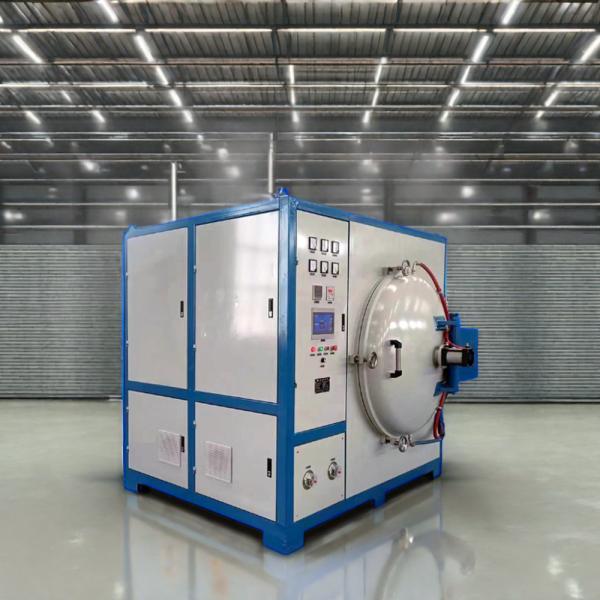

SiO Silicon Oxide Pressureless Sintering Furnace Oven Heating Machine with Temperature Control
SiO Silicon Oxide Pressureless Sintering Furnace Oven Heating Machine with Temperature Control
Specifications
Certification :
ISO CE
Brand Name :
Jingtan
MOQ :
1 set
Delivery Time :
60 days
Packaging Details :
wooden case
place of origin :
Hunan, China
type :
Induction Furnace
usage :
Sintering Furnace
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC, Engine, motor
brand name :
Jingtan
voltage :
380
weight (t) :
2 T
power (kw) :
150
warranty :
1 Year
key selling points :
Competitive Price
operation temperature :
≤1500℃
temperature rising speed :
fast
temperature measurement control :
program and manual
After Warranty Service :
One Year
Condition :
New
Warranty of core components :
1 Year
Showroom Location :
Canada, United Kingdom, United States, France, Germany, Russia
Marketing Type :
Hot Product
Applicable Industries :
Energy & Mining, metallurgical powder industry
Description

High Performance SiO Silicon Oxide Pressureless Sintering Furnace Oven Heating Machine

Specification
Product Feature
1. A large amount of material, high production efficiency.
2. The whole process is completely closed and automatic operation, avoid dust flying, the production site environment is clean and
clean.
3. Temperature control within 1500 degrees, fast heating rate.
4. It can maintain stable operation under vacuum.

SiO Silicon Oxide Pressureless Sintering Furnace Oven Heating Machine with Temperature Control
SiO Silicon Oxide Pressureless Sintering Furnace Oven Heating Machine with Temperature Control

Product Usage

Suitable for mass production of vapor deposition materials such as silicon oxide; High precision temperature difference control, high temperature and high vacuum; With high vacuum sublimation, reaction, degreasing, dehydration, vapor deposition material automatic grinding scraping, furnace collection and other special process capabilities.
Product Parameters
SiO Silicon Oxide Pressureless Sintering Furnace Oven Heating Machine with Temperature Control

1. horizontal structure.
2. sublimation system, collection system, heating system, temperature control system, vacuum system, mechanical system and cooling system.
3. The sublimation system is composed of a heating zone and a collection zone. The heating zone is composed of induction coil, heavy corundum, graphite hard felt and isostatic graphite. The collection area is composed of 310S stainless steel and insulation layer.
4. Temperature control system adopts PLC touch screen centralized control mode, automatic control, with network port, can realize remote control.
5. The heating system adopts induction heating, and the power supply adopts IGBT energy saving power with low noise and about 15% energy saving compared with the traditional thyristor power supply.
SiO Silicon Oxide Pressureless Sintering Furnace Oven Heating Machine with Temperature Control

6. The vacuum system consists of multistage vacuum pump, vacuum valve, pressure controller and pipeline.
7. The furnace body is made of double-layer water cooling structure inside and outside, and the part in contact with the coolingwater is made of 304 stainless steel, which effectively prevents the furnace body from leaking gas for a long time.
8. The cooling system is equipped with a closed cooling system. The internal circulation uses deionized water, which will not cause scaling in equipment pipeline. The internal circulation water loss is small. Good heat dissipation effect, integrated environmental protection, small footprint and so on.
9. The size of the constant temperature zone: Φ500mm*600mm, Φ600mm*800mm, Φ700mm*1000mm, Φ800mm*1600mm and so on. (customization)
Company Profile
Qualification and Patents
SiO Silicon Oxide Pressureless Sintering Furnace Oven Heating Machine with Temperature Control
Our company philosoph:
We are not your supplier,but your parter and supply the whole thermal treatment furnace solutions with strong R&D research team,stable supply chain with 14+ years experience under the strict ISO9001:2015 quality management system.
The State Intellectual Property Office of the People's Republic of China (SIPO), in accordance with the Patent Law of the People's Republic of China, examined and granted our patent rights:
SiO Silicon Oxide Pressureless Sintering Furnace Oven Heating Machine with Temperature Control

Patent for high temperature graphitization furnace:

SiO Silicon Oxide Pressureless Sintering Furnace Oven Heating Machine with Temperature Control

Patent for high temperature vacuum hot pressure furnace:

SiO Silicon Oxide Pressureless Sintering Furnace Oven Heating Machine with Temperature Control

Patent for high temperature continuous furifing graphitization furnace:

SiO Silicon Oxide Pressureless Sintering Furnace Oven Heating Machine with Temperature Control

Patent for carbonization sintering furnace:

SiO Silicon Oxide Pressureless Sintering Furnace Oven Heating Machine with Temperature Control

Patent for bottom discharge graphitization furnace:

SiO Silicon Oxide Pressureless Sintering Furnace Oven Heating Machine with Temperature Control

Patent for carbon fiber continuous furnace

Production process
SiO Silicon Oxide Pressureless Sintering Furnace Oven Heating Machine with Temperature Control
Customer photoes
SiO Silicon Oxide Pressureless Sintering Furnace Oven Heating Machine with Temperature Control
Customer cooperation cases
SiO Silicon Oxide Pressureless Sintering Furnace Oven Heating Machine with Temperature Control
Logistics system all around the world.
SiO Silicon Oxide Pressureless Sintering Furnace Oven Heating Machine with Temperature Control
SiO Silicon Oxide Pressureless Sintering Furnace Oven Heating Machine with Temperature Control
SiO Silicon Oxide Pressureless Sintering Furnace Oven Heating Machine with Temperature Control

Pre-sales and after-sales service
SiO Silicon Oxide Pressureless Sintering Furnace Oven Heating Machine with Temperature Control
SiO Silicon Oxide Pressureless Sintering Furnace Oven Heating Machine with Temperature Control
FAQ

Are you a factory or trading company?

Q: Are you a factory or trading company?
A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.

Do you have customization or OEM service?

Q: Do you have customization or OEM service??
A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

What's your advantages?

Q:What's your advantages?
A:Quick response to your enquiry
High quality control
Stable supply chain in the domestic maket
Timely delivery
Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
