Inert Gas Atmosphere High Temperature Sintering Furnace for Cemented Carbide with Internal Circulation Water Cooling System
Inert Gas Atmosphere High Temperature Sintering Furnace for Cemented Carbide with Internal Circulation Water Cooling System
Specifications
Brand Name :
Jingtan
Certification :
CE
MOQ :
1 set
Delivery Time :
60 days
Packaging Details :
wooden case
place of origin :
Hunan, China
type :
Resistance Furnace
usage :
Sintering Furnace
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC, Gearbox, motor
brand name :
Jingtan
voltage :
380
weight (t) :
4 T
warranty :
1 Year
key selling points :
Accurate temperature control
Temperature Uniformity :
≤ ±10℃
Temperature Control Accuracy :
±1℃
Temperature Measurement Accuracy :
0.2~0.75%
Max. Temperature :
2400℃
Ultimate Heating Ratio :
200℃/h
Temperature Control :
Auto and Manual
Temperature Measurement :
Infrared Optical
Working Atmosphere :
argon, hydrogen, nitrogen,vacuum
Warranty of core components :
1 Year
Description
Specification
Inert Gas Atmosphere High Temperature Sintering Furnace for Cemented Carbide with Internal Circulation Water Cooling System

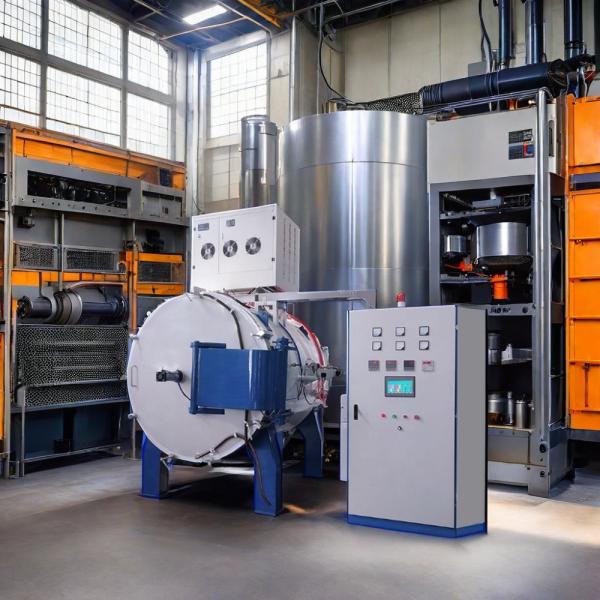

The high temperature sintering furnace
The high temperature sintering furnace is an intelligent electric furnace which is specially suitable for cemented carbide industry and so on. The engineers and technicians of our factory digest and absorb temperature control technology, intelligence, new material technology and furnace design technology at home and abroad.
The intermediate frequency induction sintering furnace produced by our factory is an intermittent gas (vacuum) protection furnace.According to sintering process time, a single set of power supply can be configured with multiple electric furnaces, which are heated and cooled by electricity for a single furnace to achieve continuous work.
Max. temperature
1600℃, 2000℃, 2400℃
JT-TSL-128
JT-TSL-375
JT-TSL-720
JT-TSL-1568
JT-TSL-2560
JT-TSL-5000
Common Temperature
300*300*500
400*400*
800
500*500*
1500
600*600*
2000
700*700*
3000
800*800*
4000
1000*1000*5000
Loading Capacity
45L
128L
375L
720L
1568L
2560L
5000L
High temperature volume
0.01m3, 0.02m3, 0.03m3, 0.05m3, 0.1m3, 0.15m3, 0.2m3, 0.3m3
Working atmosphere in furnace
vacuum, hydrogen, nitrogen, inert gas, etc.
Temperature uniformity
≤±10℃
Temperature measurement
infrared optical temperature measurement, temperature measurement range 800~2400℃ or 0~2400℃
Temperature control accuracy
±1℃
Temperature measurementl accuracy
0.2~0.75%
Temperature control
program control or manual control
Limit heating rate
200℃/min(empty furnace, depending on the volume of high temperature zone and furnace structure)
