Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components
Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components
Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components
Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components
Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components
Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components
Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components
Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components
Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components
Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components
Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components
Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components
Specifications
Price :
USD18,000-100,000/SET
Brand Name :
Jingtan
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Delivery Time :
60 days
Packaging Details :
wooden case
place of origin :
Hunan, China
type :
Induction Furnace
usage :
purification furnace
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC
brand name :
OEM
voltage :
380
weight (t) :
2 T
power (kw) :
120
warranty :
1 Year
key selling points :
Automatic
Operating temperature :
2800℃
The protective gas :
argon
Temperature measurement Mode :
Infrared temperature measurement
Condition :
New
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Applicable Industries :
Energy & Mining
Showroom Location :
Romania, Bangladesh
Description
Products Description

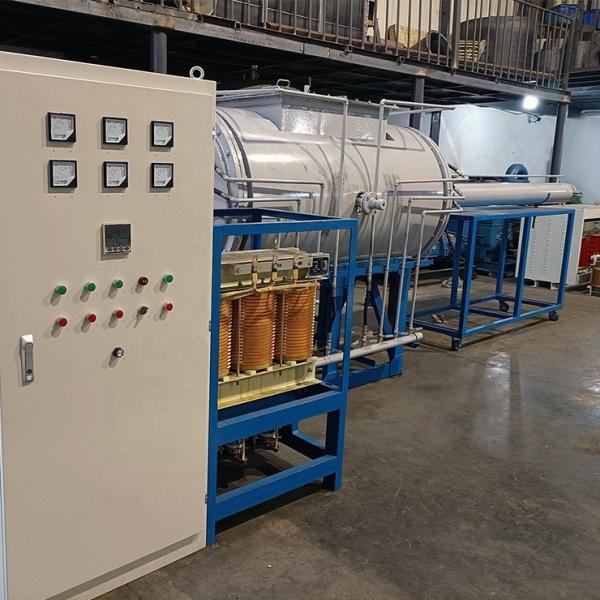

High temperature carbon tube furnace usage:
Mainly used for purification of graphite powder and other high temperature treatment. Its operating temperature can reach 2800℃,
and can work continuously for a long time. Good production efficiency, energy saving. With on-line temperature measurement and
temperature control system, the temperature in the furnace can be monitored in real time and adjusted automatically.
Rated power
120KW
Input voltage
three-phase 380V
Operating temperature
2800℃
Maximum temperature
3000℃
The protective gas
argon
Temperature control mode
PID automatic control
Temperature measurement Mode
Infrared temperature measurement
Automatic feeding
by PLC program
Working mode
Push boat intermittent feeding, continuous work
The size of the boat
φ 126X320mm
Cooling mode
Circulating water cooling

Features:

1, The use of temperature up to 2800 degrees, good temperature uniformity, constant temperature area length, low failure rate of equipment operation.
2, Long service life of furnace tube, continuous production 20-30 days with the furnace.
3, With infrared temperature measurement and temperature control system, real-time display and PID automatic control of the temperature in the furnace, the product quality is stable. At the same time to ensure the requirements of the product.
4,Adopt three-phase power supply mode, three-phase power balance, stable performance. Unlike carbon tube furnace using single-phase power supply, phase voltage imbalance, impact on the power grid, affecting the operation of other equipment.
5, The use of common temperature, the temperature can reach 3000℃, can work at 2600-2800℃ for a long time
6, The use of automatic feeding device, time control in and out of the material, high degree of automation, low labor intensity of workers, product high temperature treatment time is consistent.
7, The use of carbon felt as insulation material, no use of carbon black, convenient replacement of carbon tube, while clean.
8, Using the push boat production mode, can stop the furnace continuous production. Unlike the gap type (vertical furnace) furnace, there is no need to stop every furnace, and wait for its cooling to take out the material, low production efficiency, high energy consumption.
9, The material is in the boat, the material will not appear secondary pollution.
10. The product quantity of each boat is about 1.5 kg. The product quality can be sampled and tested in time, and the process can be modified according to the test results. No need to stop the furnace, less waste of materials.
11, Short heating time, up to 200℃/ hour.
12, The furnace body sealing is good, small loss of protective gas. All flanges and furnace covers are sealed with sealing strips.
13. The tank and flange of furnace body are made of stainless steel, without rust and with long service life.
14, Equipped with a vacuum pump for the replacement of gas in the furnace, short ventilation time, less gas consumption.
Product parameter:
Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components

Title goes here.

1) The use of temperature up to 2800 degrees, good temperature uniformity, constant temperature area length, low failure rate of equipment operation.
2) Long service life of furnace tube, continuous production 20-30 days with the furnace.
3)With infrared temperature measurement and temperature control system, real-time display and PID automatic control of the temperature in the furnace, the product quality is stable. At the same time to ensure the requirements of the product.
4)Adopt three-phase power supply mode, three-phase power balance, stable performance. Unlike carbon tube furnace using
single-phase power supply, phase voltage imbalance, impact on the power grid, affecting the operation of other equipment.
Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components

Title goes here.

5) The use of common temperature,
the temperature can reach 3000℃, can work at 2600-2800℃ for a long time
6)The use of automatic feeding device, time control in and out of the material, high degree of automation, low labor intensity of workers, product high temperature treatment time is consistent.
7)The use of carbon felt as insulation material, no use of carbon black, convenient replacement of carbon tube, while clean.
8)Using the push boat production mode, can stop the furnace continuous production. Unlike the gap type (vertical furnace)furnace, there is no need to stop every furnace, and wait for its cooling to take out the material, low production efficiency,high energy consumption.
9)The material is in the boat, the
Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components

Title goes here.

material will not appear secondary pollution.
10)The product quantity of each boat is about 1.5 kg. The product quality can be sampled and tested in time, and the process can be modified according to the test results. No need to stop the furnace, less waste of materials.
11)Short heating time, up to 200℃/ hour.
12)The furnace body sealing is good, small loss of protective gas. All flanges and furnace covers are sealed with sealing
strips.
13)The tank and flange of furnace body are made of stainless steel, without rust and with long service life.
14, Equipped with a vacuum pump for the replacement of gas in the furnace, short ventilation time, less gas consumption.
Company Profile
Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components
Our company philosoph:
We are not your supplier,but your parter and supply the whole thermal treatment furnace solutions with strong R&D research team,stable supply chain with 14+ years experience under the strict ISO9001:2015 quality management system.
The State Intellectual Property Office of the People's Republic of China (SIPO), in accordance with the Patent Law of the People's Republic of China, examined and granted our patent rights:
Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components

Patent for high temperature graphitization furnace:

Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components

Patent for high temperature vacuum hot pressure furnace:

Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components

Patent for high temperature continuous furifing graphitization furnace:

Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components

Patent for carbonization sintering furnace:

Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components

Patent for bottom discharge graphitization furnace:

Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components

Patent for carbon fiber continuous furnace

Production process
Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components

Customer Photos
Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components
Customer cooperation cases:
Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components
Our logistics system is all around the world.
Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components
Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components
Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components

Pre-sales and After-sales Service
Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components
Factory Customized PID Automatic Control Continuous Carbon Furnace New Industrial Induction Melting Furnace Core PLC Components
FAQ

Are you a factory or trading company?

Q: Are you a factory or trading company?
A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.

Do you have customization or OEM service?

Q: Do you have customization or OEM service??
A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

What's your advantages?

Q:What's your advantages?
A:Quick response to your enquiry
High quality control
Stable supply chain in the domestic maket
Timely delivery
Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
