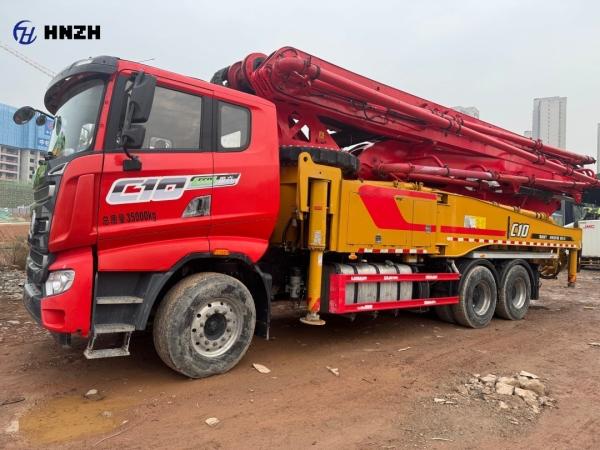

48.6m 2022 SANY Used Concrete Pump Diesel Power Type SYM5359THB 49C-10
48.6m 2022 SANY Used Concrete Pump Diesel Power Type SYM5359THB 49C-10
48.6m 2022 SANY Used Concrete Pump Diesel Power Type SYM5359THB 49C-10
48.6m 2022 SANY Used Concrete Pump Diesel Power Type SYM5359THB 49C-10
48.6m 2022 SANY Used Concrete Pump Diesel Power Type SYM5359THB 49C-10
48.6m 2022 SANY Used Concrete Pump Diesel Power Type SYM5359THB 49C-10
Specifications
Brand Name :
SANY
Model Number :
SYM5335THB 490C-10
Place of Origin :
CHINA
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10/unit/month
Delivery Time :
5 work days
Packaging Details :
N/A
Boom Vertical Height :
48.6m
Pump Type :
Hydraulic
Power Type :
Diesel
Engine Horsepower :
348/1900
Manufacture :
2022
Engine Type :
deutz
Condition :
Used
Product Brand :
SANY
Description
49m Concrete Pump Series SYM5359THB 49C-10
Model SYM5359THB 490C-10
Overall
Specification		 Length(mm) 12380
Width(mm) 2550
Height(mm) 4000
Dead Weight(kg) 35000
Boom & Outrigger Specification Vertical Reach(m) 48.6
Horizontal Reach(m) 43.6
Reach Depth(m) 30.8
Boom Section 5
Min. Unfolded Reach(m) 13.9
Rotation(°) ±360
Front Outrigger Spread L-R(mm) 9300
Rear Outrigger Spread L-R(mm) 9620
Pumping Systerm Specification Output
(m3/h)		 Low-Pressure 170
High-Pressure 120
Pressure
(MPa)		 Low-Pressure 8.3
High-Pressure 12
Max. strokes per minute (times/min) Low-Pressure 29
High-Pressure 19
Delivery Cylinder Diameter(mm) 260
Stroke Length(mm) 1900
Hydraulic System Open
Hydraulic System Oil Pressure(MPa) 32
Oil Tank Capacity(L) 680
Water Tank Capacity(L) 620
Pipe Diameter(mm) 125
End Hose Length(m) 3
End Hose Diameter(mm) 125
Chassis Specification Chassis Brand SANY
Number Of Axles 3
Engine Type D13C6-480E0
Engine Power Rating 353KW
Engine Maximum Net Power(kW/rpm) 348/1900
Emission Standard China stage ⅤI
Fuel Tank Capacity(L) 600
Displacement(L) 12.94
Max. Speed(km/h) 90
System Conditions Woking hrs 806
Pumping volume(m³) 54099
