30219 single row taper roller bearing with 95mm*170mm*34.5mm
30219 single row taper roller bearing with 95mm*170mm*34.5mm
30219 single row taper roller bearing with 95mm*170mm*34.5mm
30219 single row taper roller bearing with 95mm*170mm*34.5mm
30219 single row taper roller bearing with 95mm*170mm*34.5mm
30219 single row taper roller bearing with 95mm*170mm*34.5mm
30219 single row taper roller bearing with 95mm*170mm*34.5mm
30219 single row taper roller bearing with 95mm*170mm*34.5mm
30219 single row taper roller bearing with 95mm*170mm*34.5mm
30219 single row taper roller bearing with 95mm*170mm*34.5mm
Specifications
Place of Origin :
China
Brand Name :
HOJE or OEM
Certification :
ISO 9001:2008
Model Number :
30219
MOQ :
10 pcs
Price :
5.5$
Packaging Details :
single box
Delivery Time :
7-15 days
Payment Terms :
T/T, L/C,D/P,Western Union,Paypal,Money Gram,etc
Supply Ability :
100000 pcs/month
Description
Taper Roller Bearing 30219

30219 single row taper roller bearing with 95mm*170mm*34.5mm

Taper Roller Bearing 30219 Specifications
Designation 30219
Principle dimensions(d) 95mm
Principle dimensions(D) 170mm
Principle dimensions(T) 34.5mm
Basic load ratings(dyn.) 235kN
Basic load ratings(stat.) 296kN
Limiting speed(grease lubrication) 1900r/min
Limiting speed(oil lubrication) 2800r/min
Weight 3.15kg

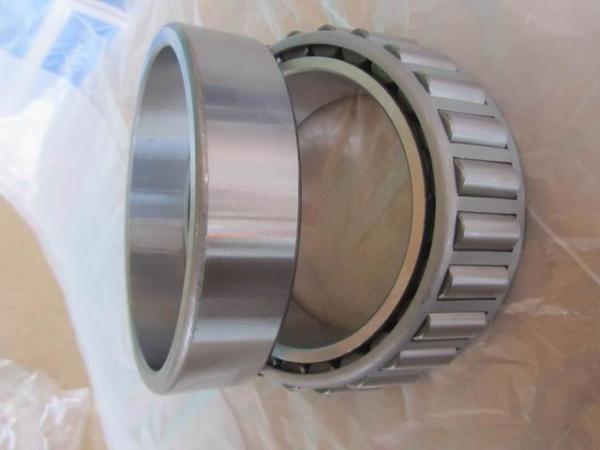

Tapered roller bearings consisting of inner ring with roller and cage assembly can be mounted separately from the cup. The projection lines of all the tapered surfaces meet at a common point on the main axis of the bearing. The rollers are guided by the cone (inner ring) back-face rib.The design of tapered roller bearing can support a combined radial and axial load. The larger the half angles of these cones, the larger the axial force that the bearing can sustain. Internal clearance for this bearing type is established during mounting by the axial position of the cone relative to the cup.
