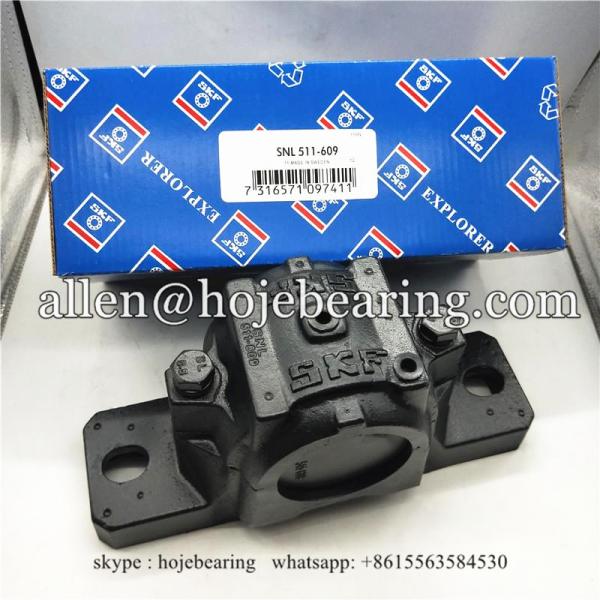

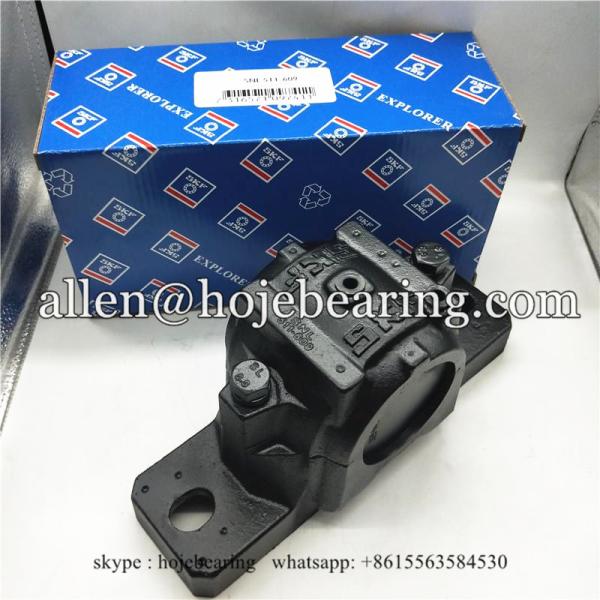

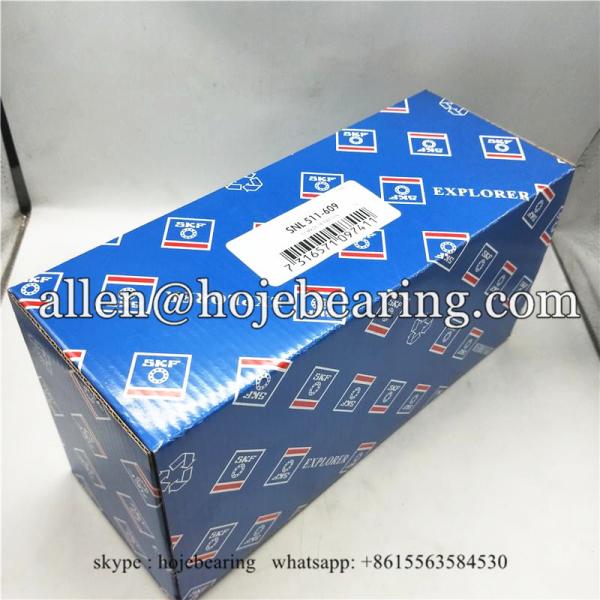

SKF SNL 511-609 Shaft 50 mm Split Die-Cast Plummer Block Housing
SKF SNL 511-609 Shaft 50 mm Split Die-Cast Plummer Block Housing
SKF SNL 511-609 Shaft 50 mm Split Die-Cast Plummer Block Housing
SKF SNL 511-609 Shaft 50 mm Split Die-Cast Plummer Block Housing
SKF SNL 511-609 Shaft 50 mm Split Die-Cast Plummer Block Housing
SKF SNL 511-609 Shaft 50 mm Split Die-Cast Plummer Block Housing
Specifications
Brand Name :
SKF
Model Number :
SNL511 609
Place of Origin :
GERMANY
MOQ :
1 pcs
Price :
usd 20-30 /pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pcs/month
Delivery Time :
3-5 days
Packaging Details :
single box
Type :
Plummer Block Housing
Service :
OEM Customized Services
Feature :
Compact structure
Application :
Machinery
Housing material :
Cast Iron HT200
Product name :
SKF SNL 511-609
Main market :
Europe,America,Europe America Africa,Global,Middle East
Weight :
4.4 kg
Sample :
available
Color :
White Black Green
Description

SKF SNL 511-609 Split Die-Cast Plummer Block Housing

Housing Dimensions (mm)
A: 95mm
A1: 70mm
H: 128mm
H1: 70mm
H2: 28mm
J: 210mm
L: 255mm
N: 24mm
N1: 18mm
G: 16mm

Bearing seating
Ca: 44mm
Da: 100mm

Mass: 4,40kg

Appropriate bearings and associated components
1211 EKTN9 Self-aligning ball bearing
H211 Adapter sleeve
FRB 11.5/100 Locating rings 2 per housing

2211 EKTN9 Self-aligning ball bearing
H311 Adapter sleeve
FRB 9.5/100 Locating rings 2 per housing

22211 EK Spherical roller bearing
H311 Adapter sleeve
FRB 9.5/100 Locating rings 2 per housing

BS2-2211-2CSK/VT143 Sealed spherical roller bearing
H311 E Adapter sleeve
FRB 6.5/100 Locating rings 2 per housing

C2211 KTN9 CARB Toroidal roller bearing
H311 E Adapter sleeve
FRB 9.5/100 Locating rings 2 per housing

Seals
TSN511 L Four-lip seals
TSN511 A V-ring seals
TSN511 C Felt ring seals
TSN511 S Labyrinth seals
TSN511 ND Taconite heavy-duty seals

End cover
ASNH511-609

SKF Split Die-Cast Plummer Block Housing :

SNL 505 SNL 509 FSNL 513-611 SNL 518-615
SNL 506-605 SNL 511-609 SNL 513-611 FSNL 515-612
SNL 505 FSNL 511-609 FSNL 512-610 SNL 515-612
SNL 506-605 SNL 509 SNL 512-610 SNL 518-615
SNL 506-605 FSNL 511-609 SNL 515-612 FSNL 518-615
SNL 507-606 SNL 511-609 FSNL 515-612 FSNL 515-612
SNL 506-605 SNL 510-608 SNL 512-610 SNL 515-612
SNL 507-606 FSNL 512-610 FSNL 512-610 FSNL 518-615
SNL 506-605 SNL 512-610 FSNL 515-612 SNL 518-615
SNL 507-606 SNL 510-608 SNL 515-612 SNL 516-613
SNL 507-606 SNL 512-610 FSNL 513-611 FSNL 516-613
SNL 508-607 FSNL 512-610 SNL 513-611 SNL 519-616
SNL 507-606 SNL 510-608 SNL 516-613 FSNL 519-616
SNL 508-607 FSNL 512-610 FSNL 516-613 SNL 516-613
SNL 507-606 SNL 512-610 SNL 513-611 FSNL 516-613
SNL 508-607 SNL 511-609 FSNL 513-611 SNL 519-616
SNL 508-607 FSNL 511-609 SNL 516-613 FSNL 519-616
SNL 510-608 SNL 513-611 FSNL 516-613 SNL 516-613
SNL 508-607 FSNL 513-611 SNL 513-611 FSNL 516-613
SNL 510-608 SNL 511-609 FSNL 513-611 FSNL 519-616
SNL 508-607 FSNL 511-609 FSNL 516-613 SNL 519-616
SNL 510-608 SNL 513-611 SNL 516-613 FSNL 517
SNL 509 FSNL 513-611 SNL 515-612 SNL 517
SNL 511-609 FSNL 511-609 FSNL 515-612 FSNL 520-617
FSNL 511-609 SNL 511-609 FSNL 518-615

SNL 520-617

SKF SNL 511-609 Shaft 50 mm Split Die-Cast Plummer Block HousingSKF SNL 511-609 Shaft 50 mm Split Die-Cast Plummer Block Housing
