4K 20000 Lumen Outdoor Video Projector Ansi Native Laser Tv Active 3d Projector Beamer 4k
4K 20000 Lumen Outdoor Video Projector Ansi Native Laser Tv Active 3d Projector Beamer 4k
4K 20000 Lumen Outdoor Video Projector Ansi Native Laser Tv Active 3d Projector Beamer 4k
4K 20000 Lumen Outdoor Video Projector Ansi Native Laser Tv Active 3d Projector Beamer 4k
4K 20000 Lumen Outdoor Video Projector Ansi Native Laser Tv Active 3d Projector Beamer 4k
4K 20000 Lumen Outdoor Video Projector Ansi Native Laser Tv Active 3d Projector Beamer 4k
4K 20000 Lumen Outdoor Video Projector Ansi Native Laser Tv Active 3d Projector Beamer 4k
4K 20000 Lumen Outdoor Video Projector Ansi Native Laser Tv Active 3d Projector Beamer 4k
Specifications
Brand Name :
SMX
Model Number :
MX-VL820U
Certification :
RoHS&CE
Place of Origin :
China
MOQ :
1pc
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces Per Month
Delivery Time :
10 work days
Packaging Details :
carton
Brightness :
20000 Lumens
Resolution :
WUXGA (1920 x 1200)
Contrast Ratio :
3,000,000:1
Light source :
NICHIA LASER
Feature :
Internet Ready, Built-In Speakers
Laser Life time :
30000hrs
Throw Ratio :
1.24-2.01
Display Technology :
Liquid Crystal Display
Screen size :
60-500 inch
Aspect Ratio :
Native:16:10 Compatible: 4:3/16:9/normal/16:6
MAX Dimensions (WxHxD mm) :
599X240.2X493.8mm (not including len)
Net. Weight (KG) :
28.9Kg (not including len)
Description

2024 New 4K Projector 20000 Lumen Outdoor Video Ansi Native Laser Tv Active 3d Projector Beamer 4k

Specification for 8200 Lumen Laser Projector

Laser projectors are most valuable for their efficiency, as they fully utilize their light output and therefore do not need as
many resources in order to run. This means using less electricity, producing less heat, and even removing the heating period that some projectors need to start their operation.

With real 20000 lumens, Full HD WUXGA resolution, and 4K enhancement technology, the MX-VL820U produces sharp, lifelike images for an exceptional widescreen display.

Features

◆ 3LCD tech, 3000,000 hours Led Lamp of real life time
◆ High brightness 20000 Lumens
◆ High contrast (3000000:1)
◆ Multiple Interfaces (HDMI, USB-A, HD BaseT, VGA, 3.5mm, RS232, RJ45, USB-B)
◆ V&H:±30°/Pincushion/Barrel Correction 6 Corner Geometry correction 4 Corner Correction/Grid image tune
◆ Optional Resolution: WUXGA/WXGA/XGA, all support 4K
◆ Aspect ratio: 16:9/16:10/4:3
◆ Support Mirror&Wireless&Airplay etc.
◆ Best picture quality
◆ 360° projection

Hex Correction & Multi-Point Correction

Horizontal & vertical trapezoidal correction, as well as hexagonal correction, pillow/barrel distortion correction, and multi-point trapezoidal correction. The easy adjustment operation ensures that the user obtains the best imaging effect on all kinds of irregular projection surfaces.

5000000:1 Dynamic Contrast Ratio

Ensure that every detail of the screen, including the dark part of the screen can also fully express its level, to bring you a
rich and delicate visual enjoyment. rich and delicate visual enjoyment.

4K 20000 Lumen Outdoor Video Projector Ansi Native Laser Tv Active 3d Projector Beamer 4k

Optical Zoom, Lens Shift, More Convenient Installation and Debug

The projector has a lens shift function that allows for non-destructive panning of the image through the menu, allowing the user to easily The projector has a lens shift function that allows for non-destructive panning of the image through the menu, allowing the user to easily adjust the projected image position. The maximum adjustment range is 60% (upward) in the vertical direction and ±29% in the horizontal direction. The maximum vertical adjustment range is 60% (upward) and the maximum horizontal adjustment range is ±29%.

Optical Zoom, Lens Shift, More Convenient Installation and Debug

The projector has a lens shift function that allows for non-destructive panning of the image through the menu, allowing the user to easily The projector has a lens shift function that allows for non-destructive panning of the image through the menu, allowing the user to easily adjust the projected image position. The maximum adjustment range is 60% (upward) in the vertical direction and ±29% in the horizontal direction. The maximum vertical adjustment range is 60% (upward) and the maximum horizontal adjustment range is ±29%.

Physical Display

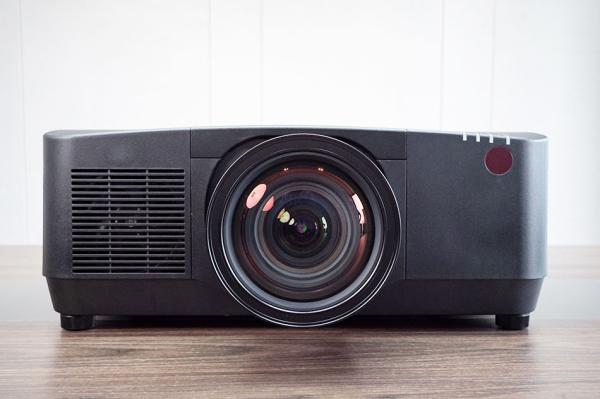

SMX 20000 Lumen 3LCD Laser Projector
Model 　Model# MX-X20000U　
Key parts 　 　
　 Light source Laser
Mainchip Topaz Prime PWC895
Brightness 　 　
　 Brightness(Lumen) 20,000
Overall Spec 　 　
Panel Display Panel 3x1.0"
Display Technology Liquid Crystal Display
Native Resolution WUXGA (1920 x 1200)
Laser
Life time		 Normal mode 20000hrs
ECO mode 30000hrs
Projection Lens Len Model MX-EG12ZLM
Image Circle Φ37.9
Lens Type Zoom Lens ST1
Zoom/Focus Motorized
F#(Wide-Tele) 1.80-2.24
f(mm) 27.7-44.3
Throw Ratio(16:10) 1.24-2.01
Zoom Ratio 1.62
Screen size
(Performance guarantee range)		 60-500 inch
(80-500 inch)
Lens Shift V ±65%
Lens Shift H ±25%
CR Contrast Ratio(Min) 3,000,000:1
Noise Noise(dB) Full: 46db
Normal: 44db
Eco1: 43db
Eco2: 42db
Uniformity Uniformity TYP:90%
AR Aspect Ratio Native:16:10
Compatible: 4:3/16:9/normal/16:6
Terminal(I/O port) 　 　
Input VGA *1
HDMI 1.4(IN) *2
USB-A *1
USB-B *1 (Display)
RJ45 *1 (Display)
DVI-D *1
HD BaseT *1
HD-SDI (3G-SDI) Optional
Audio in
(mini jack,3.5mm)		 *1 (VGA/DVI-D share)
DMX512 *1
　 HDMI 1.4(OUT) *1
Audio out
(mini-jack,3.5mm)		 *1
Control RS232C (Input) *1
RS232C (Output) *1
Wired Remote(IN) *1
Wired Remote(OUT) *1
General Spec 　 　
Audio Speaker N/A
Power
Consumption		 Power Requeirements 100~240V@ 50/60Hz
Power Consumption
(Full) (Max)		 1155W
Power Consumption
(Normal) (Max)		 1000W
Power Consumption
(ECO1) (Max)		 825W
Power Consumption
(ECO2) (Max)		 580W
ECO Standby Mode
Power Consumption		 <0.5W
