358 Wire Mesh Clearview Metal Steel Outdoor Clear Security Fence Panels Clear View
358 Wire Mesh Clearview Metal Steel Outdoor Clear Security Fence Panels Clear View
358 Wire Mesh Clearview Metal Steel Outdoor Clear Security Fence Panels Clear View
358 Wire Mesh Clearview Metal Steel Outdoor Clear Security Fence Panels Clear View
358 Wire Mesh Clearview Metal Steel Outdoor Clear Security Fence Panels Clear View
358 Wire Mesh Clearview Metal Steel Outdoor Clear Security Fence Panels Clear View
358 Wire Mesh Clearview Metal Steel Outdoor Clear Security Fence Panels Clear View
358 Wire Mesh Clearview Metal Steel Outdoor Clear Security Fence Panels Clear View
358 Wire Mesh Clearview Metal Steel Outdoor Clear Security Fence Panels Clear View
358 Wire Mesh Clearview Metal Steel Outdoor Clear Security Fence Panels Clear View
358 Wire Mesh Clearview Metal Steel Outdoor Clear Security Fence Panels Clear View
358 Wire Mesh Clearview Metal Steel Outdoor Clear Security Fence Panels Clear View
Specifications
Brand Name :
Bending fence
Model Number :
GF081
Place of Origin :
Hebei Anping
MOQ :
100sets
Price :
13-45dollors
Payment Terms :
L/C, T/T
Supply Ability :
5000sets/month
Delivery Time :
20-25days
Packaging Details :
1,Panels in Wooden Pallet; 2,Post with Bubble Film; 3,Accessories in Carton Box.
Color :
Black, Green，Grey
Height :
2m-3m
Installation :
Easy to installation
Material :
Steel
MeshSize :
76.2*12.7mm，76*12mm
Post Distance :
2.5m 2.0m
PostSize :
60x60mm.50*50mm
PostThickness :
2.5mm
SurfaceTreatment :
Hot-dipped Galvanized
Warranty :
10 Years
Width :
2.5m
WireDiameter :
3.0mm 4.0MM
Description

Product Introduction

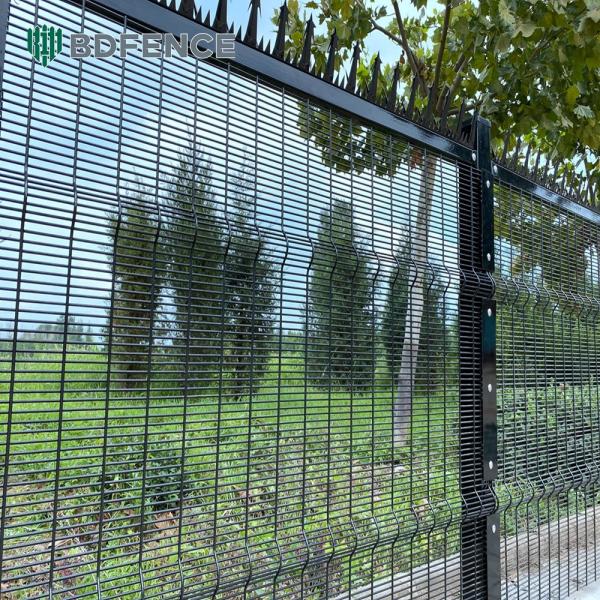

358 Security Fence, also called Anti climb fence, is the ultimate welded mesh system providing a high degree protection and discreet visual impact on the immediate environment.

* Material: Q195, steel wire

* Surface treatment:

I. Black wire welded mesh + pvc coated;

II. Galvanized welded mesh + pvc coated;

III. Hot dipped galvanized welded mesh + pvc coated.

(PVC coated colors: dark green, light green, blue, yellow, white, black, orange and red, etc.)

358 Wire Mesh Clearview Metal Steel Outdoor Clear Security Fence Panels Clear View

358 Wire Mesh Clearview Metal Steel Outdoor Clear Security Fence Panels Clear View

Surface Treatment :

- Hot-Dipped Galvanized After Welding - Electric Galvanized Then PVC Coated - Electric Galvanized Then Powder Coated

358 Wire Mesh Clearview Metal Steel Outdoor Clear Security Fence Panels Clear View358 Wire Mesh Clearview Metal Steel Outdoor Clear Security Fence Panels Clear View

Specifications for 358 Security Fence:

*Specifications as follow:

ANTI CLIMB FENCE
Panel height 2100mm 2400mm 3000mm
Fence height 2134mm 2438mm 2997mm
Panel width 2515mm 2515mm 2515mm
Hole size 12.7mm×76.2mm 12.7mm×76.2mm 12.7mm×76.2mm
Horizontal wire 4mm 4mm 4mm
Vertical wire 4mm 4mm 4mm
Panel weight 50kg 57kg 70kg
Post 60×60×2mm 60×60×2mm 80×80×3mm
Post length 2.8m 3.1m 3.1m
Clamp bar 40×6m slotted 40×6m slotted 40×6m slotted
Fixings 8 gal bolt c/w permanent security nut
No. of fixings 8 9 11
Customization accepted


Production Flow:

Material - Straighten & cut short - Welding - Making Curves - Parkerising & Powder coating - Packaging - Container Loading

358 Wire Mesh Clearview Metal Steel Outdoor Clear Security Fence Panels Clear View

Application

358 Wire Mesh Clearview Metal Steel Outdoor Clear Security Fence Panels Clear View

358 Wire Mesh Clearview Metal Steel Outdoor Clear Security Fence Panels Clear View

358 Wire Mesh Clearview Metal Steel Outdoor Clear Security Fence Panels Clear View

Quality Control Experts

358 Wire Mesh Clearview Metal Steel Outdoor Clear Security Fence Panels Clear View

358 Wire Mesh Clearview Metal Steel Outdoor Clear Security Fence Panels Clear View

Packaging & Container Loading
Packaging for 358 Security Fence And Accessories:
Fence packaging
<1>Plastic film at the bottom to avoid the panel be destroyed
<2>4 metal corners to ensure the panel strong and uniform
<3>wood plate at the top of pallet to keep the under panel
<4>pallet tube size:40*80mm tubes at the botom vertical position

358 Wire Mesh Clearview Metal Steel Outdoor Clear Security Fence Panels Clear View

Post & Accessories packaging

Post:
<1>The caps have been installed on the top of post, which reduce your labor cost and installing time <2> Each post are packed by a long plastic bag avoiding damaged by friction <3>All posts are packed by metal pallet for loading and unloading
Accessories: Clips and screws are packed by sets, plastic film + carton box. Carton Box Dimensions: 300*300*400m

358 fence Installation is simple and easy. They come complete with panels, posts, post caps, U-clips, bolts and nuts in either hot dip galvanised and or powder coated in colour. Steel posts are pre-drilled and ready for
assembly on site. For fence height more than 2.4 m, we suggest "Multi-lift erection system" where one or more panels are placed on top of the bottom panel.

358 Wire Mesh Clearview Metal Steel Outdoor Clear Security Fence Panels Clear View
Company Information
Hebei Bending Fence Technology Co.,Ltd was founded in 1992 as a manufacturer of wide variety metal fences. We engaged in the production, research, development, sales, and services of metal fences, gates, and barriers.
BD FENCE spent more than 3 decades of experience providing fencing solutions, we gain enough knowledge on how to produce top-quality fencing which led us to become a trusted supplier & exporter globally.
As one of the manufacturing pioneers in metal fencing solutions. We also accept customizing metal fences with excellent quality. With professional experience in the metal fence business, our skilled staff members are able to provide the highest level of support, including drafting and engineering of our products. In order to meet our clients’ project requirements.
358 Wire Mesh Clearview Metal Steel Outdoor Clear Security Fence Panels Clear View
What clients said about BD Fence.
358 Wire Mesh Clearview Metal Steel Outdoor Clear Security Fence Panels Clear View

Our Service
1.Our products offer 10 YEARS GUARANTEE.
2. Product customization services
We can customize products according to your requirements, including design and drawing.
3. After-sales service
Our after-sales service start immediately after signing the contract.
3.1. No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.
3.2. The third-party inspection always gets real and true data from us and we will send production photos to customers if there is no inspection from the third-party.
3.3. Do our best to help customer arrange the shipment and customs clearance.
3.4. Full information for installation, maintenance and repair instructions .

FAQ
1.Are you a factory?
Answer:yes,we are a factory that manufactured fence for 32 years.
2.Can you send the cargo to seaport? Where is your nearest sea port?
Answer:yes, sure ,our nearest seaport is Xingang Port.
3.How about the height fence?
Answer:The height is about 2m, but we accept all customized size,you can let us know the height and the length, then we can make design and calculate the prices.
4.Can I have more details of the fence, such as real picture and the accessories?
Answer: yes, sure, please contact us,we will send you drawing and the details parts pictures.
5.Can you make the color according to our request?
Answer: yes,we can ,the common color is Green,Yellow,White,Gray. More Questions If you have more question, please contact us for best service Contact Now
6.How long does it take to produce?
3 to 4 weeks is the delivery time range depending on the model and quantity of the fence.
7.Do I need to hire a professional installer for my metal fence?
All of our metal fences are very easy to install. Aside from its easy installation, we also provide an installation guide. That’s why you can even install it by yourself.
