Energy Saving Hydraulic Injection Moulding Machine For Luggage Handle Grips

Specifications

Brand Name :

Hommar

Model Number :

HM-55T-CAH

Certification :

CE,RoHS

Place of Origin :

China

MOQ :

Price :

USD 49000-79000/pcs

Payment Terms :

T/T, L/C, Western Union, MoneyGram

Supply Ability :

200 pcs per month

Delivery Time :

35-45 working days

Packaging Details :

No-solid wooden box

Machine Name :

Spinner Luggage Pull Handle Machine

Screw Diameter :

32mm

Handle Material :

PVC

Adantage :

Engery Saving

Features :

Space Saving

Speciality :

Easy to put metal part and pick out moldings

Description

Spinner Luggage Pull Handle Hydraulic Injection Moulding Machine,Luggage Handle Grips Machine

energy saving vertical injection molding machine
1. shortening plasticizing time and save energy by adopting servo motor of high torque and high efficiency.
2. servo motor of steady performance,equiped with pressure feedback device of high sensitive and precision,which forms closed loop exact control.reduce the cycle time and improve the productivity.
3. while improving the injection precision,it saves electricity and water and lower the noise by a great degree.it is a innovation in the history of hydraulic injection press.

What Spinner Luggage Pull Handle Machine Can Do ?

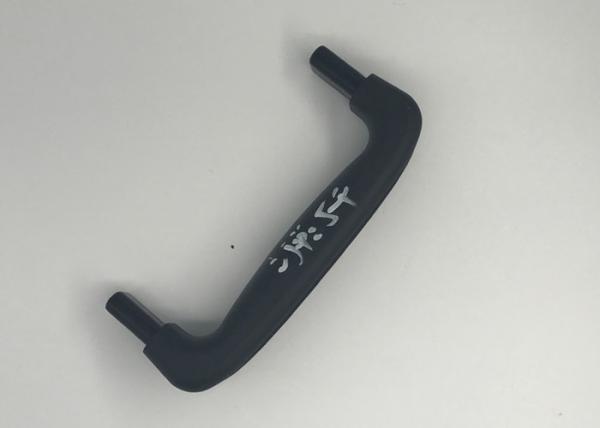

PVC Luggage Handle

Swiss Suitcase Handle

Soft Luggage Handle

Travel Suitcase Handle

PP Suitcase Handle

PVC or PP with Metal Suitcase Handle

Business Suitcase Handle

Luggage Pull Handle

Carrying Pull Handle

Strap Handle Grip

Feature of Spinner Luggage Pull Handle Machine

This machine is equipped with world up-class components.It performs stable and lasting.

No troubles or break or broken in 5-10 years.

Technicial Parameters:

Injection Unit	Screw Diameter	mm	28-36
	Screw Stroke	mm	140
	Shot Volume	cm³	86-142
	Injection Weight	g/oz	80/2.8-132/4.6
	Plasticizing Capacity	g/s	8.2-16.5
	Max. Injection Pressure	kgf/cm²	2170-1312
	Injection Rate	cm³/s	63-105
	Injection Speed	mm/s	103
	Screw Speed	r.p.m.	0-240
	Nozzle Force	tf	4.8
	Nozzle Ejection Stroke	mm	45 or more
Clamping Unit	Clamping Force	tf	55
	Opening Force	tf	8.4
	Clamping Stroke	mm	200
	Min. Mold Height	mm	180
	Max. Distance	mm	380
	Distance between Columns	mm	445*255
	Max. Mold Size	mm	400*400
	Platens Size	mm	580*400
	Ejector Stroke	mm	40
	Ejector Force	tf	1.75
	Qty of ejector	pcs	1
	System Pressure	kgf/cm²	140
Other	Oil Tank Cpacity	L	140
	Motor Power	KW	7.5
	Heater Power	KW	5.5
	Temperature Stage		2+1
	Working Table Height	mm	977
Dimensions	Machine Size	mm	186012652945
	Weight	T	1.6
	Packing Size	mm	20501500200
	Packing Weight	T	1.8

Components List

Item	Item Name	Brand	Original of Country
1	PLC	DIHZHOU	TAIWAN
2	Screw and barrel	HUAYE	CHINA
3	Electric motor	Universal	CHINA
4	Seal kit	HALLITE	United Kingdom
5	Solenoid valves	Yuken	Taiwan
6	Proporional valves	Yuken	Taiwan
7	Hydraulic motor	White	United States
8	Linear Scale	Gefran	Italy
9	Gear pump	Eckerle	Germany
10	Electrical Connectors	Schneider	France
11	Tie bar	Genaral	Taiwan
12	Heater bands	Schneider	France

Accessory List

1	Injection Machine	x	1
2	Mold	x	1
Optional Accessories(Charged)
1	Water Chiller	x	1
2	Grinder	x	1
3	Blender	x	1
4	Dryer	x	1
5	Loading machine	x	1
6	Honeycomb Dehumidifiers	x	1
7	Mold Temperature Controller	x	1

Price List

QTY=1 set	17500-19500	USD/set	FOB Shenzhen
QTY=2-5 set	2-3% off	USD/set	FOB Shenzhen
QTY=6-10 set	5-7% off	USD/set	FOB Shenzhen
More	Negotiable

After-sales service

QTY=1 PCS, online technical support

QTY=2-4 PCS, our techincians on site but tickets, hotel and food are borne by you and labor fee 100 USD/day/person

QTY=5-6 PCS, techincians on site , labor free but hotel and food are borne by you.

View video on Youtube

More Details of Our Machine VS others'

PLC: Our machine is equipped with DIHZHOU (Taiwan) while others' is equipped with Percheson (Shenzhen, China).DIHZHOU PLC responds faster and control more precise.
