24 Cavities Multi Color Injection Molding Machine For Plastic Toys Figurine
24 Cavities Multi Color Injection Molding Machine For Plastic Toys Figurine
24 Cavities Multi Color Injection Molding Machine For Plastic Toys Figurine
24 Cavities Multi Color Injection Molding Machine For Plastic Toys Figurine
24 Cavities Multi Color Injection Molding Machine For Plastic Toys Figurine
24 Cavities Multi Color Injection Molding Machine For Plastic Toys Figurine
24 Cavities Multi Color Injection Molding Machine For Plastic Toys Figurine
24 Cavities Multi Color Injection Molding Machine For Plastic Toys Figurine
Specifications
Brand Name :
Hommar
Model Number :
HM-1202C-TO
Certification :
RoHS,CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
200 pcs per month
Delivery Time :
35-45 working days
Packaging Details :
No-solid wooden box
Machine Name :
Plastic Injection Moulding Machine
Grip Material :
PVC, TPE, ABS, Nylon
Colors :
2 Colors
Capacity :
24 pcs
Clamping force :
120 Ton
Warranty :
1 year
Description

Multi Colors Plastic Toys Figurine Injection Molding Machine, 24 Cavities

Vertical injection molding machine for small occupation position, low energy consumption, embedment is widely used, but the clamping force, the machine height is subsequently heighten, especially vertical clamping type vertical injection molding the whole set of machine, factory should not only have the high and should match the corresponding height of workbench, operation is not convenient, also make the production environment is conditioned by many of the machine. linkage clamping vertical injection molding machine series, fundamentally solved this difficult problem, effectively reduce the height of the workbench face and the whole machine, so that every breakthrough because of the interference problem of vertical injection molding machine industry for many years, promote new injection molding industry reform.
Hommar equipment structure: vertical injection molding machine for vertical clamping structure, vertical injection, the double location skateboarding workbench. Machine operation, the two lower die with a mold on the alternate assignments, a forming mold, a mold take put out, greatly facilitate the placement of the filter paper, improve the efficiency by more than 30%, and more job security.

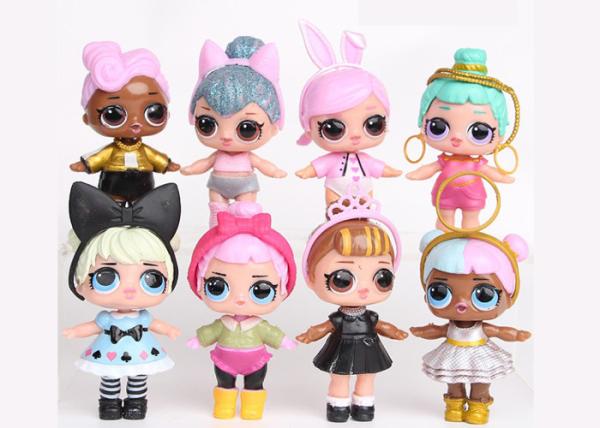

Plastic Toys Figurine Injection Molding Machine can do

Plastic Toys Figurine

Multi colors Toys Figurine

ABS+PVC Toy Figurine

Nylon+TPE Toy Figurine

Features:

1 Make TWO COLORS toy figurine at the same time
2 Full Automatical,no need labor,can work 7 days,24 hrs
3 High efficiency,cycle time 24s, 2 cavities
4 Servo motor equiped, saving power by 60%
5 One stop purchase ,a whole set Solution
6 On Site Technical Support and Romate Technical Support


Technical Parameters:

Injection Unit
Screw Diameter mm 42
Screw Stroke mm

160
Shot Volume cm3 221
Injection Weight g/oz 206/7.3
Plasticizing Capacity g/s 22
Max. Injection Pressure kgf/cm2 1428
Injection Rate cm3/s 138-110
Injection Speed mm/s 100-80
Screw Speed r.p.m. 0-250,0-200
Nozzle Force tf 2.4
Nozzle Ejection Stroke mm 45 or more
Clamping Unit
Clamping Force tf 120
Opening Force tf

26
Clamping Stroke mm 250
Min. Mold Height mm 210
Max. Distance mm 460
Distance between Columns mm 990*405
Max. Mold Size mm 300*250
Platens Size mm 1235*650
Ejector Stroke mm 65
Ejector Force tf 17.2
Qty of ejector pcs 1*2
System Pressure kgf/cm2 140
General
Oil Tank Cpacity L 340
Motor Power KW 14+18.5
Heater Power KW 4.2*2
Temperature Stage 4*2
Working Table Height mm 1200
Dimensions
Machine Size mm 1920*2080*3600
Weight T 7.1
Packing Size mm 2100*2200*2000+1500*1100*1700
Packing Weight T 7.8

Key parts List

Item Item Name Brand Original of Country
1 PLC DIHZHOU TAIWAN
2 Screw and barrel HUAYE CHINA
3 Electric motor Universal CHINA
4 Seal kit HALLITE United Kingdom
5 Solenoid valves Yuken Taiwan
6 Proporional valves Yuken Taiwan
7 Hydraulic motor White United States
8 Linear Scale Gefran Italy
9 Gear pump Eckerle Germany
10 Electrical Connectors Schneider France
11 Tie bar Genaral Taiwan
12 Heater bands Schneider France

Accessory List

1 Injection Machine x 1
2 Robot x 2
3 Mold x 2


Optional Accessories(Charged)
1 Water Chiller x 1
2 Grinder x 1
3 Blender x 1
4 Dryer x 1
5 Loading machine x 1
6 Honeycomb Dehumidifiers x 1
7 Mold Temperature Controller x 1

Price List

QTY=1 set 69000-79000 USD/set FOB Shenzhen
QTY=2-5 set 2-3% off USD/set FOB Shenzhen
QTY=6-10 set 5-7% off USD/set FOB Shenzhen
More Negotiable

After-sales service

QTY=1 PCS,online technical support

QTY=2-4 PCS,our techincians on site but tickets, hotel and food are borne by you and labor fee 100 USD/day/person

QTY=5-6 PCS,techincians on site ,labor free but hotel and food are borne by you.

View video on Youtube

More Details

2 Robots for Plastic Toys Figurine Injection Molding Machine

24 Cavities Multi Color Injection Molding Machine For Plastic Toys Figurine

Customer's Workshop

4 sets of 2 colors Plastic Toys Figurine Injection Molding Machine

24 Cavities Multi Color Injection Molding Machine For Plastic Toys Figurine
