85T 3 Stations Plastic Injection Moulding Machine 4 Cavities For LED Lamp Housing
85T 3 Stations Plastic Injection Moulding Machine 4 Cavities For LED Lamp Housing
85T 3 Stations Plastic Injection Moulding Machine 4 Cavities For LED Lamp Housing
85T 3 Stations Plastic Injection Moulding Machine 4 Cavities For LED Lamp Housing
85T 3 Stations Plastic Injection Moulding Machine 4 Cavities For LED Lamp Housing
85T 3 Stations Plastic Injection Moulding Machine 4 Cavities For LED Lamp Housing
85T 3 Stations Plastic Injection Moulding Machine 4 Cavities For LED Lamp Housing
85T 3 Stations Plastic Injection Moulding Machine 4 Cavities For LED Lamp Housing
Specifications
Brand Name :
Hommar
Model Number :
HM-85T-3RL
Certification :
RoHS,CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
200 pcs per month
Delivery Time :
35-45 working days
Packaging Details :
No-solid wooden box
Machine Application :
LED Lamp Housing
Base Material :
PBT+fiberglass and Aluminum
Working Staion :
3 stations
Cycle time :
20-25 seconds
Mold :
4 Cavities
Mold Type :
Hot Runner
Description

85T 3 Stations Automatic Injection Moulding Machine 4 Cavities For LED Lamp Housing

What can Automatic Injection Moulding Machine 4 Cavities For LED Lamp Housing do ?

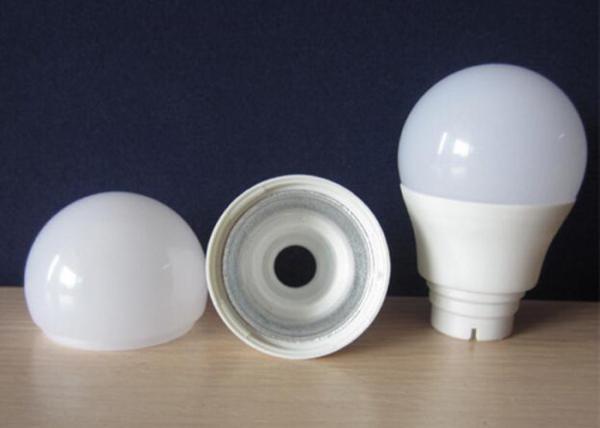

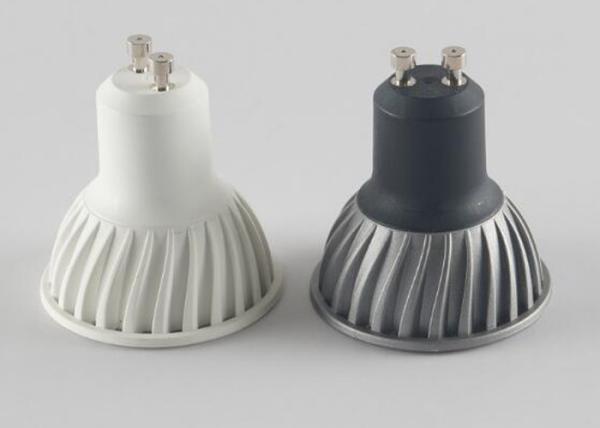

LED Lighting Housing

LED Residential Lighting Housing

LED Bulb Lights Housing

LED Lighting Housing Housing

Features and Advantages

Safty,Vertically Close the mold

High efficiency, 20-25 seconds one cycle, less 5 seconds than others' machine at least

High Productivity, 4 cavities

Automatically, loading and unloading by robots

Energy saving, servo motor is equipped,saving energy by up to 70%

This 85T machine with 3 stations is specially suitable for startup or mold makers.

Technical Parameters:

Injection Unit
Screw Diameter mm 36-40
Screw Stroke mm

140
Shot Volume cm3 142/176
Injection Weight g/oz 132-164/4.6-5.86
Plasticizing Capacity g/s 20.6-26.8
Max. Injection Pressure kgf/cm2 1842-1492
Injection Rate cm3/s 109-134
Injection Speed mm/s 107
Screw Speed r.p.m. 0-300
Nozzle Force tf 5.3
Nozzle Ejection Stroke mm 45 or more
Clamping Unit
Clamping Force tf 85
Opening Force tf

10.4
Clamping Stroke mm 250
Min. Mold Height mm 230(330)-170(270)
Max. Distance mm 480(580)-420(520)
Distance between Columns mm -------
Max. Mold Size mm 370*370
Platens Size mm Diameter : 980
Ejector Stroke mm 100
Ejector Force tf 4.6
Qty of ejector pcs 3
System Pressure kgf/cm2 140
General
Oil Tank Cpacity L 310
Motor Power KW 11
Heater Power KW 6.4
Temperature Stage 3+1
Working Table Height mm 1180
Dimensions
Machine Size mm 2145*1772*3500
Weight T 4.2
Packing Size mm 2300*1900*2000+1500*1100*1700
Packing Weight T 4.8

Key parts List

Item Item Name Brand Original of Country
1 PLC DIHZHOU TAIWAN
2 Servo Motor INNOVANCE CHINA
3 Screw and barrel HUAYE CHINA
4 Electric motor Universal CHINA
5 Seal kit HALLITE United Kingdom
6 Solenoid valves Yuken Taiwan
7 Proporional valves Yuken Taiwan
8 Hydraulic motor White United States
9 Linear Scale Gefran Italy
10 Gear pump Eckerle Germany
11 Electrical Connectors Schneider France
12 Tie bar Genaral Taiwan
13 Heater bands Schneider France

Accessory List

1 Injection Machine x 1
2 Robot x 2
3 Mold x 2


Optional Accessories(Charged)
1 Water Chiller x 1
2 Grinder x 1
3 Blender x 1
4 Dryer x 1
5 Loading machine x 1
6 Honeycomb Dehumidifiers x 1
7 Mold Temperature Controller x 1

Price List

QTY=1 set 39000-59000 USD/set FOB Shenzhen
QTY=2-5 set 2-3% off USD/set FOB Shenzhen
QTY=6-10 set 5-7% off USD/set FOB Shenzhen
More Negotiable

After-sales service

QTY=1 PCS,online technical support

QTY=2-4 PCS,our techincians on site but tickets, hotel and food are borne by you and labor fee 100 USD/day/person

QTY=5-6 PCS,techincians on site ,labor free but hotel and food are borne by you.

View video on Youtube

Sample Machines

85T 3 Stations Plastic Injection Moulding Machine 4 Cavities For LED Lamp Housing

Exhibiton Show at Chinaplas 2017 in Guangzhou

85T 3 Stations Plastic Injection Moulding Machine 4 Cavities For LED Lamp Housing
