Tooth Brush Multi Color Injection Molding Machine / Two Color Injection Molding Machine
Tooth Brush Multi Color Injection Molding Machine / Two Color Injection Molding Machine
Tooth Brush Multi Color Injection Molding Machine / Two Color Injection Molding Machine
Tooth Brush Multi Color Injection Molding Machine / Two Color Injection Molding Machine
Tooth Brush Multi Color Injection Molding Machine / Two Color Injection Molding Machine
Tooth Brush Multi Color Injection Molding Machine / Two Color Injection Molding Machine
Tooth Brush Multi Color Injection Molding Machine / Two Color Injection Molding Machine
Tooth Brush Multi Color Injection Molding Machine / Two Color Injection Molding Machine
Specifications
Brand Name :
Hommar
Model Number :
HM-1202C-TB
Certification :
RoHS,CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
200 pcs per month
Delivery Time :
35-45 working days
Packaging Details :
No-solid wooden box
Machine Name :
Tooth Brush Injection Molding Machine
Grip Material :
TPU,TPE PP
Colors :
2 Colors
Capacity :
2 pcs
Clamping force :
120 Ton
Warranty :
toothbrush manufacturing machine
Description

2 Colors TPE Soft Tooth Brush Injection Molding Machine, 2 Materials Molded ,Kid Tooth Brush Machine

Vertical clamping, vertical injection. Compact design requires less floor space. Make the take-out process easier.
Dual-cylinder extrusion system offers high extruding pressure for fast operation making this extruder your best choice for production of the thin work pieces.
Direct-pressure mold clamp allows even extrusion force, and the relatively low pressure means maximum precision and an incredibly smooth cycle of operation.
Choose a platen or a rotary plate in accordance with the type of products to be extruded, in order to achieve the best possible in input and output ratio.
This series machine offers a wide range of programmable functions including automatic inclusion, extrusion and delivery systems and other options for fully-automatic production.
Various screws are available to meet different processing needs. Optimum screw L/D ratio attains excellent plasticizing effect.

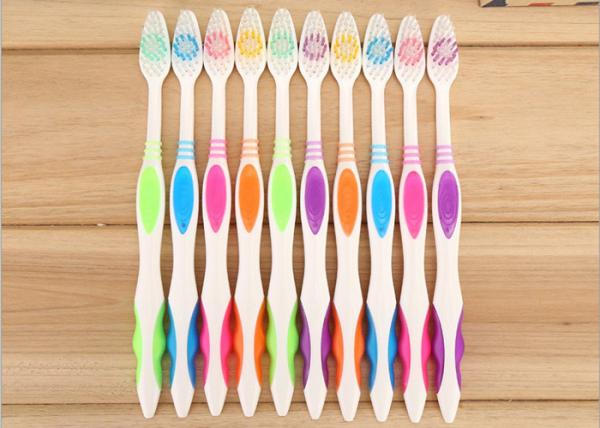

Tooth Brush Injection Molding Machine can do

2 Colors Tooth Brush

2 Materials Tooth Brush

Soft Tooth Brush

TPE and PP Tooth Brush

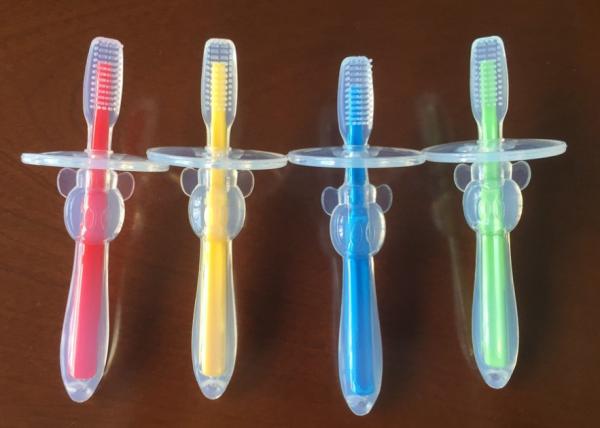

Kid Soft Tooth Brush

Features:

1 Make TWO COLORS Tooth Brush at the same time
2 Full Automatical,no need labor,can work 7 days,24 hrs
3 High efficiency,cycle time 24s, 2 cavities
4 Servo motor equiped, saving power by 60%
5 One stop purchase ,a whole set Solution
6 On Site Technical Support and Romate Technical Support


Technical Parameters:

Injection Unit
Screw Diameter mm 42
Screw Stroke mm

160
Shot Volume cm3 221
Injection Weight g/oz 206/7.3
Plasticizing Capacity g/s 22
Max. Injection Pressure kgf/cm2 1428
Injection Rate cm3/s 138-110
Injection Speed mm/s 100-80
Screw Speed r.p.m. 0-250,0-200
Nozzle Force tf 2.4
Nozzle Ejection Stroke mm 45 or more
Clamping Unit
Clamping Force tf 120
Opening Force tf

26
Clamping Stroke mm 250
Min. Mold Height mm 210
Max. Distance mm 460
Distance between Columns mm 990*405
Max. Mold Size mm 300*250
Platens Size mm 1235*650
Ejector Stroke mm 65
Ejector Force tf 17.2
Qty of ejector pcs 1*2
System Pressure kgf/cm2 140
General
Oil Tank Cpacity L 340
Motor Power KW 14+18.5
Heater Power KW 4.2*2
Temperature Stage 4*2
Working Table Height mm 1200
Dimensions
Machine Size mm 1920*2080*3600
Weight T 7.1
Packing Size mm 2100*2200*2000+1500*1100*1700
Packing Weight T 7.8

Key parts List

Item Item Name Brand Original of Country
1 PLC DIHZHOU TAIWAN
2 Screw and barrel HUAYE CHINA
3 Electric motor Universal CHINA
4 Seal kit HALLITE United Kingdom
5 Solenoid valves Yuken Taiwan
6 Proporional valves Yuken Taiwan
7 Hydraulic motor White United States
8 Linear Scale Gefran Italy
9 Gear pump Eckerle Germany
10 Electrical Connectors Schneider France
11 Tie bar Genaral Taiwan
12 Heater bands Schneider France

Accessory List

1 Injection Machine x 1
2 Robot x 2
3 Mold x 2


Optional Accessories(Charged)
1 Water Chiller x 1
2 Grinder x 1
3 Blender x 1
4 Dryer x 1
5 Loading machine x 1
6 Honeycomb Dehumidifiers x 1
7 Mold Temperature Controller x 1

Price List

QTY=1 set 69000-79000 USD/set FOB Shenzhen
QTY=2-5 set 2-3% off USD/set FOB Shenzhen
QTY=6-10 set 5-7% off USD/set FOB Shenzhen
More Negotiable

After-sales service

QTY=1 PCS,online technical support

QTY=2-4 PCS,our techincians on site but tickets, hotel and food are borne by you and labor fee 100 USD/day/person

QTY=5-6 PCS,techincians on site ,labor free but hotel and food are borne by you.

View video on Youtube

More Details

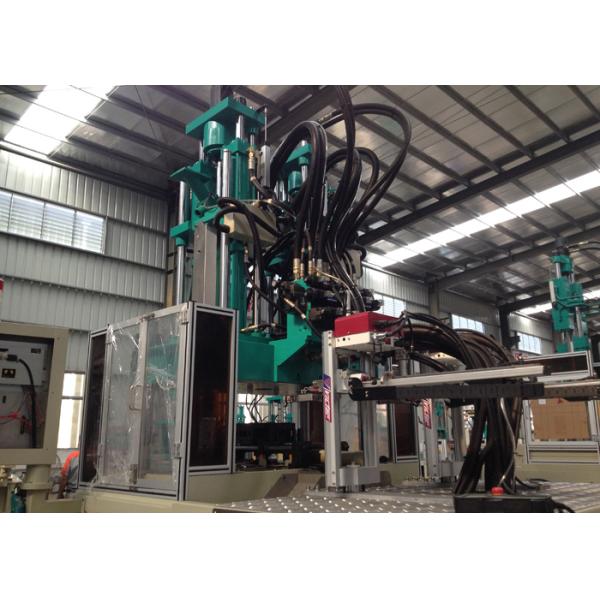

2 Robots Tooth Brush Injection Molding Machine

Tooth Brush Multi Color Injection Molding Machine / Two Color Injection Molding Machine

Customer's Workshop

4 sets of 2 colors Tooth Brush Injection Molding Machine

Tooth Brush Multi Color Injection Molding Machine / Two Color Injection Molding Machine
