40 Cavities Auto Injection Molding Machine 7.5KW For 1 Leg Hang Tag Rope
40 Cavities Auto Injection Molding Machine 7.5KW For 1 Leg Hang Tag Rope
40 Cavities Auto Injection Molding Machine 7.5KW For 1 Leg Hang Tag Rope
40 Cavities Auto Injection Molding Machine 7.5KW For 1 Leg Hang Tag Rope
40 Cavities Auto Injection Molding Machine 7.5KW For 1 Leg Hang Tag Rope
40 Cavities Auto Injection Molding Machine 7.5KW For 1 Leg Hang Tag Rope
40 Cavities Auto Injection Molding Machine 7.5KW For 1 Leg Hang Tag Rope
40 Cavities Auto Injection Molding Machine 7.5KW For 1 Leg Hang Tag Rope
Specifications
Brand Name :
Hommar
Model Number :
HM-55T-40S
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
200 pcs per month
Delivery Time :
35-45 working days
Packaging Details :
No-solid wooden box
Application :
1 Leg Hang Tag Rope
Production Speed :
12000pcs/hr
Foil Printing :
Yes
Technical Training :
Available
Warranty :
1 year
Power :
7.5KW
Description

Auto Injection Machine for 1 Leg Hang Tag Rope,Hang Tag Thread,String Loops for Tags

40 Cavities mold ,can produce 12000 pcs per hour

Special for 1 leg hang tag rope

Original and Patented machine!

Applications:

Blank Hang Tag String

No Logo Hang Tag String

PP Seal tag for clothes

PS Seal tags for hand bag

Seal tags for student bag

Label tags

Foiled Printing string tags

General cotton Seal Tags

Waxed Cotton Seal Tag string

Polyester Cord Seal Tag

Features:

Full Automatical,no need labor,one worker can charge of 3-4 sets of machines.

High efficiency,cycle time 6-10s, 10-16 cavities

High speed injection machine, saving power by 60%

One stop purchase ,a whole set Solution

On site technicial support available

Siemens PLC with internet, technicial support online

Easy Changed Mold and LOGO

Advantages

We can provide one-stop purchase service,including the whole production line, auxiliary equipment, water Chiller, Air Compressor, yarns

We can provide technicial support lifetime ,sharing 20 years experience in making tags.

helping you to improve the production output and save cost and solve all problems in process.

Parameters:

Injection Unit
Screw Diameter mm 30
Screw Stroke mm 140
Shot Volume cm3 86-112
Injection Weight g/oz 80-112/2.8-3.6
Plasticizing Capacity g/s 11.2
Max. Injection Pressure kgf/cm2 2169-1661
Injection Rate cm3/s 51-67
Injection Speed mm/s 84
Screw Speed r.p.m. 0-190
Nozzle Force tf 4.8
Nozzle Ejection Stroke mm 45 or more
Clamping Unit
Clamping Force tf

55
Opening Force tf

7.8
Clamping Stroke mm 200
Min. Mold Height mm 180
Max. Distance mm 380
Distance between Columns mm 445*255
Max. Mold Size mm 400*350
Platens Size mm 590*440
Ejector Stroke mm 35
Ejector Force tf 1.75
Qty of ejector pcs 1
System Pressure kgf/cm2 140
General
Oil Tank Cpacity L 140
Motor Power KW 7.5
Heater Power KW 5.5
Temperature Stage 3+1
Working Table Height mm 985
Dimensions
Machine Size mm(L*W*H) 1385*1925*2307
Weight T 1.9
Packing Size mm(L*W*H) 1500*2100*2000+850*850*1550
Packing Weight T 2.15

Key parts List

Item Item Name Brand Original of Country
1 PLC DIHZHOU TAIWAN
2 Screw and barrel HUAYE CHINA
3 Electric motor Universal CHINA
4 Seal kit HALLITE United Kingdom
5 Solenoid valves Yuken Taiwan
6 Proporional valves Yuken Taiwan
7 Hydraulic motor White United States
8 Linear Scale Gefran Italy
9 Gear pump Eckerle Germany
10 Electrical Connectors Schneider France
11 Tie bar Genaral Taiwan
12 Heater bands Schneider France

Accessory List

1 Injection Machine x 1
2 Robot x 1
3 Mold x 1


Optional Accessories(Charged)
1 Water Chiller x 1
2 Grinder x 1
3 Blender x 1
4 Dryer x 1
5 Loading machine x 1
6 Honeycomb Dehumidifiers x 1
7 Mold Temperature Controller x 1

Price List

QTY=1 set 26000-35000 USD/set FOB Shenzhen
QTY=2-5 set 2-3% off USD/set FOB Shenzhen
QTY=6-10 set 5-7% off USD/set FOB Shenzhen
More Negotiable

After-sales service

QTY=1 PCS,online technical support

QTY=2-4 PCS,our techincians on site but tickets, hotel and food are borne by you and labor fee 100 USD/day/person

QTY=5-6 PCS,techincians on site ,labor free but hotel and food are borne by you.

View video on Youtube

https://www.youtube.com/watch?v=PiOalHS-mb0&feature=share

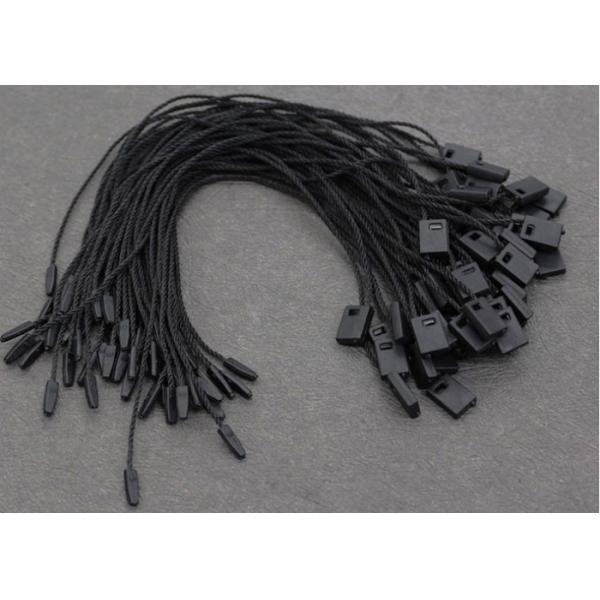

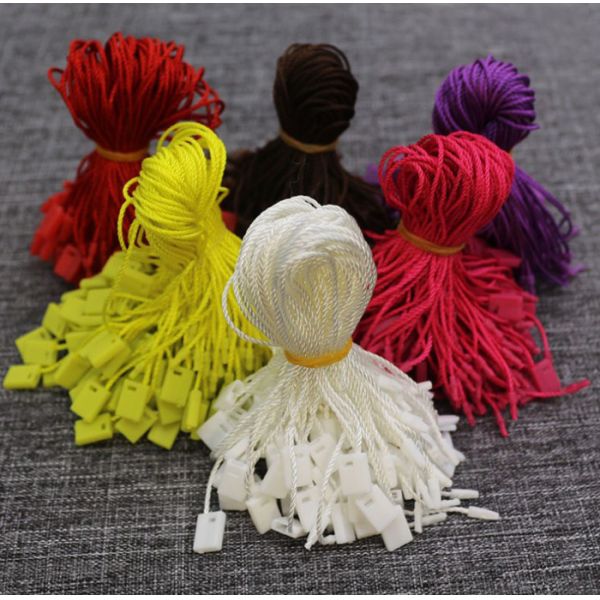

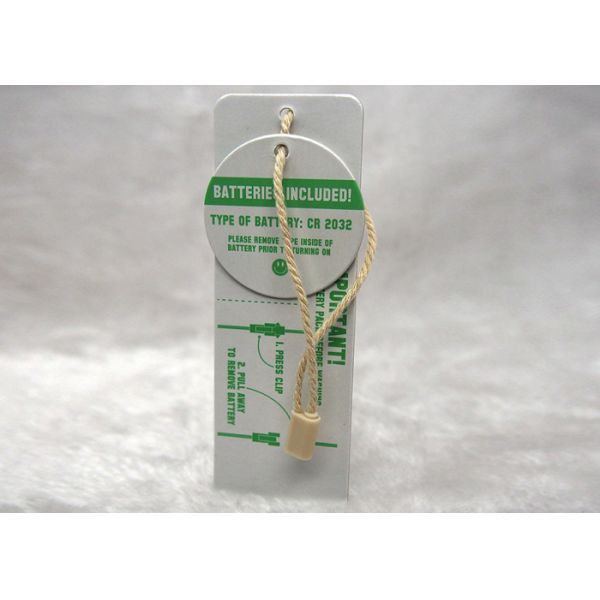

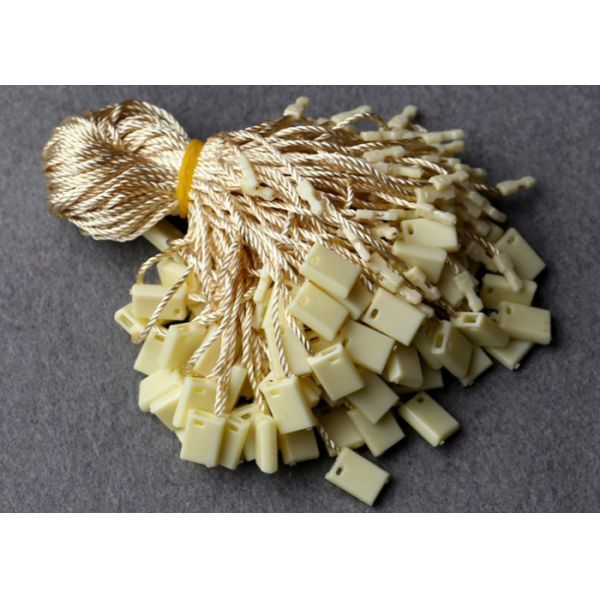

Samples made by Auto Injection Machine for 1 Leg Hang Tag Rope

40 Cavities Auto Injection Molding Machine 7.5KW For 1 Leg Hang Tag Rope

40 Cavities Auto Injection Molding Machine 7.5KW For 1 Leg Hang Tag Rope

40 Cavities Auto Injection Molding Machine 7.5KW For 1 Leg Hang Tag Rope

40 Cavities Auto Injection Molding Machine 7.5KW For 1 Leg Hang Tag Rope

Packing Process Show

40 Cavities Auto Injection Molding Machine 7.5KW For 1 Leg Hang Tag Rope

One 20"GP container shipped to Turkey

40 Cavities Auto Injection Molding Machine 7.5KW For 1 Leg Hang Tag Rope
