Stainless Steel Wire Rope Coated PVC Nylon Vinyl Coated Wire Rope
Stainless Steel Wire Rope Coated PVC Nylon Vinyl Coated Wire Rope
Stainless Steel Wire Rope Coated PVC Nylon Vinyl Coated Wire Rope
Stainless Steel Wire Rope Coated PVC Nylon Vinyl Coated Wire Rope
Stainless Steel Wire Rope Coated PVC Nylon Vinyl Coated Wire Rope
Stainless Steel Wire Rope Coated PVC Nylon Vinyl Coated Wire Rope
Stainless Steel Wire Rope Coated PVC Nylon Vinyl Coated Wire Rope
Stainless Steel Wire Rope Coated PVC Nylon Vinyl Coated Wire Rope
Stainless Steel Wire Rope Coated PVC Nylon Vinyl Coated Wire Rope
Stainless Steel Wire Rope Coated PVC Nylon Vinyl Coated Wire Rope
Stainless Steel Wire Rope Coated PVC Nylon Vinyl Coated Wire Rope
Stainless Steel Wire Rope Coated PVC Nylon Vinyl Coated Wire Rope
Specifications
Place of Origin :
Jiangsu
Model Number :
HHXX-580
Brand Name :
Honghao
MOQ :
2000Meters
Price :
Negotiable
Certification :
ISO,CE
Packaging Details :
In Plastic Reel Or In Wooden Reel
Delivery Time :
15-21 days
Payment Terms :
T/T or L/C ,paypal
Supply Ability :
50000Tons/Month
Steel Grade :
Stainless Steel
Standard :
Standard
Type :
Polished
Application :
Outdoor hanging kit
Alloy Or Not :
Non-Alloy
Special Use :
Free Cutting Steel
Tolerance :
±1%
Processing Service :
Other
Grade :
Stainless Steel
Certificate :
ISO9001/ISO14001
Product name :
Wire Rope
Material :
Stainless Steel
Description
Products Description

Stainless Steel Wire Rope Coated PVC Nylon Vinyl Coated Wire Rope

* Vinyl coated stainless steel wire rope aircraft cable.
Pvc coated stainless Steel wire rope
Nylon coated Stainless Steel Wire Rope
Raw material A2 A4 AISI304 AISI316 T304 T316
* 100 ft (30.5 meters) 200ft 250ft and 1000 ft in length, cable bare OD is from 1mm to 10mm, vinyl coated OD is from 2mm to 15mm
strength.
* 7x7 7X19 6X12+FC strands construction. Spool package, wrap with heat shrinkable film.

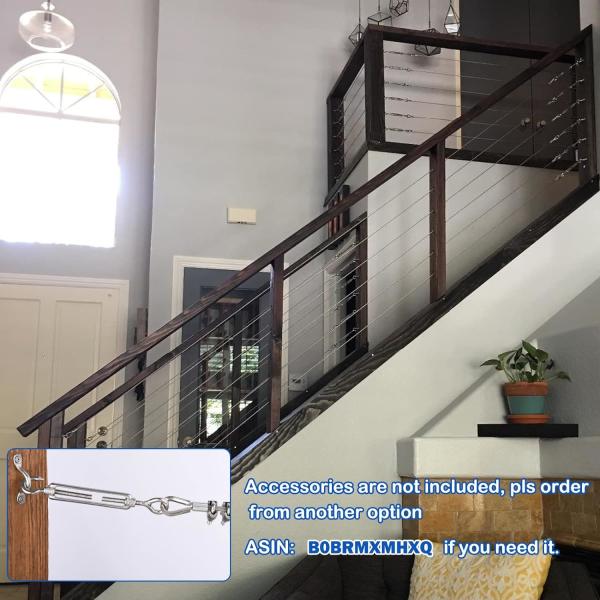

* Designed for industrial and marine applications, for traction, tension, strapping, landscape, and architectural use. Hanging
string lights, growing vines, etc. The wire has a plastic coating on it so it won't cut the vine. Not suitable for overhead
lifting and aircraft use.
More Products
Stainless Steel Wire Rope Coated PVC Nylon Vinyl Coated Wire Rope
1. Stainless steel wire rope
These are normally made of AISI 302/304 or AISI 316. AISI 302/304 offers higher breaking strength. AISI 316 offers better electrolytic corrosion resistance which makes it more suitable for marine applications.

2. The grade of the wire is the minimum breaking strength.
The most common grades used are: 1470 N/mm². 1570N/mm² .1770 N/mm².Other grades are used for some special applications.

3. The core:
Fiber Core (F.C.), usually polypropylene (P.C.), sometimes (H.C.) and sisal. Independent Wire Rope Core (IWRC) Wire Strand Core (WSC) IWRC and WSC are sometimes referred to as steel wire core or steel center.

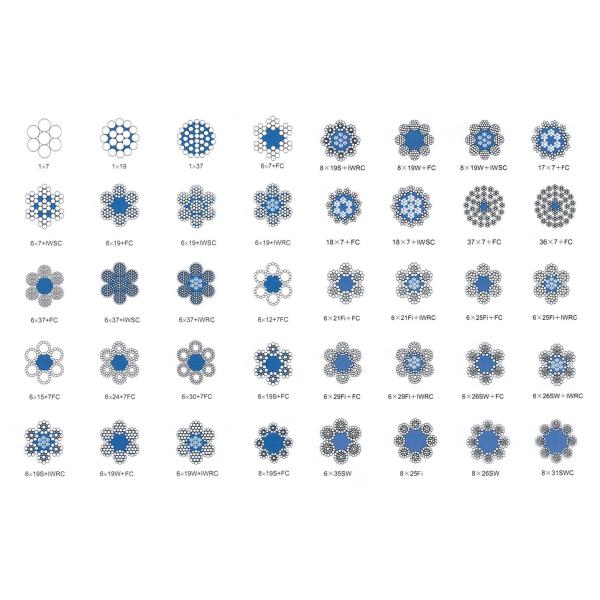

4. Construction:
Expressed in numbers of strands x number of wires.
for example: 6 x 25 indicates that the wire rope consists of 6 strands, which in turn have 25 individual wires.

5. Lay:
Right Regular Lay (RRL) ;Right Lang Lay (RLL) ;Left Regular Lay (LRL) ;Left Lang Lay (LLL)
Specification
item
value
Steel Grade
Steel, Plastic
Standard
AiSi
Place of Origin
China
Type
Stainless steel
Application
Hanging lamp ,pergola,flagpole,clothesline etc.
Alloy Or Not
Non-Alloy
Special Use
Cold Heading Steel
Tolerance
±1%
Processing Service
Bending, Cutting
Grade
Steel, Plastic
Delivery Time
15-21 days
Product name
Plastic Coated Steel Wire Rope
Material
Steel, Plastic
Diameter
1-10mm
Structure
1*7/7*7/1*19/7*19
Length
Customized
Surface
PU PE PVC, etc.
Steel Wire
Stainless or Carbon Steel
Package
Wooden Reel
Specification
1*7/19*7/7*7/1*19/7*19
MOQ
2000meters
Construction Diameter
(in)		 Approx.weight(lb./100ft) Minimum Breaking Load(lb.)
Galvanized Stainless
Nylon/PP/PE/PU/PVC-coated 7x7 1/16-3/32 1.01 480 480
Nylon/PP/PE/PU/PVC-coated 7x7 3/32-1/8 1.96 920 920
Nylon/PP/PE/PU/PVC-coated 7x7 1/8-3/16 3.83 1700 1700
Nylon/PP/PE/PU/PVC-coated 7x19 1/8-3/16 3.93 2000 1760
Nylon/PP/PE/PU/PVC-coated 7x19 3/16-1/4 7.95 4200 3700
Nylon/PP/PE/PU/PVC-coated 7x19 1/4-5/16 12.90 7000 6400
Nylon/PP/PE/PU/PVC-coated 7x19 3/32-1/8 19.60 9800 9000
In addition to the above list, according to customer needs, can supply other specifications and tensile strength of products.
Product Description
Packing & Delivery

Wrapped in plastic reel or wooden reel, then put on pallets or in wooden box,or as per customer's requirement
