200W Gold Silver Jewelry Chain Making Machine Jewelry Laser Welding Machine for Professional Jewelry Production
200W Gold Silver Jewelry Chain Making Machine Jewelry Laser Welding Machine for Professional Jewelry Production
200W Gold Silver Jewelry Chain Making Machine Jewelry Laser Welding Machine for Professional Jewelry Production
200W Gold Silver Jewelry Chain Making Machine Jewelry Laser Welding Machine for Professional Jewelry Production
200W Gold Silver Jewelry Chain Making Machine Jewelry Laser Welding Machine for Professional Jewelry Production
200W Gold Silver Jewelry Chain Making Machine Jewelry Laser Welding Machine for Professional Jewelry Production
200W Gold Silver Jewelry Chain Making Machine Jewelry Laser Welding Machine for Professional Jewelry Production
200W Gold Silver Jewelry Chain Making Machine Jewelry Laser Welding Machine for Professional Jewelry Production
200W Gold Silver Jewelry Chain Making Machine Jewelry Laser Welding Machine for Professional Jewelry Production
200W Gold Silver Jewelry Chain Making Machine Jewelry Laser Welding Machine for Professional Jewelry Production
200W Gold Silver Jewelry Chain Making Machine Jewelry Laser Welding Machine for Professional Jewelry Production
200W Gold Silver Jewelry Chain Making Machine Jewelry Laser Welding Machine for Professional Jewelry Production
Specifications
condition :
New
Output Power :
200W
usage :
welding
place of origin :
China
brand name :
HM
warranty :
3 years
laser source brand :
RAYCUS
weight (kg) :
110 KG
key selling points :
Easy to Operate
Product name :
Jewellery Welding Machine
Function :
Jewelry Gold Silver Repairing
Application :
Welding Products
Laser power :
200watt
Applicable Industries :
Machinery Repair Shops, Food & Beverage Factory, Garment Shops, Building Material Shops, hotels
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
Pressure vessel, motor, Bearing, Other, Gear
Price :
CN¥5,043.22/sets
Description

Jewelry Laser Welding Machine

Laser spot welding is an essential part of the laser materials processing technology application, which belongs to heat conduction type. That is the surface of the workpiece heated by laser radiation, heat diffuses inside through heat conduction, by controlling the parameters of laser pulse width, energy, peak power and repetition frequency, the workpiece is melted to form a specific molten pool. For its unique advantages, laser spot welder has been widely used in the processing of jewelry and welding of micro or small components. The laser spot welder is applied to jewelry ornaments manufacturing, jewelry repairing, rings or bracelets resizing, gold and silver re-tipping, stone setting, eyewear welding or repairing, denture welding, small auto parts welding, etc. Generally, it is especially suitable for tiny target precision welding. It works on gold, platinum, titanium, silver, copper, nickel, aluminum, magnesium, stainless steel, etc.200W Gold Silver Jewelry Chain Making Machine Jewelry Laser Welding Machine for Professional Jewelry Production200W Gold Silver Jewelry Chain Making Machine Jewelry Laser Welding Machine for Professional Jewelry Production200W Gold Silver Jewelry Chain Making Machine Jewelry Laser Welding Machine for Professional Jewelry Production200W Gold Silver Jewelry Chain Making Machine Jewelry Laser Welding Machine for Professional Jewelry Production200W Gold Silver Jewelry Chain Making Machine Jewelry Laser Welding Machine for Professional Jewelry Production200W Gold Silver Jewelry Chain Making Machine Jewelry Laser Welding Machine for Professional Jewelry Production200W Gold Silver Jewelry Chain Making Machine Jewelry Laser Welding Machine for Professional Jewelry Production200W Gold Silver Jewelry Chain Making Machine Jewelry Laser Welding Machine for Professional Jewelry Production
Model
DWJ-200
Laser Source
YAG
Rated Laser Power
200W
Laser Wavelength
1064nm
Maximum Single Pulse Energy
110J
Focal Spot Diameter
0.1-3.0mm
Focal Length
100mm
Laser Pulse Frequency
1-100Hz
Laser Pulse Width
1.5-20ms
Observation System
CCD visual image + microscope
Gas
Argon
Cooling System
Water cooling
Continuous Working Time
≥24H
Power Supply
220V±10%/50HZ

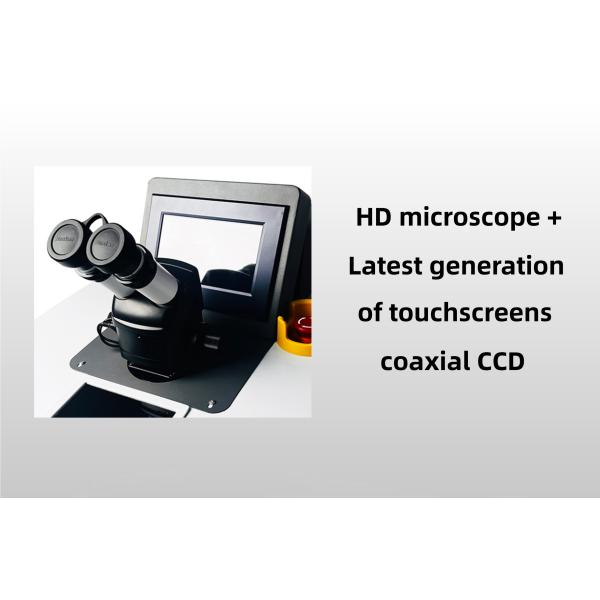

The latest generation of touchscreens with CCD, microscope + coaxial CCD

The ceramic condenser cavity is corrosion resistance and high temperature resistance. The cavity life is (8-10) years and the xenon lamp life is more than 8 million times.
High efficiency and high quality welding, large depth and small deformation, solder joint pollution-free and environmental protection.
Simple and intuitive operation, with pre-saved programs for different materials, e.g. 18k gold, silver.
The advanced automatic shading system is used to eliminate eye irritation during working hours.
Energy, pulse width, frequency and focus can be adjusted within a wide range to achieve different welding effects.
Electric adjustment of light spot size.
The laser welding machine is specially designed for spot welding, perforating, repairing, retipping and resizing of gold, silver, titanium, platinum jewelries, stone caging and gap bridging of small accessories.
It is also widely used in aviation, aerospace, sports products, eyewear frames, medical instruments, titanium alloy denture, instruments, electronics, machinery, automobile, etc.





200W Gold Silver Jewelry Chain Making Machine Jewelry Laser Welding Machine for Professional Jewelry Production200W Gold Silver Jewelry Chain Making Machine Jewelry Laser Welding Machine for Professional Jewelry Production
