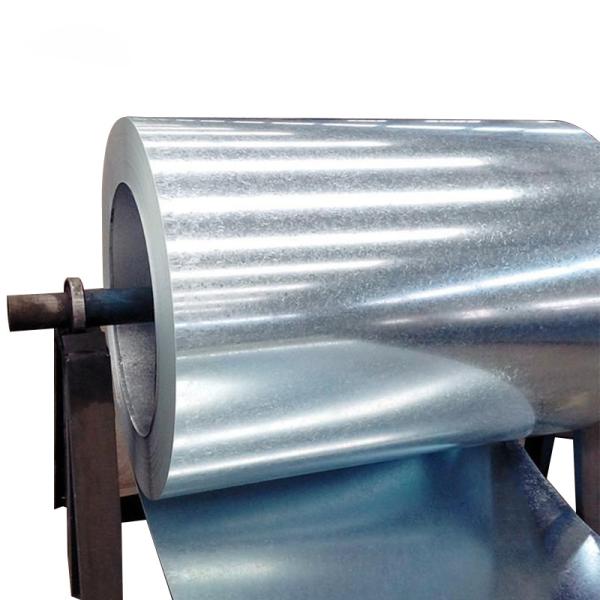

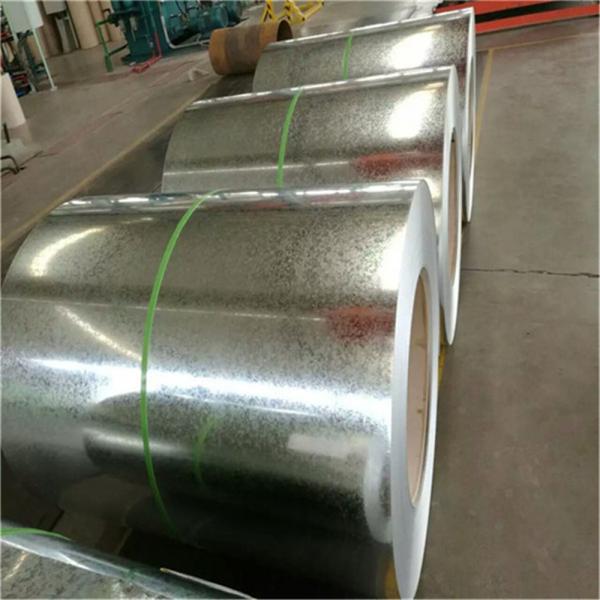

JIS G3302 Prime Hot Dipped Galvanized Steel Coils SGCC CGCC Galvanized Sheet Roll
JIS G3302 Prime Hot Dipped Galvanized Steel Coils SGCC CGCC Galvanized Sheet Roll
JIS G3302 Prime Hot Dipped Galvanized Steel Coils SGCC CGCC Galvanized Sheet Roll
JIS G3302 Prime Hot Dipped Galvanized Steel Coils SGCC CGCC Galvanized Sheet Roll
JIS G3302 Prime Hot Dipped Galvanized Steel Coils SGCC CGCC Galvanized Sheet Roll
JIS G3302 Prime Hot Dipped Galvanized Steel Coils SGCC CGCC Galvanized Sheet Roll
JIS G3302 Prime Hot Dipped Galvanized Steel Coils SGCC CGCC Galvanized Sheet Roll
JIS G3302 Prime Hot Dipped Galvanized Steel Coils SGCC CGCC Galvanized Sheet Roll
Specifications
Place of Origin :
Shandong, China
Brand Name :
hongqiao
Model Number :
0.12-5.0mm*600-1250mm
Packaging Details :
In bundles, standard export seaworthy packing
Supply Ability :
2000 Ton/Tons per Month
MOQ :
25 Tons
Price :
$800.00/Tons >=25 Tons
Certification :
API, ce, SNI, SASO, sirm, KS, JIS, ISO9001, ISO 9001
Payment Terms :
L/C, T/T, Western Union
Standard :
AiSi, ASTM, bs, DIN, GB, JIS
Grade :
SGCC/CGCC
Type :
Steel Coil
Technique :
Cold Rolled
Surface Treatment :
galvanized
Application :
Container Plate
Special Use :
Wear Resistant Steel
Width :
600mm-1250mm
Length :
Customers' Requirement
Product name :
Stainless Steel Tube
Surface :
Galvanized Coated
Spangle :
Big Medium Small Zero
Coil Weight :
3-5 Tons
Zinc Coating :
40g-275g
Port :
shanghai
Description

JIS G3302 Grade GI Hot-Dipped Galvanized Steel Coils

Galvanized coil: a thin steel sheet that immerses the steel sheet into the molten zinc bath to make its surface adhere with a layer of zinc. It is mainly produced by continuous galvanizing process, that is, the rolled steel plate is continuously immersed in the zinc melting bath to make galvanized steel plate; Alloyed galvanized steel sheet. This kind of steel plate is also made by hot dip method, but it is heated to about 500 ℃ immediately after coming out of the groove to form an alloy coating of zinc and iron. The galvanized coil has good coating adhesion and weldability.

GALVANIZED STEEL COIL
Standard ISO,JIS,AS EN,ASTM
Grade Q195 Q235 Q345
SGCC SGCH SGC340 SGC400 SGC440 SGC490 SGC570
SGHC SGH340 SGH400 SGH440 SGH490 SGH540
DX51D DX52D DX53D DX54D DX55D DX56D DX57D
S220GD S250GD S280GD S320GD S350GD S400GD S500GD S550GD
SS230 SS250 SS275
Width 600mm to 1500mm
Thickness 0.125mm to 3.5mm
Zinc coating 40g/m2 to 275g/m2
Coil weight 3 tons to 6 tons
Coil ID 508mm or 610mm
Surface treatment Unoil,Dry,Chromate Passivated, Non-chromate Passivated
Spangle Regular Spangle, minimum Spangle,Large Spangle, Zero Spangle
Capacity 1,500,000MT/year
Delivery 15-25 Days

Our Other Products
Galvanized Steel Coils
Galvanized Steel Plates
Galvanized Steel Pipes
Prepainted Galvanized Steel
Stainless Steel Coils
Stainless Steel Sheets Plates
Stainless Steel Pipes Tubes
Stainless Steel Bars Rods
Carbon Steel Pipes
Carbon Steel Coils
Carbon Steel Plates
Carbon Steel Profile
Carbon Steel Rods

JIS G3302 Prime Hot Dipped Galvanized Steel Coils SGCC CGCC Galvanized Sheet RollJIS G3302 Prime Hot Dipped Galvanized Steel Coils SGCC CGCC Galvanized Sheet Roll
