Quick Details

• Place of Origin: Zhejiang, China (Mainland)
• Brand Name: UNIRISING
• Model Number: rg58 coaxial cable
• Type: Coaxial
• Number of Conductors: 1
• Color: black white coloful
• Brading:: CCAM/AL-MG
• Jacket:: PVC/PE
• Usage:: Indoor Outdoor
• Certification:: CE ROhs ISO
• Name: rg58 coaxial cable
• Impedance: 75ohm
• Application: TV
• Conductor Material: CU/CCS/CCA
• Insulation Material: PE/FPE

Packaging & Delivery

Specifications

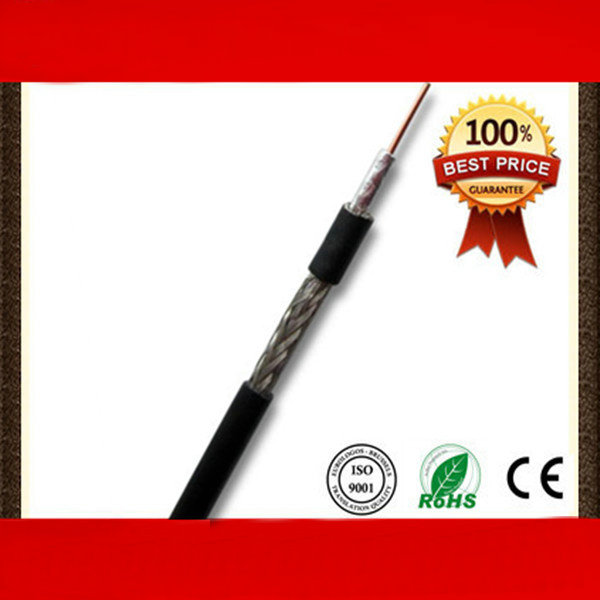

high quality rg58 coaxial cable
(1)OEM producing
(2)Good quality
(3)CE Rohs UL
(4)fast delivery

Description
0.81mmBC+2.95mm solid PE+96copper braiding(80%)+10.3mm PVC

rg58 coaxial cable Construction

rg58 coaxial cable Electrical properties

rg58 coaxial cable Optional item for RG58:
1) Center conductor: Solid bare copper / Copper clad steel / Copper clad aluminum / Tinned copper
2) Dielectric: Foam PE / Solid PE
3) Foil: Copper foil / Aluminum foil / Single / Double / bonded / Non-bonded
4) Braiding wire: Copper braiding / Al-Mg braiding / Tinned copper braiding
5) Braiding Wire Diameter: 0.10mm, 0.12mm, 0.13mm, 0.14mm, 0.15mm, 0.16mm
6) Coverage:60%,80%,90%,120%
7) Braiding Net: 32, 48, 64, 72, 80, 96, 120, 128, 144 and more available
8) Messenger: Steel / Copper clad steel

rg58 coaxial cable Specifications

Applications:
1) CATV-community antenna television
2) CCTV-closed-circuit television
3) DBS-direct broadcasting satellite

Specifications:

1) Inner Conductor: CCS, CCA, CU
2) Dielectric: Foam PE or Solid PE
3) Al Foil: Bonded, Non-bonded, Single, Double
4) Braiding Wire Material: Cu, Al-Mg, TC
5) Braiding Wire Diameter: 0.12mm, 0.15mm, 0.16mm
6) Braiding Net: 48, 64, 72, 80, 96, 128 and more
7) Coverage: 40%, 50%, 60%, 80%, 90% and more
8) PVC Degree: 60, 65, 68, 70,75
9) Jacket :PE or PVC

10) OEM and Customer's designation are welcome

rg58 coaxial cable Applications:
1) CATV-community antenna television
2) CCTV-closed-circuit television
3) DBS-direct broadcasting satellite

rg58 coaxial cable Inner Packing:
100m/roll, 200m/roll
305m (1,000ft) wooden reel, wooden drum, plastic drum

rg58 coaxial cable Outer Packing:
Wooden Drum, Carton Box, Pull Out Box
