Specifications
Brand Name :
UNIRISING CABLE
Model Number :
RG59U rg58 3c2v
Certification :
CE IS0 9002
Place of Origin :
CHINA
MOQ :
5000m
Price :
US $100 - 200 / Kilometer
Supply Ability :
10000 Kilometer/Kilometers per Month
Delivery Time :
7-15 DAYS
Packaging Details :
100, 200 or 305m/roll and 100, 200 or 300 yards/roll
Description

Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: OEM
  • Model Number: RG59U
  • Type: Coaxial
  • Number of Conductors: 1, 1
  • Application: Telecommunications
  • Conductor: CCS/CCA/CU/TC
  • Insulation: PE/FPE

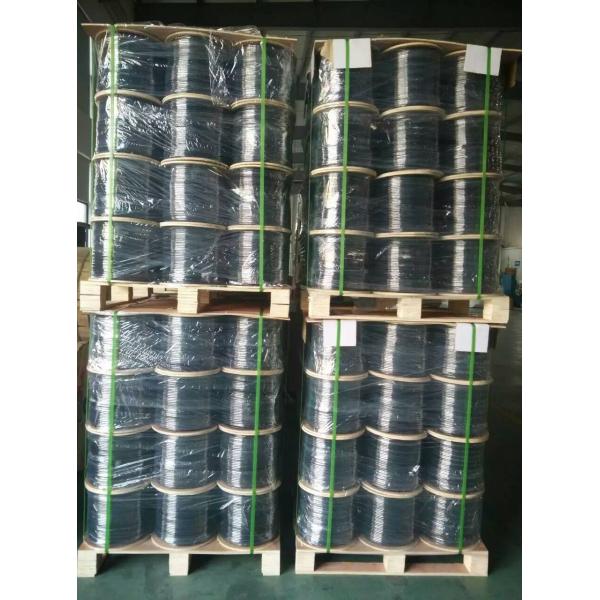

Packaging & Delivery

Packaging Details: Lengths: 100, 200 or 305m/roll and 100, 200 or 300 yards/roll
Various lengths are available (customized)
Inner: wooden, plastic and paper reel
Outer: carton box, pull out box and pallet
Other packing available according to customer's request
Delivery Detail: 7~15 days

Specifications

coaixal cable rg59
(1)0.81CCS+3.7SPE+BONDED AL FOIL+60%-95%CU/CCS+6.15mmPVC
(2)Impedance:75+-3ohm
(3)CE,ROHS,UL

· Materials: 0.81mm CCS, 3.7mm solid PE, 95% bare copper braiding and 6.15mm PVC

· Customized specifications are accepted

· Center conductor: tinned, bare copper and copper clad steel

· Aluminum foil: non-bonded, bonded, double bonded and double non-bonded

· Braiding wire: aluminum, bare and tinned copper

· Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15 and 0.16mm

· Braiding net: 32, 48, 64, 72, 80, 96, 120, 128 and 144

· Braiding coverage: 30 to 97%

· PVC jacket: flame-retardant, UV or UL

· Characteristics:

o Impedance: 50 ±2Ω

o Velocity of propagation: 85%

o Capacitance: 110pF/m

o Return loss: 20dB min

· Attenuation: (at 68F (20°C)dB/100m

o 10MHz: 3.30dB

o 20MHz: 4.70dB

o 50MHz: 7.50dB

o 100MHz: 11.10dB

o 200MHz: 16.80dB

o 500MHz: 27.00dB

o 800MHz: 35.10dB

o 950MHz: 38.70dB

o 1,000MHz: 39.20dB

Coaxial Cable RG59U rg58 3c2v
