CCTV Cable Rg59 Siamese cable power cable +2c
CCTV Cable Rg59 Siamese cable power cable +2c
CCTV Cable Rg59 Siamese cable power cable +2c
CCTV Cable Rg59 Siamese cable power cable +2c
Specifications
Brand Name :
UNIRISING
Model Number :
CCTV Cable Rg59 Siamese cable power cable +2c
Certification :
CE ISO 9002
Place of Origin :
CHINA
MOQ :
5000m
Price :
US $3 - 5 / Kilometer
Payment Terms :
L/C, D/A, T/T, D/P
Supply Ability :
100000 Kilometer/Kilometers per Month
Delivery Time :
20DAYS
Packaging Details :
100m/roll, 200m/roll, 305m/roll, 500m/roll.
Description

Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: OEM
  • Model Number: Power cable+2C
  • Type: Coaxial
  • Application: According to customers, CATV,CCTV systems
  • Color: White
  • Packing: Carton Box
  • Outer Diameter: 6.1mm
  • Connector Color: According to customers
  • Connector Type: According to customers
  • Shielding: Combination
  • Gender: According to customers
  • Inner conductor: Bare Copper/ CCA/CCS
  • Insulation: PE
  • 1st Shielding: AL-Foil/Copper Color Foil/ Bare Copper Foil
  • 2nd Shielding: Al-Mg Wire/ CCA/ Copper/ Tinned Copper
  • Outer Jacket: PVC/PE
  • Jacket Color: White/Black/ According to customers
  • Impedance: 75 Ohm
  • Delivery: Within 10 days
  • Certificate: CE/ROHS/ISO

Packaging & Delivery

Packaging Details:1. Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 500m/roll.
2. Inner packing: Wooden reel, plastic reel, and paper reel.
3. Outer packing: Carton box, pull out box, pallet available.
4. Other packing available according to client's request.
Delivery Detail:Within 10 days for ready (depends on quantity)

Specifications

CCTV Cable Rg59 Siamese cable power cable +2c
1.Good quality with best price
2.Timely delivery
3.CE, ROHS, ISO
4.OEM is OK

CCTV Cable Rg59 Siamese cable power cable +2c

Standard Specification :

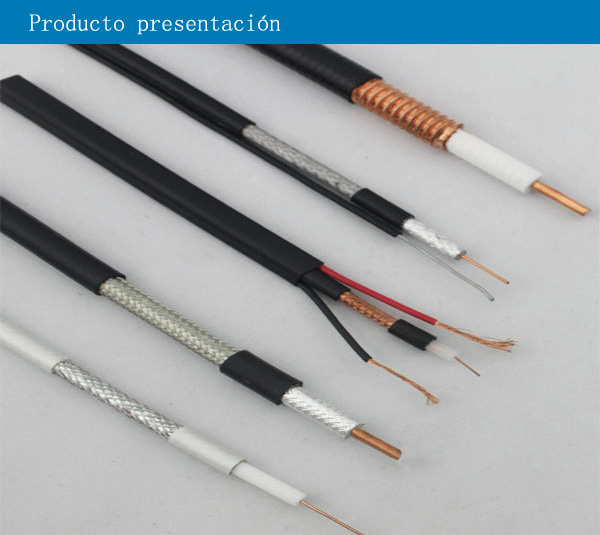

0.81mm CCS/BC + 3.66mm FPE + AL/ pet Foil + 64*0.12mm Al Braiding +6.1mm PVC +2 Power Cables

Electrical Characteristics :
1) Characteristics Impedance: 75+/- 3 Ohms
2) Capacitance Conductor to Shield: 53.1 pF/m
3) Velocity of Propagation : 82%
4) Delay: 4.065 ns/m
5) Min.Structural Return Loss (5-3000MHz) : 20 dB
6) Max. Attenuation :

@ Frequency (MHz)dB/100 ft (MAX.)dB/100 meters(MAX)
5 MHz0.86 dB2.82dB
55 MHz2.05dB6.73 dB
211 MHz3.80dB12.47dB
250 MHz4.09 dB13.45 dB
270 MHz4.43 dB14.53 dB
300 MHz4.45 dB14.60dB
330 MHz4.66 dB15.29dB
350 MHz4.80 dB15.76 dB
400 MHz5.09dB16.73 dB
450 MHz5.40dB17.72dB
500 MHz5.69 dB18.70 dB
550 MHz5.95 dB19.52 dB
600 MHz6.19dB20.34dB
750 MHz6.97 dB22.87dB
870 MHz7.57 dB24.85 dB
1000 MHz8.12 dB26.64dB



Application :
1. Coaxial cable for CATV,CCTV systems
2. Plus F as connection cable
3. For satellite systems

CCTV Cable Rg59 Siamese cable power cable +2c



CCTV Cable Rg59 Siamese cable power cable +2c

CCTV Cable Rg59 Siamese cable power cable +2c

CCTV Cable Rg59 Siamese cable power cable +2c
