Metal /brass cable gland
Metal /brass cable gland
Metal /brass cable gland
Metal /brass cable gland
Metal /brass cable gland
Metal /brass cable gland
Specifications
Place of Origin :
China
Brand Name :
HONT
Certification :
ISO9001 quality system, CE, UL, SGS, CCC series of certificatio
Model Number :
M/PG/PF/NPT
MOQ :
6000pcs
Price :
0.18
Packaging Details :
Bags and boxes.
Delivery Time :
30days
Payment Terms :
T/T
Supply Ability :
6885000pcs/month
Protection Level :
IP68
Material :
Brass
Temperature: :
-40 ℃ to 120 ℃,
Description
Metal cable gland

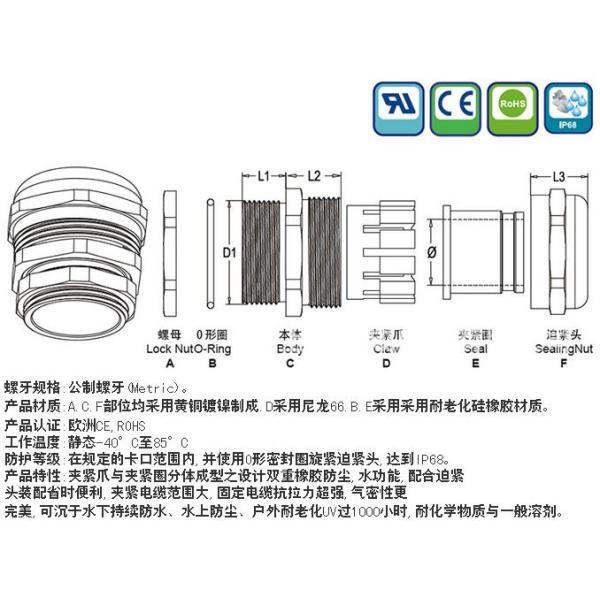

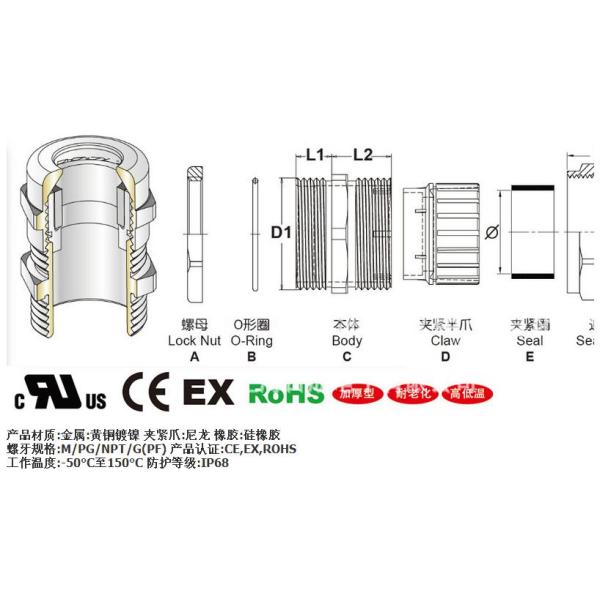

Thread Specifications: Metric M / PG / PF / NPT Series.
Metal /brass cable gland

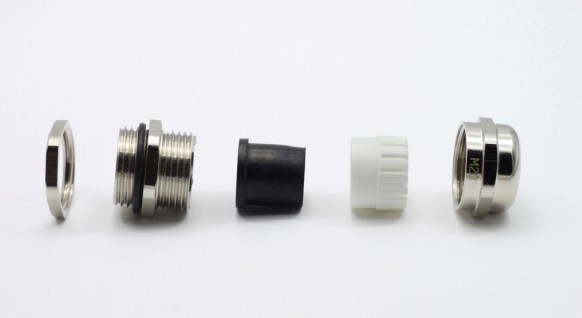

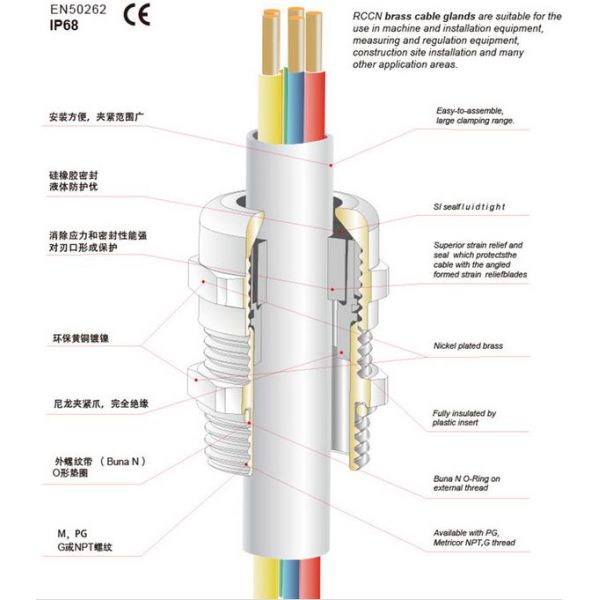

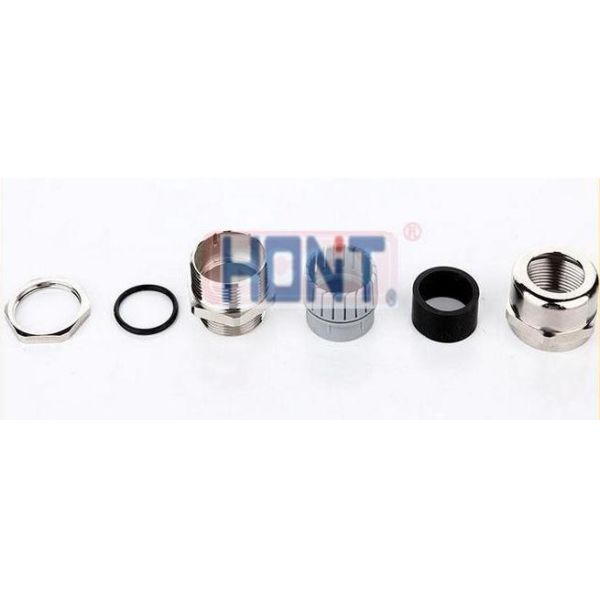

Material: joint body parts made of nickel-plated brass, nylon plastic clamp (PA) made, seals and O-rings are made of nitrile rubber (NBR) material.
Features: Special clamping claws and convex ring interlocking design, with the packing head assembly time-saving convenience, large cable clamping range, strong tensile, waterproof, dustproof, salt, acid, alcohol, grease and common solvents.
Protection level: within the scope of the provisions of the bayonet, and the O-ring screw tight tight head, meet IP68-10 bar pressure.
Operating temperature: Static: -40 ℃ to 100 ℃, short time up to 120 ℃. Dynamic: -20 ℃ to 80 ℃, short time up to 100 ℃
Thread length: short thread for openings for thin board or the equipment with an internal thread, long thread for joining thick board. Thread lengthened can be customized.
Metal /brass cable gland
Metal /brass cable gland
Metal /brass cable gland
Metal /brass cable gland
Metal /brass cable gland
Uses: This product is mounted on the machine or mounted on a metal case. Clamping cables, to prevent water and dust from entering. Applicable cable diameter: 3--42 mm. Widely used: high-end automation equipment, cable station, power communications, lighting wiring.
Usage: Metal Cable Gland is cable of supporting products, connector cable lock, the other end of the device can access the box, or you can choose electric equipment threaded access import and export within the thread.
More options: according to your actual needs, custom.
Metal /brass cable gland
