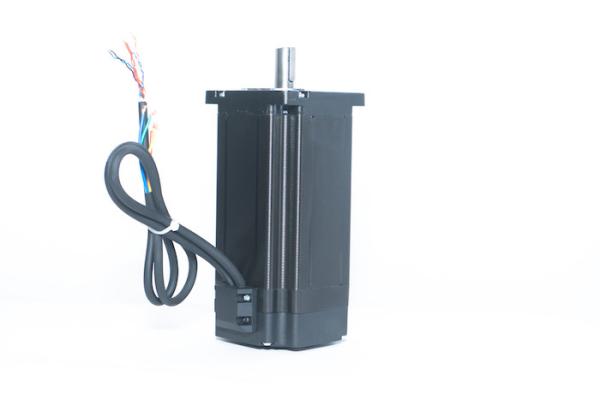

86mm Flange Nema 34 High Torque Hybrid Stepper Motor 1.8° 8nm 12nm
86mm Flange Nema 34 High Torque Hybrid Stepper Motor 1.8° 8nm 12nm
86mm Flange Nema 34 High Torque Hybrid Stepper Motor 1.8° 8nm 12nm
86mm Flange Nema 34 High Torque Hybrid Stepper Motor 1.8° 8nm 12nm
Specifications
Model Number :
34HS98-5004
Place of Origin :
Changzhou, China
Brand Name :
Hontru
Certification :
CE ISO RoHS
MOQ :
1 set
Price :
Negotiation
Packaging Details :
Foam+Hard Carton or Wooden Case+Waterproof film
Delivery Time :
5-10 working days
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
10000pcs/month
Name :
86mm Nema 34 1.8° Stepping Motor
Frame Size :
86mm
Temperature :
85℃ Max
Ambient Temperature :
-20℃~+50℃
Insulation Resistance :
100MΩMin 500VC DC
Dielectric Strength :
500VAC 1 minute
Length L mm :
98
A/Phase :
5.0
Ω/Phase :
0.5
m H/ Phase :
4.0
Holding Torque N .m :
6.8
Rotor Inertia kg.cm² :
1.55
Lead Wire NO. :
4
Motor weight kg :
3.0
Description

86mm Nema 34 1.8° Stepping Motor

Specification

Step Accuracy ±5%
Temperature 85℃ Max
Ambient Temperature -20℃~+50℃
Insulation Resistance 100MΩMin 500VC DC
Dielectric Strength 500VAC 1 minute

Electrical Specifications

Model Length
L mm		 A/Phase Ω/Phase mH/Phase Holding Torque
N .m		 Rotor Inertia
kg.cm²		 Lead Wire
NO.		 Motor weight
kg
34HS68-4004 68 4.0 0.63 3.2 2.6 0.85 4 2
34HS80-6004 75 6.0 0.38 3.5 4.5 1.05 4 2.5
34HS80-4208 75 4.2 0.72 3.5 3.5 1.05 8 2.5
34HS98-5004 98 5.0 0.5 4.0 6.8 1.55 4 3.0
34HS116-6004 114 6 0.6 6.8 8.5 1.8 4 3.5
34HS116-5008 114 5 0.75 3.2 5.8 1.8 8 3.5
34HS128-5004 128 5.0 0.6 5.0 9.0 2.2 4 3.9
34HS155-6004 150 6 0.75 8.5 11 2.5 4 4.2

Tip: The company's standard 2-phase stepper motor products are 4-wire bipolar motors. If customers require, we can provide 6-wire or 8-wire stepper motors.

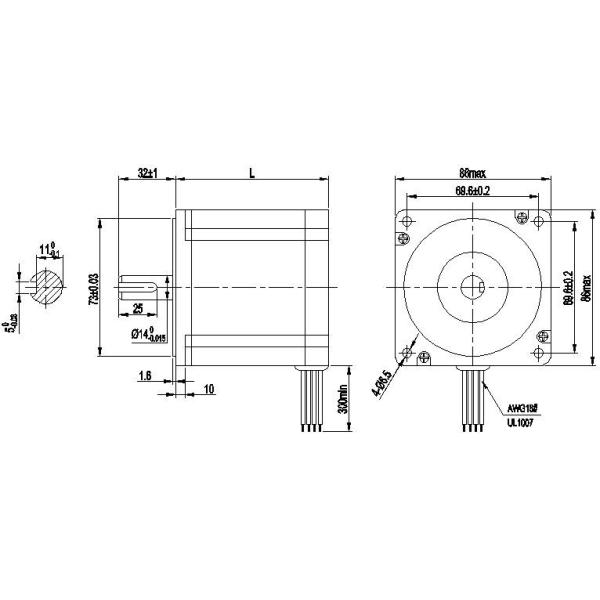

Mechanical Dimensions (unit=mm )

86mm Flange Nema 34 High Torque Hybrid Stepper Motor 1.8° 8nm 12nm

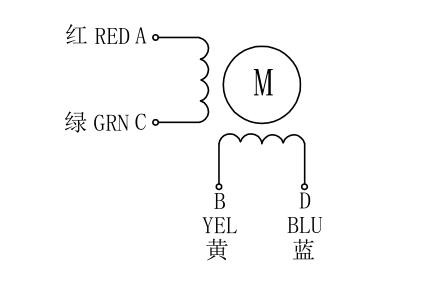

Wiring diagram

86mm Flange Nema 34 High Torque Hybrid Stepper Motor 1.8° 8nm 12nm

Tips:We can customize the motor's electrical parameters, motor output shaft size and other shapes according to customer requirements, and can also add planetary reduction gearboxes, eccentric reduction gearboxes, encoders, etc.
Note: When installing the motor, be sure to use the installation stop positioning to strictly ensure the concentricity of the motor output shaft and the load. The surface temperature of the motor is not allowed to exceed 85°C during normal operation.

86mm Flange Nema 34 High Torque Hybrid Stepper Motor 1.8° 8nm 12nm

86mm Flange Nema 34 High Torque Hybrid Stepper Motor 1.8° 8nm 12nm
