4.2 Kgcm 2.6 Kg Cm Nema 17 Stepper Motor 4 Wire 40mm 42mm
4.2 Kgcm 2.6 Kg Cm Nema 17 Stepper Motor 4 Wire 40mm 42mm
4.2 Kgcm 2.6 Kg Cm Nema 17 Stepper Motor 4 Wire 40mm 42mm
4.2 Kgcm 2.6 Kg Cm Nema 17 Stepper Motor 4 Wire 40mm 42mm
Specifications
Model Number :
34HS98-5004
Place of Origin :
Changzhou, China
Brand Name :
Hontru
Certification :
CE ISO RoHS
MOQ :
1 set
Price :
Negotiation
Packaging Details :
Foam+Hard Carton or Wooden Case+Waterproof film
Delivery Time :
5-10 working days
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
10000pcs/month
Name :
42mm Nema 17 1.8°Planet Gear Stepping Motor
Housing Material :
Metal
Bearing at output :
Ball Bearings
Radial play of shaft :
≤0.04mm
Thrust play of shaft :
≤0.3mm
Backlash,at no-load :
≤3°
Description

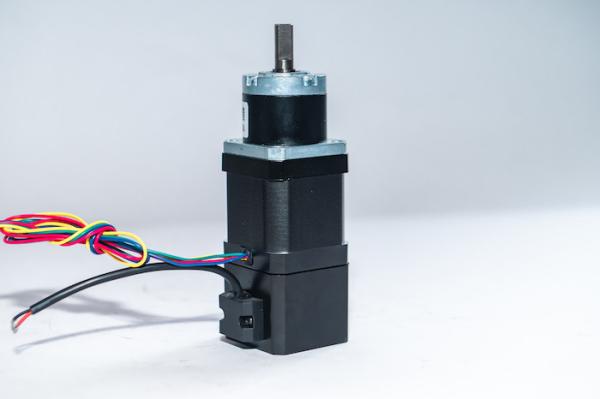

42mm NEMA 17 1.8°PLANET GEAR STEPPING MOTOR

Specification

Housing Material Metal
Bearing at output Ball Bearings
Radial play of shaft ≤0.04mm
Thrust play of shaft ≤0.3mm
Backlash,at no-load ≤3°

Electrical Specifications

Model Length
L mm		 A/Phase Ω/Phase mH/Phase Holding Torque N .cm Rotor Inertia
g.cm²		 Lead Wire NO. Motor weight
g
17HS34-1304 34 1.3 2.4 2.8 28 34 4 220
17HS34-0406 34 1.7 1.2 1.8 28 34 4 220
17HS40-1304 40 1.3 2.5 5.0 40 54 4 280
17HS40-1704 40 1.7 1.5 2.8 40 54 4 280
17HS48-1304 48 1.3 3.2 5.5 52 68 4 350
17HS48-1704 48 1.7 1.8 3.2 52 68 4 350
17HS60-1704 60 1.7 2.3 4.6 70 80 4 480
17HS60-2304 60 2.3 1.4 2.5 70 80 4 480

PLANET GEAR Electrical Specifications

Number of gear trains Level 1 Level 2 Level 3 Level 4
Reduction ratio 3.7 ,5.2 14 ,19, 27 51,71,100,139 189,264,369
Reducer length(L2) mm 31 38.5 48.5 55.5
Rated allowable load N.m 0.3 1 2 3
Instantaneous allowable load N.m 0.9 3 6 9
Efficiency % 90 81 73 66
Weight g 191 207 288 312

Mechanical Dimensions unit=mm
