3 Phase 57mm Square 24v 36v 48v Gearbox Planetary Bldc Motor
3 Phase 57mm Square 24v 36v 48v Gearbox Planetary Bldc Motor
3 Phase 57mm Square 24v 36v 48v Gearbox Planetary Bldc Motor
3 Phase 57mm Square 24v 36v 48v Gearbox Planetary Bldc Motor
Specifications
Model Number :
HC57BLF
Place of Origin :
Changzhou, China
Brand Name :
Hontru
Certification :
CE ISO RoHS
MOQ :
1 set
Price :
Negotiation
Packaging Details :
Foam+Hard Carton or Wooden Case+Waterproof film
Delivery Time :
5-10 working days
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
10000pcs/month
Name :
57mm Round Brushless Motor
Number of poles :
4
Number of phases :
3
Rated voltage (VDC) :
24
Rated speed (rpm) :
3000
Winding method :
Y
Hall distribution angle :
120°
Insulation level :
B
Insulation resistance :
100MΩ Min.500VDC
Dielectric strength :
600VAC,1Min.
Maximum radial load :
28N
Maximum axial load :
10N
Description

57mm Square Brushless Motor

Specification

Item index parameter
Winding method Y
Hall distribution angle 120°
Insulation level B
Insulation resistance 100MΩ Min.500VDC
Dielectric strength 600VAC,1Min.
Maximum radial load 28N
Maximum axial load 10N

Wiring
Function Definition Color Wire Gauge
+5V Red

AWG26 UL1430
Hu White
Hv Blue
Hw Green
GND Black
U White

AWG22 UL1430
V Blue
W Green

Motor model HC57BLY47 HC57BLY52 HC57BLY62 HC57BLY72 HC57BLY92 HC57BLY112
Number of poles 4
Number of phases 3
Rated voltage (VDC) 24
Rated speed (rpm) 3000
Rated torque (N.m) 0.07 0.11 0.18 0.22 0.33 0.45
Rated current (A) 1.5 2 3.5 4 6 8
Rated power (W) 25 41 57 79 110 140
Peak torque (N.m) 0.21 0.33 0.54 0.66 0.99 1.35
Peak current (A) 4.5 6 10.5 12 18 24
Back EMF constant (Vrms/Krpm) 6 6.3 6.4 6.2 6 6.5
Torque constant (N.m/A) 0.058 0.062 0.06 0.059 0.057 0.065
Moment of inertia (g.cm2) 30 45 60 120 180 240
Body length L (mm) 47 52 62 72 92 112
Weight (kg) 0.33 0.45 0.65 0.8 0.95 1.2

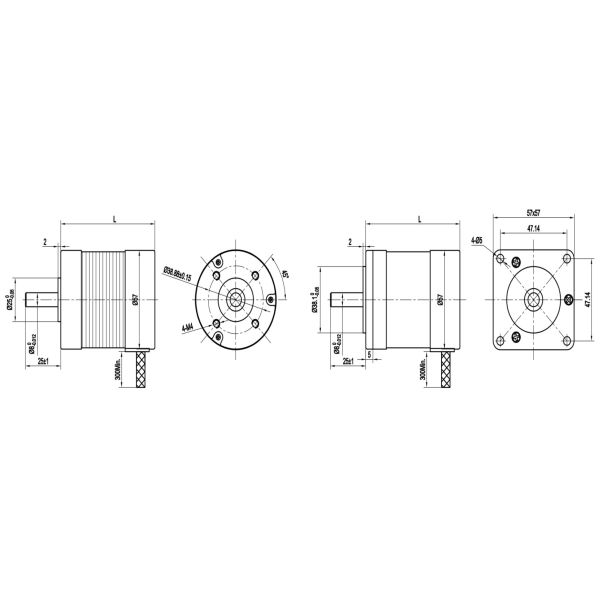

Outline:

3 Phase 57mm Square 24v 36v 48v Gearbox Planetary Bldc Motor
