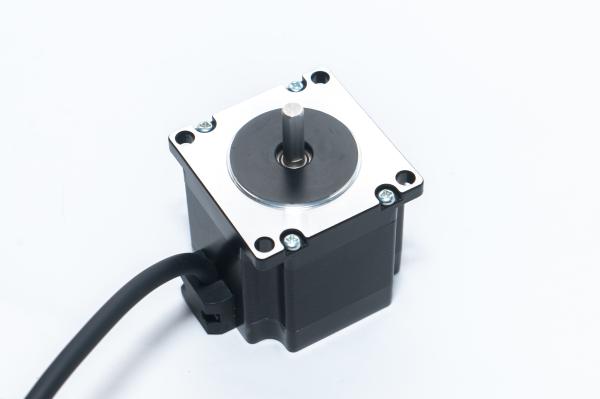

25 Kg-Cm 1.8° Nema 23 High Torque Stepper Motor 3nm 1.5N.M
25 Kg-Cm 1.8° Nema 23 High Torque Stepper Motor 3nm 1.5N.M
25 Kg-Cm 1.8° Nema 23 High Torque Stepper Motor 3nm 1.5N.M
25 Kg-Cm 1.8° Nema 23 High Torque Stepper Motor 3nm 1.5N.M
Specifications
Model Number :
23HS56-1504
Place of Origin :
Changzhou, China
Brand Name :
Hontru
Certification :
CE ISO RoHS
MOQ :
1 set
Price :
Negotiation
Packaging Details :
Foam+Hard Carton or Wooden Case+Waterproof film
Delivery Time :
5-10 working days
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
10000pcs/month
Name :
57mm Nema 23 1.8° Stepping Motor
Frame Size :
57*57mm
Temperature :
85℃ Max
Ambient Temperature :
-20℃~+50℃
Insulation Resistance :
100MΩMin 500VC DC
Dielectric Strength :
500VAC 1 minute
Length L mm :
56
A/Phase :
1.5
Ω/Phase :
3.2
m H/ Phase :
5.5
Holding Torque N .m :
0.9
Rotor Inertia g.cm² :
280
Lead Wire NO. :
4
Motor weight g :
590
Description

57mm NEMA 23 1.8° STEPPING MOTOR

Specification

Step Accuracy ±5%
Temperature 85℃ Max
Ambient Temperature -20℃~+50℃
Insulation Resistance 100MΩMin 500VC DC
Dielectric Strength 500VAC 1 minute

Electrical Specifications

Model Length
L mm		 A/Phase Ω/Phase m H/ Phase Holding Torque
N .m		 Rotor Inertia
g.cm²		 Lead Wire
NO.		 Motor weight
g
23HS41-1504 41 2.0 1.2 2.5 0.55 150 4 470
23HS56-1504 56 1.5 3.2 5.5 0.9 280 4 590
23HS56-3004 56 3.0 1.1 3 1.0 280 4 0.68
23HS76-3004 76 3.0 0.5 2.4 1.6 440 4 1050
23HS76-4004 76 4.0 0.38 1.8 1.6 440 4 1050
23HS84-3004 84 3.0 0.57 2.5 2.0 530 4 1130
23HS84-4004 84 4.0 0.7 2.7 2.0 530 4 1130
23HS100-3004 100 3.0 0.89 3.4 2.4 680 4 1250
23HS100-4204 100 4.2 0.9 3.8 2.4 680 4 1250
23HS112-3004 112 3.0 1.6 6.8 2.5 800 4 1400
23HS112-4204 112 4.2 0.9 3.8 2.5 800 4 1400

Tip: The company's standard 2-phase stepper motor products are 4-wire bipolar motors. If customers require, we can provide 6-wire or 8-wire stepper motors.

Mechanical Dimensions (unit=mm )

25 Kg-Cm 1.8° Nema 23 High Torque Stepper Motor 3nm 1.5N.M

Wiring diagram

25 Kg-Cm 1.8° Nema 23 High Torque Stepper Motor 3nm 1.5N.M

Tips:We can customize the motor's electrical parameters, motor output shaft size and other shapes according to customer requirements, and can also add planetary reduction gearboxes, eccentric reduction gearboxes, encoders, etc.
Note: When installing the motor, be sure to use the installation stop positioning to strictly ensure the concentricity of the motor output shaft and the load. The surface temperature of the motor is not allowed to exceed 85°C during normal operation.

25 Kg-Cm 1.8° Nema 23 High Torque Stepper Motor 3nm 1.5N.M25 Kg-Cm 1.8° Nema 23 High Torque Stepper Motor 3nm 1.5N.M
