Specifications
Model Number :
23HS41-1504
Place of Origin :
Changzhou, China
Brand Name :
Hontru
Certification :
CE ISO RoHS
MOQ :
1 set
Price :
Negotiation
Packaging Details :
Foam+Hard Carton or Wooden Case+Waterproof film
Delivery Time :
5-10 working days
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
10000pcs/month
Name :
57mm Nema 23 1.8° Stepping Motor
Frame Size :
57*57mm
Temperature :
85℃ Max
Ambient Temperature :
-20℃~+50℃
Insulation Resistance :
100MΩMin 500VC DC
Dielectric Strength :
500VAC 1 minute
Length L mm :
41mm
A/Phase :
2.0
Ω/Phase :
1.2
m H/ Phase :
2.5
Holding Torque N .m :
0.55
Rotor Inertia g.cm² :
150
Lead Wire NO. :
4
Motor weight g :
470
Description

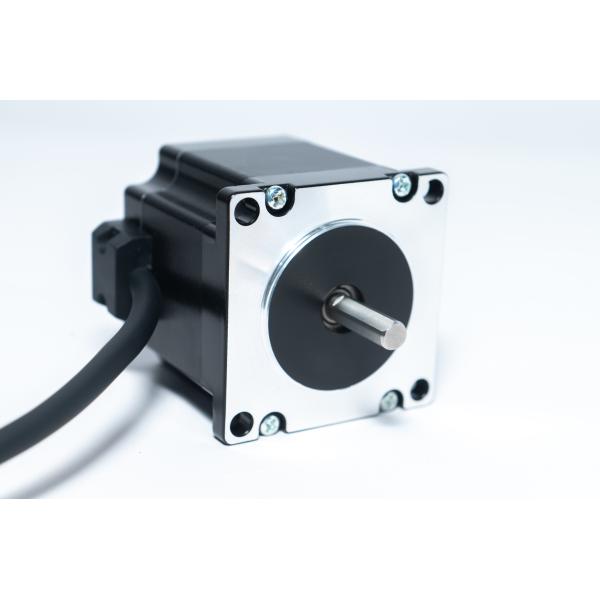

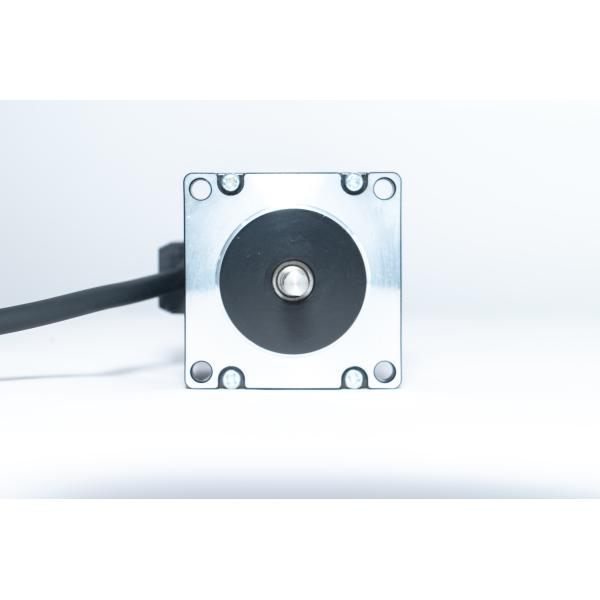

57mm NEMA 23 1.8° STEPPING MOTOR

Specification

Step Accuracy ±5%
Temperature 85℃ Max
Ambient Temperature -20℃~+50℃
Insulation Resistance 100MΩMin 500VC DC
Dielectric Strength 500VAC 1 minute

Electrical Specifications

Model Length
L mm
A/Phase Ω/Phase m H/ Phase Holding Torque
N .m
Rotor Inertia
g.cm²
Lead Wire
NO.
Motor weight
g
23HS41-1504 41 2.0 1.2 2.5 0.55 150 4 470
23HS56-1504 56 1.5 3.2 5.5 0.9 280 4 590
23HS56-3004 56 3.0 1.1 3 1.0 280 4 0.68
23HS76-3004 76 3.0 0.5 2.4 1.6 440 4 1050
23HS76-4004 76 4.0 0.38 1.8 1.6 440 4 1050
23HS84-3004 84 3.0 0.57 2.5 2.0 530 4 1130
23HS84-4004 84 4.0 0.7 2.7 2.0 530 4 1130
23HS100-3004 100 3.0 0.89 3.4 2.4 680 4 1250
23HS100-4204 100 4.2 0.9 3.8 2.4 680 4 1250
23HS112-3004 112 3.0 1.6 6.8 2.5 800 4 1400
23HS112-4204 112 4.2 0.9 3.8 2.5 800 4 1400

Tip: The company's standard 2-phase stepper motor products are 4-wire bipolar motors. If customers require, we can provide 6-wire or 8-wire stepper motors.

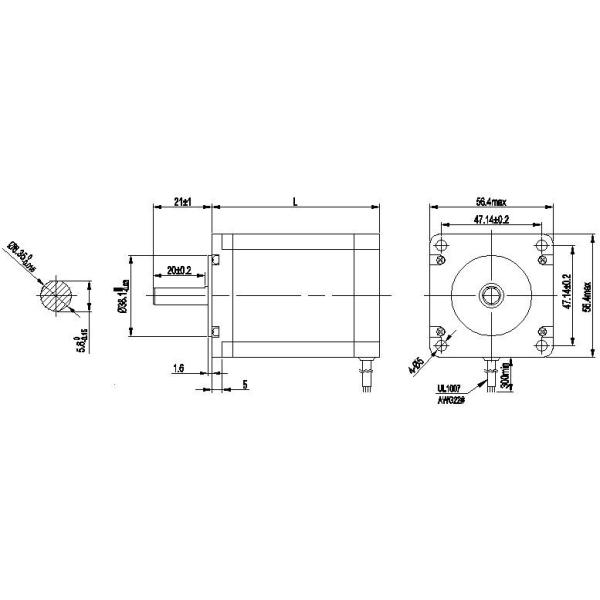

Mechanical Dimensions (unit=mm )

57mm 3 Phase  5A Nema 23 Frame Stepper Motor  1.8° 3a 4.2a 3.0nm

Wiring diagram

57mm 3 Phase  5A Nema 23 Frame Stepper Motor  1.8° 3a 4.2a 3.0nm

Tips:We can customize the motor's electrical parameters, motor output shaft size and other shapes according to customer requirements, and can also add planetary reduction gearboxes, eccentric reduction gearboxes, encoders, etc.
Note: When installing the motor, be sure to use the installation stop positioning to strictly ensure the concentricity of the motor output shaft and the load. The surface temperature of the motor is not allowed to exceed 85°C during normal operation.

57mm 3 Phase  5A Nema 23 Frame Stepper Motor  1.8° 3a 4.2a 3.0nm57mm 3 Phase  5A Nema 23 Frame Stepper Motor  1.8° 3a 4.2a 3.0nm
