35mm 55mm 80mm Nema 14 Linear Actuator Micro 15mm 20mm Two Phase Four Wire
35mm 55mm 80mm Nema 14 Linear Actuator Micro 15mm 20mm Two Phase Four Wire
Specifications
Model Number :
35mm Linear Stepper Motor
Certification :
40
Place of Origin :
Changzhou, China
Brand Name :
Hontru
MOQ :
1 set
Price :
Negotiation
Packaging Details :
Foam+Hard Carton or Wooden Case+Waterproof film
Delivery Time :
5-10 working days
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
10000pcs/month
Name :
35mm Linear Stepper Motor
Phase number :
2
Step angle accuracy IP rating :
±5%
Insulation level :
RoHS CE ISO9001 B(130℃)
Operating ambient temperature :
-20℃~ +50℃
Description

35mm Linear Stepper Motor

Phase number 2
Step angle accuracy IP rating ±5%
Certification 40
Insulation level RoHS CE ISO9001 B(130℃)
Operating ambient temperature -20℃~ +50℃

Motor parameters

Motor Type Body L(mm) Holding torque(N.m) Rated current(A) Resistance(Ω) Rated inductance(mH) Rated voltage(V)
35 34mm 0.14 1A 2.3Ω 3.6mH 2.3V
47mm 0.35 1.5A 1.35Ω 1.85mH 2V

Screw parameters :

diameter(mm) Screw diameter(inch) Lead(mm) Lead(inch) Step Length 1.8°(°) Nut axial clearance
6.35 0.25 0.79375 0.0313 0.004 0.02-0.03mm
6.35 0.25 1 0.0394 0.005 0.02-0.03mm
6.35 0.25 1.5875 0.0625 0.0079 0.02-0.03mm
6.35 0.25 2 0.0787 0.01 0.02-0.03mm
6.35 0.25 2.4384 0.096 0.0122 0.02-0.03mm
6.35 0.25 2.54 0.1 0.0127 0.02-0.03mm
6.35 0.25 3 0.1181 0.015 0.02-0.03mm
6.35 0.25 3.175 0.125 0.0159 0.02-0.03mm
6.35 0.25 4.8768 0.192 0.024384 0.02-0.03mm
6.35 0.25 5.08 0.2 0.0254 0.02-0.03mm
6.35 0.25 6.35 0.25 0.0318 0.02-0.03mm
6.35 0.25 8.4582 0.333 0.0423 0.02-0.03mm
6.35 0.25 12.7 0.5 0.0635 0.02-0.03mm
6.35 0.25 25.4 1 0.127 0.02-0.03mm

Dimensions

35mm 55mm 80mm Nema 14 Linear Actuator Micro 15mm 20mm Two Phase Four Wire

Screw Type

35mm 55mm 80mm Nema 14 Linear Actuator Micro 15mm 20mm Two Phase Four Wire

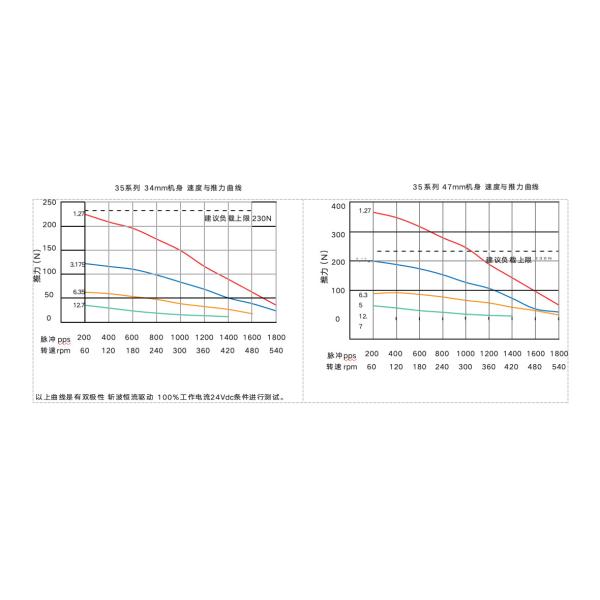

Dynamic thrust curve

35mm 55mm 80mm Nema 14 Linear Actuator Micro 15mm 20mm Two Phase Four Wire
