Geared Bldc Motor Nema23 Round 57mm Brushless
Geared Bldc Motor Nema23 Round 57mm Brushless
Specifications
Model Number :
HC86BLF
Place of Origin :
Changzhou, China
Brand Name :
Hontru
Certification :
CE ISO RoHS
MOQ :
1 set
Price :
Negotiation
Packaging Details :
Foam+Hard Carton or Wooden Case+Waterproof film
Delivery Time :
5-10 working days
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
10000pcs/month
Name :
HC57BLY series brushless reduction motor
Gearbox housing material :
metal
Backlash :
≤1.2°
Radial clearance :
≤0.05mm
Axial clearance: :
≤0.3mm
Description

HC57BLY Series Brushless Reduction Motor 57mm Round Brushless Reduction Motor

1. Gearbox housing material: metal
2. Backlash: ≤1.2°
3. Radial clearance: ≤0.05mm
4. Axial clearance: ≤0.3mm
5. The allowable torque of the gearbox must not be exceeded during use

Gearbox technical parameters:

Reduction ratio

Rated allowable torque(N.m)

(N.m)

Instantaneous maximum torque(N.m)

efficiency(%)

Box lengthL1(mm)

L1(mm)

Level grade
3.6,4.3 5 15 90% 38.3 1
13,19,22 20 60 81% 52.2 2
46,69,102, 121 20 60 73% 66.1 3
198,276,326 , 409 513 20 60 65% 80 4

Motor technical parameters:

Motor model HC57BLY47 HC57BLY52 HC57BLY62 HC57BLY72 HC57BLY92 HC57BLY112
Number of poles 4 4 4 4 4 4
Number of phases 3 3 3 3 3 3
Rated voltage (VDC) 24 24 24 24 24 24
Rated speed (rpm) 3000 3000 3000 3000 3000 3000
Rated torque (N.m) 0.07 0.11 0.18 0.22 0.33 0.45
Rated current (A) 1.5 2 3.5 4 6 8
Rated power (W) 25 41 57 79 110 140
Body length L (mm) 47 52 62 72 92 112
Weight (kg) 0.33 0.45 0.65 0.8 0.95 1.2

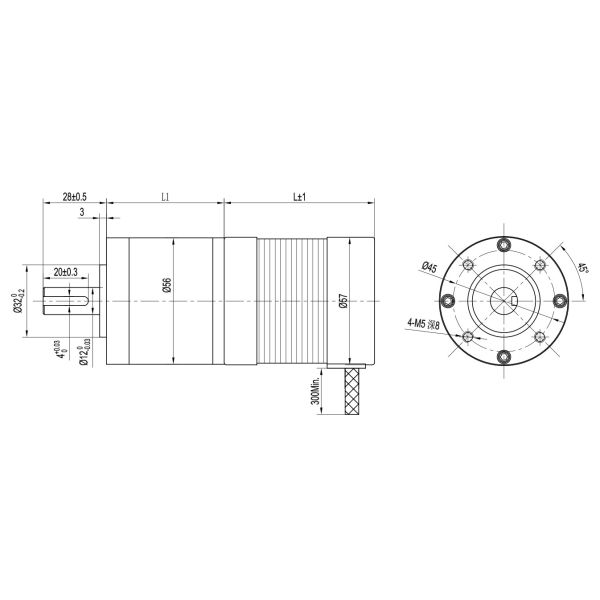

Outline:

Geared Bldc Motor Nema23 Round 57mm Brushless
