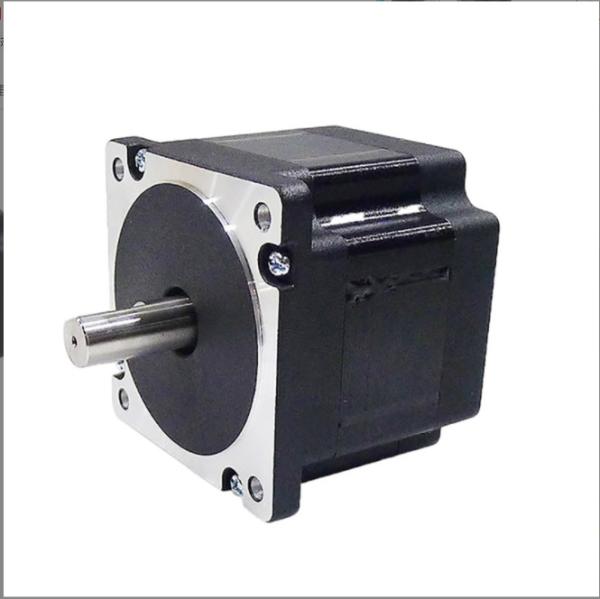

86mm Square Brushless Motor 12 Slots 86BLF Square BLDC Motor
86mm Square Brushless Motor 12 Slots 86BLF Square BLDC Motor
86mm Square Brushless Motor 12 Slots 86BLF Square BLDC Motor
86mm Square Brushless Motor 12 Slots 86BLF Square BLDC Motor
Specifications
Model Number :
HC86BLF
Place of Origin :
Changzhou, China
Brand Name :
Hontru
Certification :
CE ISO RoHS
MOQ :
1 set
Price :
Negotiation
Packaging Details :
Foam+Hard Carton or Wooden Case+Waterproof film
Delivery Time :
5-10 working days
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
10000pcs/month
Name :
86mm Square Brushless Motor 12 slots
Number of poles :
8
Number of phases :
3
Rated voltage (VDC) :
48
Rated speed (rpm) :
3000
Winding method :
Y
Hall distribution angle :
120°
Insulation level :
B
Insulation resistance :
100MΩ Min.500VDC
Dielectric strength :
600VAC,1Min.
Maximum radial load :
220N
Maximum axial load :
60N
Description

86mm Square Brushless Motor 12 slots

Specification

Item index parameter
Winding method Y
Hall distribution angle 120°
Insulation level B
Insulation resistance 100MΩ Min.500VDC
Dielectric strength 600VAC,1Min.
Maximum radial load 220N
Maximum axial load 60N

Wiring
Function Definition Color Wire Gauge
+5V Red

AWG26 UL1430
Hu White
Hv Blue
Hw Green
GND Black
U White

AWG22 UL1430
V Blue
W Green

Motor model HC86BLF70 HC86BLF83 HC86BLF110 HC86BLF125 HC86BLF140
Number of poles 8
Number of phases 3
Rated voltage (VDC) 48
Rated speed (rpm) 3000
Rated torque (N.m) 0.35 0.7 1.4 1.8 2.5
Rated current (A) 4 7 11 15 19
Rated power (W) 110 220 440 660 750
Peak torque (N.m) 1.05 2.1 4.2 6.3 7.5
Peak current (A) 12 21 33 57 57
Back EMF constant (Vrms/Krpm) 10.5 11.5 13.5 11.5 12
Torque constant (N.m/A) 0.1 0.11 0.13 0.13 0.13
Moment of inertia (g.cm2) 400 800 1600 2400 3200
Body length L (mm) 70 83 110 125 140
Weight (kg) 1.5 1.85 2.6 3.3 4

Outline:

86mm Square Brushless Motor 12 Slots 86BLF Square BLDC Motor
