HC42BLFS 69W 42mm Brake And Planetary Geared Brushless DC Motor
HC42BLFS 69W 42mm Brake And Planetary Geared Brushless DC Motor
Specifications
Model Number :
HC86BLF
Place of Origin :
Changzhou, China
Brand Name :
Hontru
Certification :
CE ISO RoHS
MOQ :
1 set
Price :
Negotiation
Packaging Details :
Foam+Hard Carton or Wooden Case+Waterproof film
Delivery Time :
5-10 working days
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
10000pcs/month
Name :
HC42BLFS Brushless Reducer
Gearbox housing material :
metal
Backlash :
≤1.2°
Radial clearance :
≤0.05mm
Axial clearance: :
≤0.3mm
Reduction ratio :
3.7 10、13、19 32、51、71、 100 139、188、264 、369 516
Rated allowable torque(N.m) :
2 6 12 12
Instantaneous maximum torque(N.m) :
6 18 36 36
efficiency(%) :
90% 81% 73% 65%
Box lengthL1(mm) :
31.8 43.1 54.4 65.7
Level grade :
1 2 3 4
Description

HC42BLFS Brushless Reducer

1. Gearbox housing material: metal
2. Backlash: ≤1.2°
3. Radial clearance: ≤0.05mm
4. Axial clearance: ≤0.3mm
5. The allowable torque of the gearbox must not be exceeded during use

Gearbox technical parameters:

Reduction ratio Rated allowable torque(N.m) Instantaneous maximum torque(N.m) efficiency(%) Box lengthL1(mm) Level grade
3.7 2 6 90% 31.8 1
10,13,19 6 18 81% 43.1 2
32,51,71, 100 12 36 73% 54.4 3
139,188,264 ,369 516 12 36 65% 65.7 4

Motor technical parameters:

Motor model HC42BLFS40 HC42BLFS60 HC42BLFS80 HC42BLFS100
Number of poles 8 8 8 8
Number of phases 3 3 3 3
Rated voltage (VDC) 24 24 24 24
Rated speed (rpm) 4000 4000 4000 4000
Rated torque (N.m) 0.063 0.125 0.185 0.25
Rated current (A) 2 3.5 5.5 7.5
Rated power (W) 21 41 63 81
Body length L (mm) 40 60 80 100
Weight (kg) 0.3 0.45 0.65 0.8

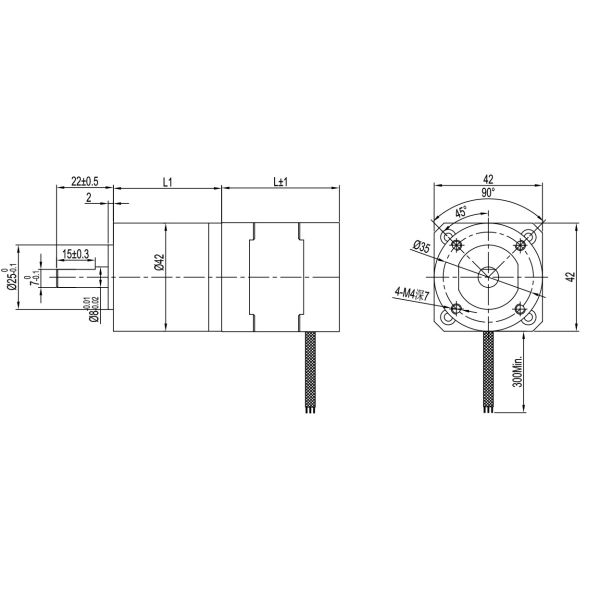

Outline:

HC42BLFS 69W 42mm Brake And Planetary Geared Brushless DC Motor
