800 Pneumatic Tension Control Cantilever Single Twist Bunching Machine For Teflon Cable 22mm
800 Pneumatic Tension Control Cantilever Single Twist Bunching Machine For Teflon Cable 22mm
800 Pneumatic Tension Control Cantilever Single Twist Bunching Machine For Teflon Cable 22mm
800 Pneumatic Tension Control Cantilever Single Twist Bunching Machine For Teflon Cable 22mm
Specifications
Brand Name :
Hopda
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C
Delivery Time :
30-60 days
Packaging Details :
Standard packaging
Model :
YLΦ800mm
Pay-off bobbin :
500-630mm
Take-up bobbin :
Φ800mm
Dia. Of core wire :
Φ0.3-Φ3.0mm
Max. dia. Of finished product :
Φ16mm
Pitch of twist :
30－300mm
Max Speed of rotation :
700
Taking-up tension :
Pneumatic tension track, adjusted easily
Description

800 pneumatic tension control cantilever single twist bunching machine for teflon cable 22mm

Technical parameters sheet:

Model YL-Φ800
Pay-off bobbin (mm) Φ400－Φ630
Take-up bobbin (mm) Φ800
Dia. Of inlet wire (mm) Φ0.3-4.0

Max. Dia. Of finished product (mm)

 Φ18
Pitch of twist (mm) 30-300
Max Speed of rotation (rpm) 680
Pitch of traversing (mm) 3-20
Taking-up tension

Pneumatic tension track, adjusted easily
Type of take-up and traversing

Take-up in accordance of the rotation of bobbin, traversing in accordance of the reciprocating movement of bobbin.
Twisting direction “S” or “Z”
Wrapping device Intermediate wrapping or packing directly
Type of pay-off adopt drive pay-off machine

Application:

Applicable for ethernet cable (cat5e/cat6/cat6a/cat7), control cable, power cord (aka. power cord) and multiple strand core wires cabling and twisting as well as taping at the same time (note: the taping funciton is optional and depends on customer request).

Feature:

  • Linkage at different speed mechanically, PLC program control, Electronic tracking pitch, human-computer interface, work steady at high speed.
  • Loading and unloading trays is easy and requires low labor consumption.
  • Pitch is controlled by computer, with non-tension traction wheels and a motion wiring cable passing path. The traction wheel diameter is increased to reduce the wire cable curve.
  • The stranded main unit has a cantilever arm structure and a revolving body with low rotating inertia, high rpm, and stable speed.

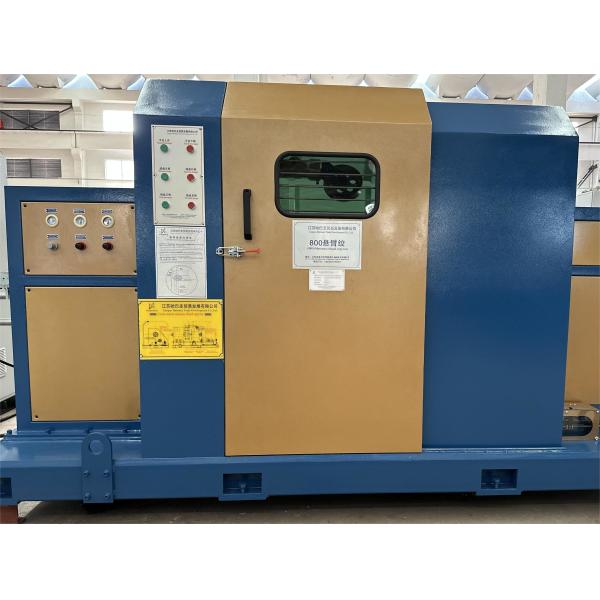

Product images:

800 Pneumatic Tension Control Cantilever Single Twist Bunching Machine For Teflon Cable 22mm

800 Pneumatic Tension Control Cantilever Single Twist Bunching Machine For Teflon Cable 22mm800 Pneumatic Tension Control Cantilever Single Twist Bunching Machine For Teflon Cable 22mm
