1250 Cantilever Single Twist Stranding Machine For Power Cable And Ethernet Cable
1250 Cantilever Single Twist Stranding Machine For Power Cable And Ethernet Cable
1250 Cantilever Single Twist Stranding Machine For Power Cable And Ethernet Cable
1250 Cantilever Single Twist Stranding Machine For Power Cable And Ethernet Cable
Specifications
Brand Name :
Hopda
Model Number :
1250
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, CAD
Supply Ability :
10 set per month
Delivery Time :
20-30
Packaging Details :
Standard packaging, Cargo shipment
Payoff stand :
Ø400-630mm
Inlet wire diameter :
30-400mm
Stranded diameter :
Ø25mm
Pitch :
30-350
Rotation speed :
420rpm
Take-up tension :
adjustable
Description

1250 Cantilever single twist stranding machine for power cable and ethernet cable

Application:

This is suitable for the cabling and twisting of data cables, such as cat5e, cat6, cat6a, and cat7, and also for multiple strand core wires. Additionally, it can perform the wrapping operation simultaneously.

Technical parameters sheet:

Model/specs. CST630 CST800 CST1000 CST1250
Take-up reel diameter (mm) 630 800 1000 1250
Max. Rotation speed (rpm) 850 700 520 460
Stranded outer diameter (mm) 12 16 20 25
Stranding pitch (mm) 20/200 30/300 30/300 30/350
Pay-off reel diameter (mm) Φ400-500 φ500-630 φ500-630 Φ630-800
Take-up pitch Stepless adjustment

Feature:

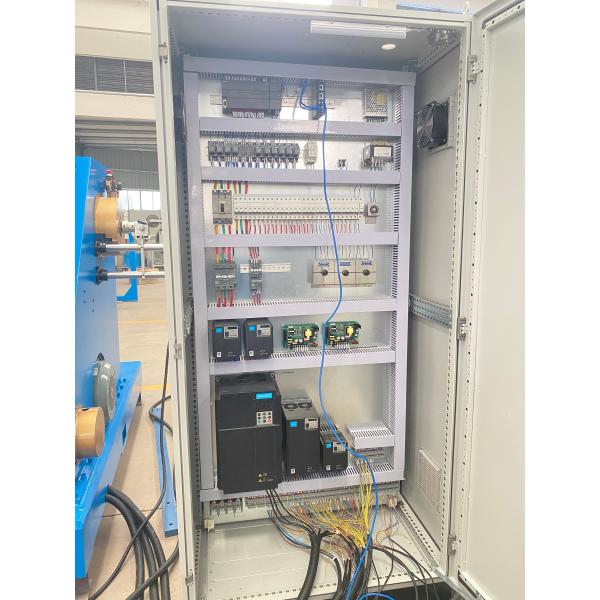

  • Linkage at different speed mechanically, PLC program control, Electronic tracking pitch, human-computer interface, work steady at high speed.
  • Loading and unloading trays is easy and requires low labor consumption.
  • Pitch is controlled by computer, with non-tension traction wheels and a motion wiring cable passing path. The traction wheel diameter is increased to reduce the wire cable curve.
  • The stranded main unit has a cantilever arm structure and a revolving body with low rotating inertia, high rpm, and stable speed.

Product Description:

1250 Cantilever Single Twist Stranding Machine For Power Cable And Ethernet Cable1250 Cantilever Single Twist Stranding Machine For Power Cable And Ethernet Cable1250 Cantilever Single Twist Stranding Machine For Power Cable And Ethernet Cable1250 Cantilever Single Twist Stranding Machine For Power Cable And Ethernet Cable1250 Cantilever Single Twist Stranding Machine For Power Cable And Ethernet Cable
