Specifications
Brand Name :
Hopda
Model Number :
1250, 1+5
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1 set (stranding host can be ordered separately)
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5 set per month
Delivery Time :
if no stock in place, 30-60 calendar days
Packaging Details :
Seaworthy packaging in containter for export
Single wire diameter (soft conductor) :
3-6mm
Single wire diameter (hard) :
8-15mm
Max. OD :
60mm
Stranding pitch :
48-1500mm
Max. rotation speed :
330rpm (3B)
Power :
55KW
Take-up bobbin :
PN2000
Payoff bobbin in cage :
PN1250
Caterpillar :
2000kg
Center height :
1000mm
Length * width :
55m*6m
Description
1250mm , 1 + 5 , PLC control Skip stranding machine for power cable 3B 4B 5B 6B
Description and application:
Our bow type laying up machine offers remarkable advantages. It exhibits a productivity edge over the conventional cradles type cabling machines. This machine is highly versatile, suitable for stranding soft structure cables like control cables, Aluminum Conductor Steel Reinforced (ACSR) overhead cables, power cables, and also bare copper, aluminum and aluminum alloy wires, accommodating up to 7 cores. The back - twist function can be chosen as per your requirement. When it comes to the drive, it can be either independent or via a ground shaft, providing you with options to better suit your production setup and preferences.
Features:
  1. User friendly human-machine interface for effortless operation and comprehensive monitor
  2. Adopting PLC for automatic pitch adjustment
  3. Can be equipped with a back-twist mode with a maximum of 100%.
  4. Independent drive or ground shaft drive
  5. Utilisation of AC induction servo motors for reilable and energy-efficient operation
Specification:

Payoff bobbin(mm)

Max. rotation speed

(r/min)

Single wire diameter

(mm)

Pitch

(mm)

Max. OD(mm)

Power(KW)

Caterpillar(kg)

Take-up

Central height(mm)

 Length * width(m)
3B 4B 5B 6B Soft conductor Hard conductor
Ø630 880 850 830 800 Ø5～Ø10 Ø1.5～Ø4.0 44-333 15 37 800 PN1250 1000 35×5
Ø800 680 650 620 600 Ø5～Ø10 Ø2.0～Ø5.0 47-228 20 37 1250 PN1600 1000 43×5
Ø1000 430 400 370 350 Ø8～Ø15 Ø3.0～Ø6.0 90-1400 24 37 1600 PN1600 1000 50×6
Ø1250 330 288 270 250 Ø8～Ø15 Ø3.0～Ø6.0 48-1500 60 55 2000 PN2000 1000 55×6
Ø1600 250 220 200 180 Ø10～Ø20 Ø3.5～Ø8.0 60-1500 70 90 2000 PN2500 1000 60×7

Main components:
  1. Central pay-off stand
  2. Wire guiding stand
  3. Stranding host
  4. Filer payoff stand (Optional)
  5. Assembling die holder
  6. Central taping machine
  7. Armouring machine
  8. Meter counter
  9. Capstan/Hual-off/Caterpillar
  10. Take up with traversing
  11. Control system
  12. Transmission system
  13. Wearing parts

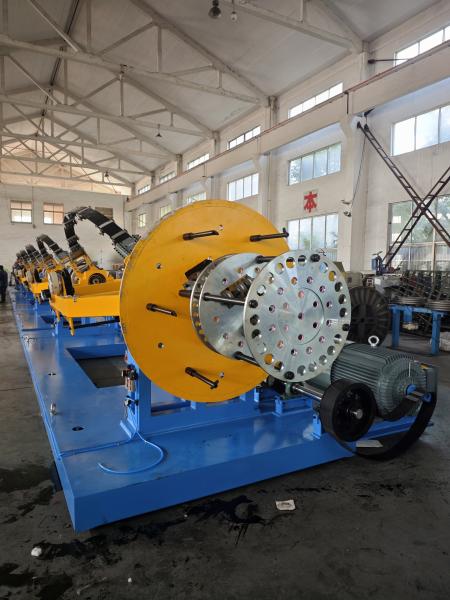

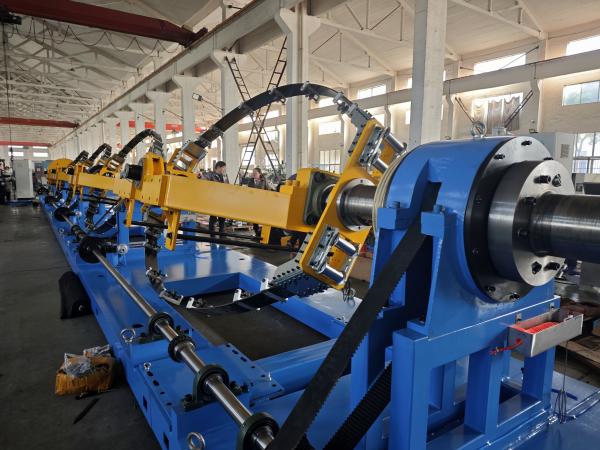

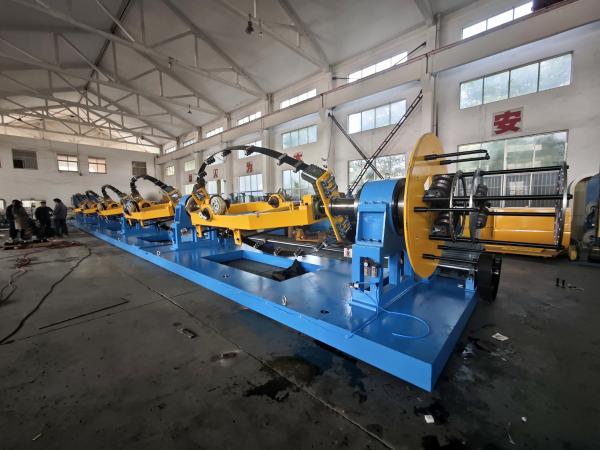

Product images:
1250mm skip stranding machine for upto 7 core cabling with or without back-twist1250mm skip stranding machine for upto 7 core cabling with or without back-twist1250mm skip stranding machine for upto 7 core cabling with or without back-twist1250mm skip stranding machine for upto 7 core cabling with or without back-twist1250mm skip stranding machine for upto 7 core cabling with or without back-twist1250mm skip stranding machine for upto 7 core cabling with or without back-twist1250mm skip stranding machine for upto 7 core cabling with or without back-twist
