0.7Mpa Horizontal Fire Tube Boiler Fully Automatic Low Pressure Steam Boiler
0.7Mpa Horizontal Fire Tube Boiler Fully Automatic Low Pressure Steam Boiler
0.7Mpa Horizontal Fire Tube Boiler Fully Automatic Low Pressure Steam Boiler
0.7Mpa Horizontal Fire Tube Boiler Fully Automatic Low Pressure Steam Boiler
Specifications
Brand Name :
YONGXING
Model Number :
WNS6-1.25-YQ
Certification :
ISO9001,ISO14001,A-CLASS，SGS,BV
Place of Origin :
HENAN
MOQ :
1set
Price :
negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
1000SETS/MONTH
Delivery Time :
15-30DAYS
Packaging Details :
Nude packing+wooden box+steel box ,and etc.
FUEL :
NATURAL GAS/LPG/CITY GAS ,ETC
LOW NITROGEN :
support if customer request
USAGE :
Food,texitile,green house ,hotel and so on
PRESSURE :
0.7Mpa,1.0Mpa,1.25Mpa,1.6Mpa,2.5Mpa
Outer Material :
Stainless steel or Color steel
Pressure :
Low pressure
Structure :
Fire Tube
Name :
Oil steam boiler
Description

Gas Fired Packaged new gas boilers prices with European Burner for Garment Factory

new gas boilers prices Boiler technology

1, The well-designed center's regenerative three-return combustion chamber and optimized heat transfer surface design ensure optimum heat transfer and make the boiler thermal efficiency more than 90%.
2, high-quality burner, fuel utilization rate of more than 99.9%, smoke emissions are clean, no pollution.
3, high-quality insulation layer to ensure that even in the cold outdoors, the surface of the furnace body heat dissipation is less than 1%.
4, Self-control combustion: fully automatic burner and monitoring system to reduce boiler maintenance management and achieve precise control of the operation process.
5, New gas boilers prices Integrated configuration: According to the integrated configuration standard, all the accessories are assembled and factoryized, which makes the on-site installation more convenient and faster.

New gas boilers prices technical data sheet as follow (for reference only) :

Project, unit and data, model WNS0.5-1-Y(Q) WNS1-1-Y(Q) WNS2-1-Y(Q) WNS3-1-Y(Q) WNS4-1.25-Y(Q) WNS5-1.25-Y(Q) WNS6-1.25-Y(Q) WNS8-1.25-Y(Q) WNS10-1.25-Y(Q)
Rated evaporation t/h 0.5 1 2 3 4 5 6 8 10
Rated steam pressure MPa 1 1 1 1 1.25 1.25 1.25 1.25 1.25
Rated steam temperature °C 184 184 184 184 194 194 194 194 194
Rated feed water temperature °C 20 20 20 20 20 20 105 105 105
Total heated area M2 15.4 30.7 60.9 90.5 124.7 128.3 136.3 187 217.6
exhaust temperature °C 230 230 230 230 220 220 220 220 220
Gas boiler efficiency % 91.78 91.44 91.77 92.14 92.3 92.03 92.15 91.87 92.29
Applicable fuel / Diesel, heavy oil, natural gas, liquefied gas, city gas
Diesel oil.Heavy oil.Natural gas.City gas
Ringman black / <1 level
Fuel consumption Diesel Kg/h 31.5 63 125.5 189 253 315 376 501 628
heavy oil Kg/h 33.02 66.99 131.72 197.55 263.12 328.55 394.26 525.57 680
natural gas Nm3/h 37.5 75 151 225 300 375 449 600 750
Liquefied gas Nm3/h 12.66 25.38 50.68 76.01 101.24 126.41 151.7 202.2 252.8
City gas Nm3/h 75 150 302 450 600 750 898 1200 1500
Boiler weight Empty furnace T 2.7 4.87 7.32 10.1 12.86 14.7 15.3 18.6 21.3
Full of water T 3.7 6.4 12.8 16 twenty two 24.7 25.5 32.5 38
using electric V 380V/50Hz
Main steam valve diameter (DN) Mm 50 65 65 100 100 125 125 150 150
Safety valve diameter (DN) Mm 50 50×2 50×2 50×2 50×2 80 50 80 50 80×2 80×2
Drain valve diameter (DN) Mm 40 40 40 40 40 40 40 40 40
Feed pump model SS JGGC1 JGGC2 JGGC2 JGGC4 JGGC4 JGGC6 JGGC8 JGGC12 JGGC12
Chimney caliber Mm Φ316 Φ316 Φ400 Φ530 Φ530 Φ530 Φ530 Φ680 Φ680

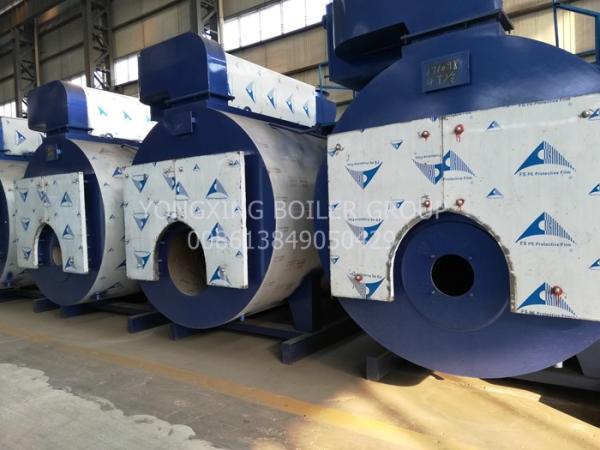

new gas boilers prices in factory work shop :

0.7Mpa Horizontal Fire Tube Boiler Fully Automatic Low Pressure Steam Boiler0.7Mpa Horizontal Fire Tube Boiler Fully Automatic Low Pressure Steam Boiler
