Furnace Oil Fired Steam Boiler Water Tube Steam Boiler Environmental Friendly
Furnace Oil Fired Steam Boiler Water Tube Steam Boiler Environmental Friendly
Furnace Oil Fired Steam Boiler Water Tube Steam Boiler Environmental Friendly
Furnace Oil Fired Steam Boiler Water Tube Steam Boiler Environmental Friendly
Specifications
Brand Name :
YONGXING
Model Number :
WNS3-1.25-YQ
Certification :
ISO9001,ISO14001,A-CLASS，SGS,BV
Place of Origin :
HENAN
MOQ :
1set
Price :
negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
1000SETS/MONTH
Delivery Time :
15-30DAYS
Packaging Details :
Nude packing+wooden box+steel box ,and etc.
FUEL :
NATURAL GAS/LPG/CITY GAS ,ETC
LOW NITROGEN :
support if customer request
USAGE :
Food,texitile,green house ,hotel and so on
PRESSURE :
0.7Mpa,1.0Mpa,1.25Mpa,1.6Mpa,2.5Mpa
Outer Material :
Stainless steel or Color steel
Pressure :
Low pressure
Name :
Oil fired central heating boilers
Type :
Natural Circulation
Description

China Industrial Fire Tube Natural Gas Diesel Oil LPG Fired Steam Boiler Price

Yongxing boiler has good quality and Boiler Price cheap.

Fearures of good boiler price

1. Good to use
It is easy to mix with air during combustion, has low smoke loss, high boiler efficiency;

less sulfur and ash in fuel, high temperature coking and corrosion on heating surface;

high flue gas flow rate, small overall boiler volume, boiler metal consumption Low volume.

2. Flexible adjustment performance


The calorific value of the gas is easy to adjust and can be mixed with two kinds of fuels;

the same boiler can be applied to a variety of fuels;

it has a strong ability to adapt to thermal load fluctuations, and it is easy to achieve combustion regulation.

3. Small environmental pollution


Direct use does not break, the operation is quiet; the ash and sulfur content is much lower than coal and oil fuel;

the gas body does not produce a large amount of ash to be treated when burning coal;

the pollution to the soil is small; the dust in the smoke The amount is low and the air pollution is small; the main pollutant is the nitrogen oxides produced during combustion.

4. Convenient transportation


Mainly pipeline transportation, no flying, noise and other pollution during vehicle transportation; direct use, no need to be broken before burning coal.

Boiler Price technical data sheet as follow (for reference only) :

Project, unit and data, model WNS0.5-1-Y(Q) WNS1-1-Y(Q) WNS2-1-Y(Q) WNS3-1-Y(Q) WNS4-1.25-Y(Q) WNS5-1.25-Y(Q) WNS6-1.25-Y(Q) WNS8-1.25-Y(Q) WNS10-1.25-Y(Q)
Rated evaporation t/h 0.5 1 2 3 4 5 6 8 10
Rated steam pressure MPa 1 1 1 1 1.25 1.25 1.25 1.25 1.25
Rated steam temperature °C 184 184 184 184 194 194 194 194 194
Rated feed water temperature °C 20 20 20 20 20 20 105 105 105
Total heated area M2 15.4 30.7 60.9 90.5 124.7 128.3 136.3 187 217.6
exhaust temperature °C 230 230 230 230 220 220 220 220 220
Gas boiler efficiency % 91.78 91.44 91.77 92.14 92.3 92.03 92.15 91.87 92.29
Applicable fuel / Diesel, heavy oil, natural gas, liquefied gas, city gas
Diesel oil.Heavy oil.Natural gas.City gas
Ringman black / <1 level
Fuel consumption Diesel Kg/h 31.5 63 125.5 189 253 315 376 501 628
heavy oil Kg/h 33.02 66.99 131.72 197.55 263.12 328.55 394.26 525.57 680
natural gas Nm3/h 37.5 75 151 225 300 375 449 600 750
Liquefied gas Nm3/h 12.66 25.38 50.68 76.01 101.24 126.41 151.7 202.2 252.8
City gas Nm3/h 75 150 302 450 600 750 898 1200 1500
Boiler weight Empty furnace T 2.7 4.87 7.32 10.1 12.86 14.7 15.3 18.6 21.3
Full of water T 3.7 6.4 12.8 16 twenty two 24.7 25.5 32.5 38
using electric V 380V/50Hz
Main steam valve diameter (DN) Mm 50 65 65 100 100 125 125 150 150
Safety valve diameter (DN) Mm 50 50×2 50×2 50×2 50×2 80 50 80 50 80×2 80×2
Drain valve diameter (DN) Mm 40 40 40 40 40 40 40 40 40
Feed pump model SS JGGC1 JGGC2 JGGC2 JGGC4 JGGC4 JGGC6 JGGC8 JGGC12 JGGC12
Chimney caliber Mm Φ316 Φ316 Φ400 Φ530 Φ530 Φ530 Φ530 Φ680 Φ680

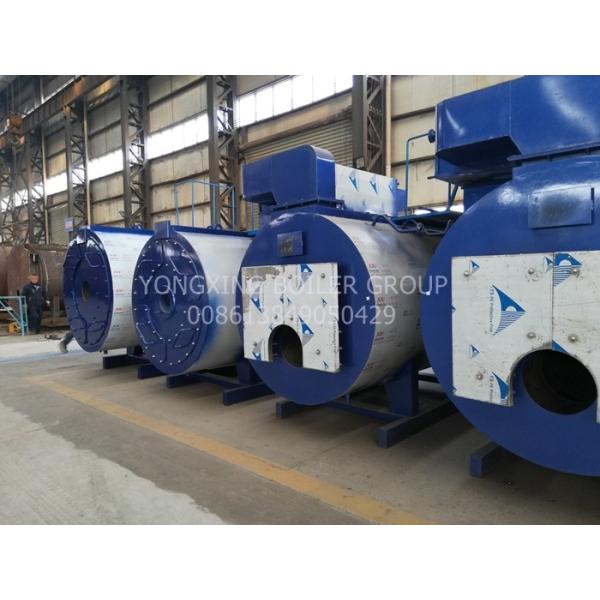

Furnace Oil Fired Steam Boiler Water Tube Steam Boiler Environmental FriendlyBoiler in factory work shop :
