Horizontal Gas Fired Steam Boiler Water Tube Package Boiler 10-30 T/H
Horizontal Gas Fired Steam Boiler Water Tube Package Boiler 10-30 T/H
Specifications
Brand Name :
YONGXING
Model Number :
SZS10-30-1.25/1.6-YQ
Certification :
ISO9001,ISO14001,A-CLASS，SGS,BV
Place of Origin :
HENAN PROVINCE
MOQ :
1set
Price :
negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
1000SETS/MONTH
Delivery Time :
15-30DAYS
Packaging Details :
Nude packing+wooden box+steel box ,and etc.
Fuel :
NATURAL GAS/LPG/CITY GAS ,ETC
Pressure :
10bar,12.5bar,16bar
Capacity :
10t,15t,20t,25t,30ton
Circulation :
3return or 4 return
applicable :
Food industrial
Save energy :
Condensing Type
Structure :
Fire and water tube
Efficiency :
＞96%
Name :
natural gas fired boiler
Output :
steam
Description

10-30t/h SZS Oil and Gas Fired Steam Boiler with Horizontal Style and Water Tube Structure

SZS fuel gas boiler performance advantages:

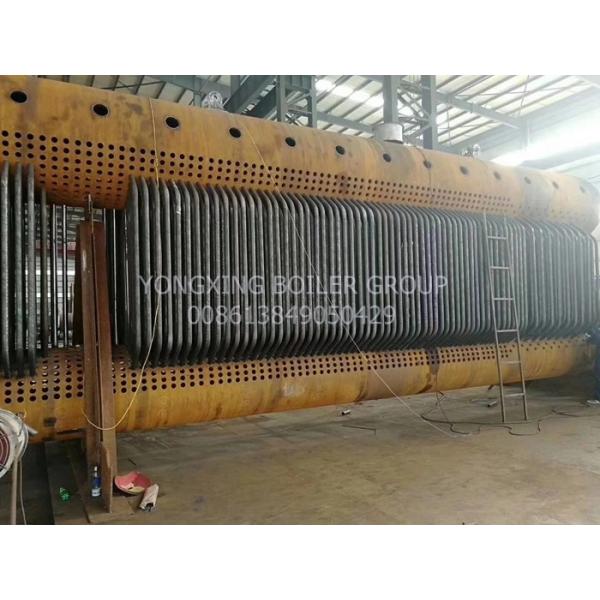

1. Double pot barrel "D" type layout is adopted, with compact structure, small occupation area and good flame filling degree.

2. The furnace adopts membrane water-cooled wall structure, and the whole boiler adopts air-tightness inner guard plate of fully closed welded structure, and the furnace wall is well sealed.

3. the boiler layout heating surface area is large, the design has enough space for soda, ensure the stability of boiler parameters.

4. The tail part is equipped with smoke condensation recovery device, which can effectively control the smoke discharge temperature, and the boiler has high thermal efficiency.

5. High thermal resistance material is used as the insulation layer with good insulation performance.

The outer layer of boiler is protected by pressing plate, and the appearance is beautiful.

6. Adopt quick loading structure, the whole boiler is designed on a strong steel base, which is convenient for installation and transportation.

7. The furnace is equipped with inspection holes, which provide great convenience for use and maintenance.

The top of the furnace is equipped with explosion-proof door.

8. the use of automatic burner, water supply using continuous electric regulation, high combustion efficiency. And has multiple protection functions, safe and reliable operation.

1. Water softener
2. Water tank
3. Deaerator pump
4. Deaerator
5. Feedwater Pump
6. Boiler
7. Steam Distributor
8. Circulating Pump
9. Condenser
10. Burner

Horizontal Gas Fired Steam Boiler Water Tube Package Boiler 10-30 T/H

Typical SZS series steam boiler technical parameter list
model SZS10-1.6-QY SZS15-1.6-QY SZS20-1.6-QY SZS25-1.6-QY SZS35-1.6-QY SZS45-1.6-QY
Rated evaporation t/h 10 15 20 25 35 45
Rated steam pressure MPa 1.6
Rated steam temperature °C 204
Feed water temperature °C 105
Boiler design thermal efficiency% 93.5%~100.6%
Common fuel Natural gas / light diesel
Combustion method Forced ventilation, micro-positive pressure combustion
Exhaust gas temperature °C 55~150
Fuel consumption (natural gas) Nm3/h 703 1055 1406 1758 2461 3164
Gas supply pressure (natural gas) mbar 20~30 30~50 30~50 30~50 50 50~200
Maximum transport weight t 27 32 37 42 51 35
Maximum transport size m 6.7x3.2x3.5 7.2x3.4x3.4 7.7x3.6x3.9 8.5x3.8x4.1 9.6x4.1x4.3 10.0x3.5x3.8
Mainframe dimensions (including platform, energy saver) 9.0x5.6x4.4 9.9x5.6x4.0 10.5x5.7x4.6 11.3x6.0x4.8 12.4x6.6x5.0 13.0x6.8x5.2
Description:
1. The boiler is mainly designed with natural gas and light diesel oil. It is also suitable for city gas, liquefied petroleum gas, biogas, coke oven gas and mine gas.
2. The fuel consumption is calculated based on the calorific value of natural gas 36006KJ/Nm3 and the calorific value of light oil 42705KJ/kg.
3. We follow the principle of continuous improvement and improvement of product performance. The data of the new generation products may be changed. The data in the table is for reference only.
