Horizontal Thermal Oil Boiler Coal Fired Thermal Fluid Heating System For Chemical Industry
Horizontal Thermal Oil Boiler Coal Fired Thermal Fluid Heating System For Chemical Industry
Specifications
Brand Name :
YONGXING
Model Number :
YY(W)L
Certification :
ISO9001,ISO14001,SGS
Place of Origin :
HENAN
MOQ :
1set
Price :
negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000sets/year
Delivery Time :
10-15days
Packaging Details :
wood box package for boiler accessories and nude packing for boiler main part
Structure :
coil pipe
Application field :
food factory, dyeing,Plastic industry,Textile industry,Rubber industry
color :
blue,red,sliver
Quality control :
X-ray inspection
fuel burning style :
chamber combustion
Description

Top manufacturer YLW horizontal type coal fired thermic heater thermal oil furnace for chemical industry

Coal-fired thermic heater

1. The coal-fired heat-conducting oil furnace produced by the company has reliable performance. The bituminous coal is used as fuel, the heat-conducting oil is used as the heat carrier, the circulating oil pump is used for liquid phase circulation, and the heat energy is transferred to the DC-type special industrial furnace which is reheated after using the heat equipment. It can meet the needs of users in various temperature ranges.

2. Widely used in petrochemical, textile printing and dyeing, plastic processing, paper making, oil processing, synthetic fiber, wood processing, fiberboard hot pressing, building materials, gypsum board drying, food, baking paint and other industries.

Product Features:

1. Furnace body adopt unique patent technology, add top coiler, absorb flue gas waste heat and protect furnace top, so this improves service life of boiler.

2.Fuel burn layer and adiabatic combustion, design patent energy-saving arch, burn sufficiently and improve thermal efficiency of boiler better.

3. bi-coil design, safe & efficient heat conduction
4.intelligent controller with PLC and touch screen, fully automatic operation
5. well sealed boiler body & piping

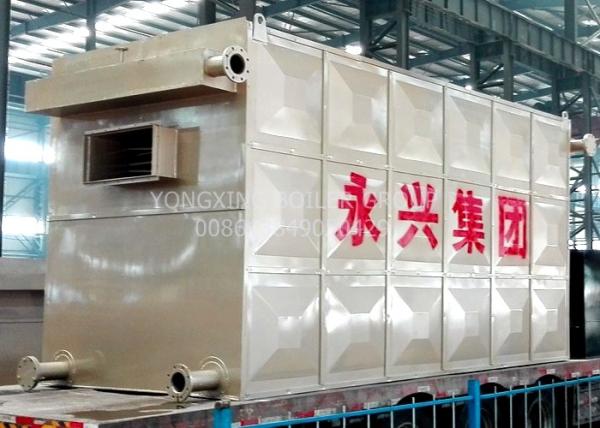

Horizontal Thermal Oil Boiler Coal Fired Thermal Fluid Heating System For Chemical Industry

VERTICAL YGL HAND FEED COAL/WOOD FIRED THERMAL OIL HEATER DATA SHEET

Model data YGL-120MA YGL-240MA YGL-350MA YGL-500MA YGL-700MA YGL-1000MA YGL-1200MA YGL-1400MA
Rated thermal power Kw 120 240 350 500 700 1000 1200 1400
Thermal efficiency% 73 73 73 73 73 73 73 73
Design pressure Mpa 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6
Medium higher temperature °C 320 320 320 320 320 320 320 320
Cycle oil m3/h 12.5 20 40 60 80 100 100 100
Piping connection diameter DN 50 80 80 100 100 125 125 125
Full system installed capacity Kw 8 10 18 122 25 35 35 35
Coal burning type Ⅱ,Ⅲ soft coal,BIOMASS PELLET
Coal weight Kg/h 28 56 80 100 155 185 240 290
Boiler Size Diameter mm 1215 1500 1700 1700 1960 2050 2160 2290
Height mm 2310 2750 3060 3475 3805 4415 4760 5445
Total weight Kg 2500 3200 4800 5300 5800 6200 6700 7300

VERTICAL YLL TYPE CHAIN GRATE AUTOMATIC COAL FEEDER THERMAL OIL HEATER DATA SHEET

Model data YLL-700MA YLL-1000MA YLL-1200MA YLL-1400MA YLL-2000MA YLL-2800MA
Rated thermal power Kw 700 1000 1200 1400 2000 2800
Thermal efficiency% 92
Design pressure Mpa 1
Medium higher temperature °C 350
Cycle oil m3/h 60 80 100 100 160 180
Piping connection diameter DN 100 100 125 125 150 150
Full system installed capacity Kw 25.9 31.5 43.45 43.45 62.75 70
Coal burning type Ⅱ,Ⅲ soft coal,BIOMASS PELLET
Coal weight Kg/h 145 180 225 270 392 535
Boiler Size L mm 4710 4710 4710 4710 5830 6390
W mm 2080 2170 2280 2280 2450 2870
H mm 4033 4608 4855 5430 5826 3450
Total weight Kg 10886 11812 12980 13935 21680 28000

YLW HORIZONTAL CHAIN GRATE TYPE THERMAL OIL BOILER HEATERS DATA SHEET

project Unit YLW-1400MA YLW-2000MA YLW-2400MA YLW-3000MA
(120*104Kcal) (170*104Kcal) (200*104Kcal) (258*104Kcal)
Rated thermal power KW 1400 2000 2400 3000
Thermal efficiency % ≥73 ≥73 ≥73 ≥73
design pressure Mpa 1.1 1.1 1.1 1.1
Medium maximum temperature ℃ 320 320 320 320
Circulating oil m3/h 100 160 180 200
Piping connection caliber DN 125 150 150 150
Full system installed capacity KW 49.5 75 75 87
Fuel type MA MA MA MA
Coal consumption kg/h 300 400 470 565
Dimensions (length * width * height) mm 4703*2270*4300 5820*2270*3950 5820*2270*4259 6790*2270*4395
total weight kg 20500 21500 24600 33760
