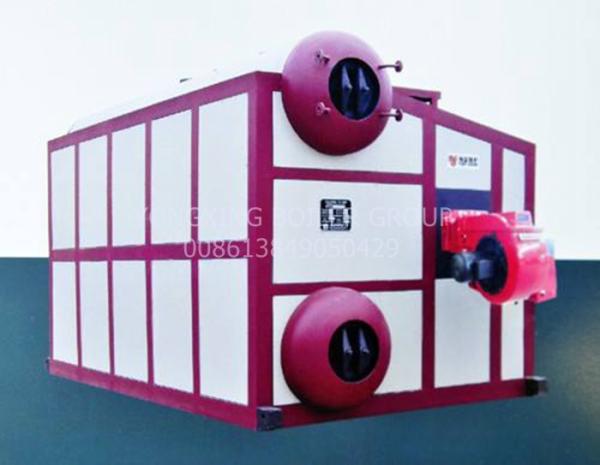

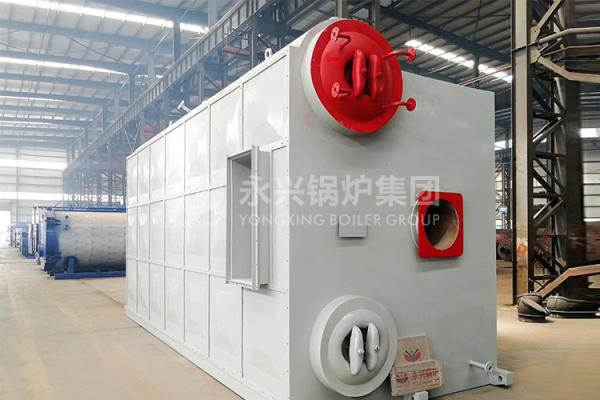

Professional Gas Fired Steam Boiler 8 Ton Flexible Water Tube Boiler Condensing Type
Professional Gas Fired Steam Boiler 8 Ton Flexible Water Tube Boiler Condensing Type
Professional Gas Fired Steam Boiler 8 Ton Flexible Water Tube Boiler Condensing Type
Professional Gas Fired Steam Boiler 8 Ton Flexible Water Tube Boiler Condensing Type
Specifications
Brand Name :
YONGXING
Model Number :
SZS10-30-1.25/1.6-YQ
Certification :
ISO9001,ISO14001,A-CLASS，SGS,BV
Place of Origin :
HENAN PROVINCE
MOQ :
1set
Price :
negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
1000SETS/MONTH
Delivery Time :
15-30DAYS
Packaging Details :
Nude packing+wooden box+steel box ,and etc.
FUEL :
NATURAL GAS/LPG/CITY GAS ,ETC
PRESSURE :
10bar,12.5bar,16bar
Capacity :
10t,15t,20t,25t
Circulation :
3return or 4 return
Name :
industrial gas fired steam boilers
Save energy :
Condensing Type
Structure :
Fire and water tube
Efficiency :
＞96%
Description

Professional manufacturer 8 Ton SZS steam boiler and large gas LPG fired boiler with low pressure

SZS series oil-fired gas-fired steam boiler structure features:

1. "D" type arrangement: compact structure, small footprint, good flame fullness.
Adopt D type arrangement, full wet back structure which is popular in the world, combustor adopt large capacity design, make combustion more complete.

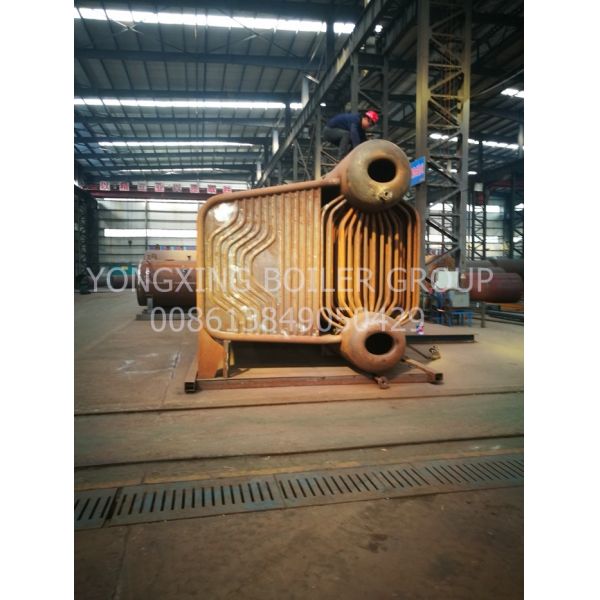

2. Membrane wall structure: the furnace body adopts membrane water-cooled wall structure, and the whole boiler adopts gas-tight inner guard plate with completely closed and welded structure, with good sealing performance of the furnace wall; Reduce smoke loss and high thermal efficiency.

3. Large heating surface and good insulation effect: large furnace volume, sufficient radiant heating surface, sufficient fuel combustion, good environmental performance;
Boiler adequate output, using overload capacity;
Using high heat resistant material as heat insulation layer, heat preservation performance is good.

4. Fully automatic operation: the flue gas condensation recovery device is set at the tail, which can effectively control the exhaust gas temperature, and the boiler has high thermal efficiency;
Equipped with a famous and efficient brand burner and auxiliary machinery, accessories, automatic operation, continuous electric regulation of water supply, high combustion efficiency.

5. Explosion-proof door with inspection hole: in order to ensure the ignition safety of the boiler, the top of the boiler is designed with explosion-proof door.
The furnace has inspection holes to make the boiler safe and reliable and easy to maintain.

Professional Gas Fired Steam Boiler 8 Ton Flexible Water Tube Boiler Condensing TypeProfessional Gas Fired Steam Boiler 8 Ton Flexible Water Tube Boiler Condensing Type

Typical SZS series steam boiler technical parameter list
model SZS10-1.6-QY SZS15-1.6-QY SZS20-1.6-QY SZS25-1.6-QY SZS35-1.6-QY SZS45-1.6-QY
Rated evaporation t/h 10 15 20 25 35 45
Rated steam pressure MPa 1.6
Rated steam temperature °C 204
Feed water temperature °C 105
Boiler design thermal efficiency% 93.5%~100.6%
Common fuel Natural gas / light diesel
Combustion method Forced ventilation, micro-positive pressure combustion
Exhaust gas temperature °C 55~150
Fuel consumption (natural gas) Nm3/h 703 1055 1406 1758 2461 3164
Gas supply pressure (natural gas) mbar 20~30 30~50 30~50 30~50 50 50~200
Maximum transport weight t 27 32 37 42 51 35
Maximum transport size m 6.7x3.2x3.5 7.2x3.4x3.4 7.7x3.6x3.9 8.5x3.8x4.1 9.6x4.1x4.3 10.0x3.5x3.8
Mainframe dimensions (including platform, energy saver) 9.0x5.6x4.4 9.9x5.6x4.0 10.5x5.7x4.6 11.3x6.0x4.8 12.4x6.6x5.0 13.0x6.8x5.2
Description:
1. The boiler is mainly designed with natural gas and light diesel oil. It is also suitable for city gas, liquefied petroleum gas, biogas, coke oven gas and mine gas.
2. The fuel consumption is calculated based on the calorific value of natural gas 36006KJ/Nm3 and the calorific value of light oil 42705KJ/kg.
3. We follow the principle of continuous improvement and improvement of product performance. The data of the new generation products may be changed. The data in the table is for reference only.
