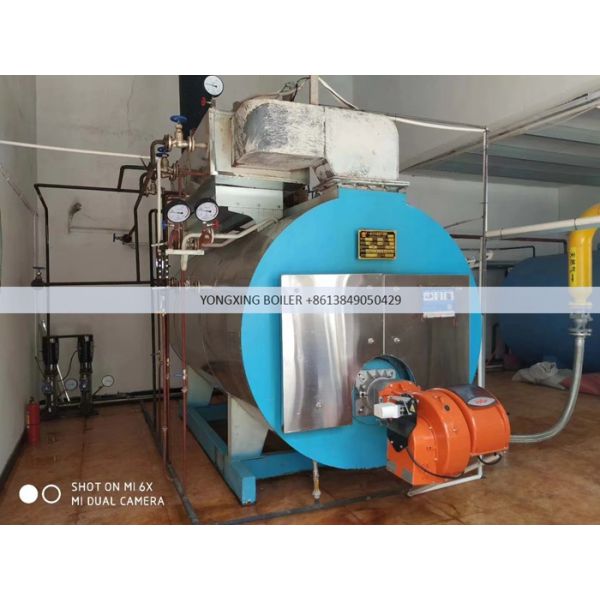

Perfect 4 Ton Natural Gas Fired Steam Boiler WNS 4-1.25-YQ Industrial Fire Tube
Perfect 4 Ton Natural Gas Fired Steam Boiler WNS 4-1.25-YQ Industrial Fire Tube
Perfect 4 Ton Natural Gas Fired Steam Boiler WNS 4-1.25-YQ Industrial Fire Tube
Perfect 4 Ton Natural Gas Fired Steam Boiler WNS 4-1.25-YQ Industrial Fire Tube
Specifications
Brand Name :
YONGXING
Model Number :
WNS4-1.25-YQ
Certification :
ISO9001,ISO14001,A-CLASS，SGS,BV
Place of Origin :
HENAN
MOQ :
1set
Price :
negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
1000SETS/MONTH
Delivery Time :
15-30DAYS

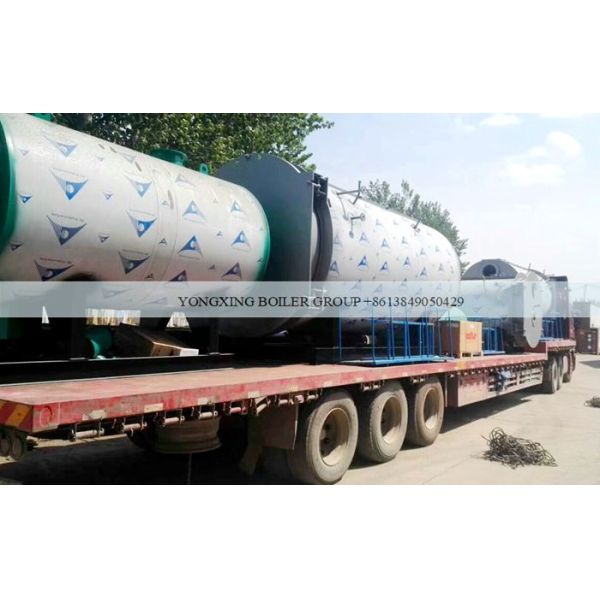

Packaging Details :
Nude packing+wooden box+steel box ,and etc.
FUEL :
NATURAL GAS/LPG/CITY GAS ,ETC
LOW NITROGEN :
support if customer request
USAGE :
Food,texitile,green house ,hotel and so on
PRESSURE :
0.7Mpa,1.0Mpa,1.25Mpa,1.6Mpa,2.5Mpa
Name :
Natural Gas Fired Steam Boiler
Capacity :
WNS4-1.25-YQ
Description

The 4 ton gas fired steam boiler is mainly composed of a boiler body, a connecting flue, a burner, a steam and water system, instruments, economizer, condenser and etc.

Burning clean, no pollution, easy operation and sufficient output. When using fuel oil, light diesel oil is generally used as fuel; when gas is used, coal-gas, natural gas and liquefied gas are generally used as fuel.


Technical parameters of 4 ton gas fired steam boiler
Furnace type: WNS4-1.25-YQ
Evaporation: 4t/h
Rated pressure: 1.25MPa
Heating area: 108m2
Natrual consumption: 309Nm3/h
Exhaust gas temperature: 200 ° C
Boiler water capacity:7.3m3

Boiler weight :21.1tons

Boiler max ship size:6379X3095X3760mm

System power :24kw

4 ton gas fired steam boiler gas consumption


1. Since the calorific value of natural gas is calculated at 8500 kcal/cubic, the thermal efficiency of a 4 ton gas fired steam boiler is 95%. A gas fired steam boiler with 4 tons of steam per hour.

2. If the fuel is natural gas, the heat is 2.4 million kcal, and the gas consumption is divided by 2400000 kcal divided by 95% divided by 8500 = 297.21 cubic meters per hour.

3. That is, 4 tons of natural gas is used per gas. The hour is about 297 cubic meters.

4. Of course, this is the basic estimate. Because the actual boiler consumes much gas, it depends on the efficiency of the boiler operation.

5. The efficiency of Yongxing gas fired steam boiler can be guaranteed at least 95%. In other cases, it depends on the operation site. Objective factors to determine.

4 ton gas fired steam boiler project case

Project address: Bangkok, Thailand
Purchase equipment: 4 tons of WNS gas steam boiler
Application: Surface treatment steam supply for the pickling steel industry

Bangkok Huachi Plate mainly produces various hot-rolled pickling plates with a thickness of 5.0mm or less, with an annual output of 600,000 tons. The customer purchased a 4 ton WNS gas fired steam boiler from Yongxing. There is a lot of participation in the steel industry. Many processes in the industry require the use of boiler steam to treat the surface of the material. The gas fired steam boiler has high combustion efficiency, saves fuel, and has low investment cost for purchasing fuel. The full flange butt weld has a long service life and low maintenance cost.

Perfect 4 Ton Natural Gas Fired Steam Boiler WNS 4-1.25-YQ Industrial Fire Tube technical data sheet as follow (for reference only) :

Model Rated Rated working Rated steam Suitable Feed water
output pressure (Mpa) temperature (ºC) fuel kind temperature (ºC)
(t/h)
WNS0.5-0.7/1.0/1.25-YQ 0.5 0.7/1.0/1.25 170/184/194 heavy oil/light oil,natural gas/lpg/city gas 20
WNS0.7-0.7/1.0/1.25-YQ 0.7 0.7/1.0/1.25 170/184/194 20
WNS0.8-0.7/1.0/1.25-YQ 0.8 0.7/1.0/1.25 170/184/194 20
WNS1-0.7/1.0/1.25-YQ 1 0.7/1.0/1.25 170/184/194 20
WNS1.5-0.7/1.0/1.25-YQ 1.5 0.7/1.0/1.25 170/184/194 20
WNS2-1.0/1.25/1.6-YQ 2 1.0/1.25/1.6 184/194/204 20
WNS3-1.0/1.25/1.6-YQ 3 1.0/1.25/1.6 184/194/204 20
WNS4-1.0/1.25/1.6-YQ 4 1.0/1.25/1.6 184/194/204 20
WNS5-1.0/1.25/1.6-YQ 5 1.0/1.25/1.6 184/194/204 20
WNS6-1.0/1.25/1.6-YQ 6 1.0/1.25/1.6 184/194/204 20
WNS8-1.25/1.6-YQ 8 1.25/1.6 194/204 20
WNS10-1.25/1.6-YQ 10 1.25/1.6 194/204 20
WNS12-1.25/1.6-YQ 12 1.25/1.6 194/204 20
WNS15-1.25/1.6-YQ 15 1.25/1.6 194/204 20
WNS20-1.25/1.6-YQ 20 1.25/1.6 194/204 20

Welcome for your inquiry .
