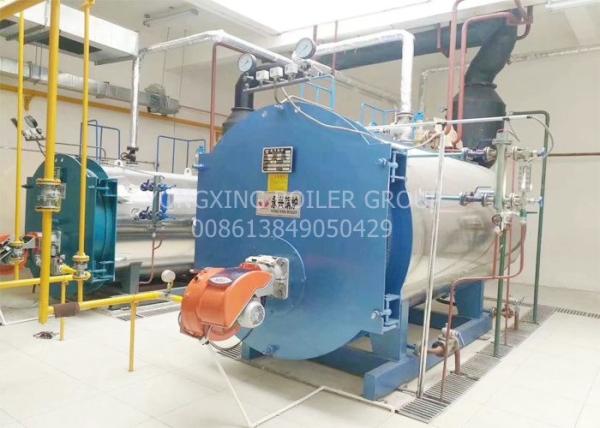

5 ton industrial gas diesel oil fired steam boiler for pharmaceutical industry

5 ton gas fired steam boiler main parameters:

1. Rated evaporation: 5T
2. Rated working pressure: 1.25-2.5MPa
3. Rated water supply temperature: 105 ° C
4. Rated steam temperature: 194 ° C
5. Feed water temperature: 20 ° C
6. Design thermal efficiency: 92%
7. Applicable fuel: light oil, heavy oil, natural gas, liquefied gas
8. Exhaust gas temperature <140 ° C
9. Flue gas concentration <1 grade Ringman
10. Combustion method: Room combustion
11. Control method: Frequency conversion automatic

5 ton gas fired steam boiler Features:
1. This series of boilers is a quick-loading horizontal three-return water-back type fire tube structure.
2, using the wave furnace and threaded pipe to enhance heat transfer technology, the boiler structure is compact, reasonable, good heat transfer effect, low metal consumption.
3. can be imported or domestically produced the most advanced burner according to customer requirements. The combustion equipment, control system and boiler are integrated to form a compact overall structure.
4. boiler appearance and shape patent, designed by Central South University of Technology. The appearance is beautiful, the color is bright, and the quality is displayed in the details.
5. the boiler drum tube plate, the furnace tube, the smoke chamber tube plate are all formed by mold, and the butt welding is carried out to ensure the strength and manufacturing quality of the boiler.
6. The flue gas diverting chamber is in the form of a water back.
7. The exterior insulation is made of the thickest layer of the most advanced insulation material, and the outer packaging is made of stainless steel color plate, which makes the insulation effect excellent.
8. The front and rear smoke boxes adopt double-layer sealed movable structure, and adopt high-temperature resistant ceramic fiber packing material, which has excellent sealing performance, and the smoke box door is easy to open and easy to overhaul.

5 ton industrial gas diesel oil fired steam boiler for pharmaceutical industry

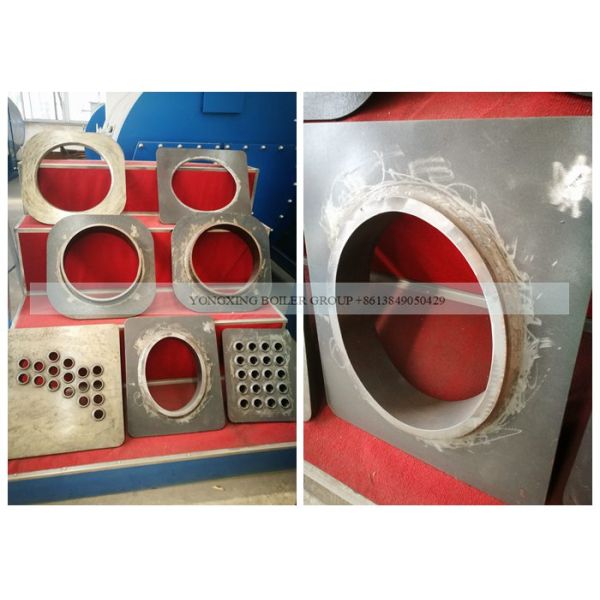

Gas fired steam boiler quality control samples .All boiler will be weld as the sample quality.
