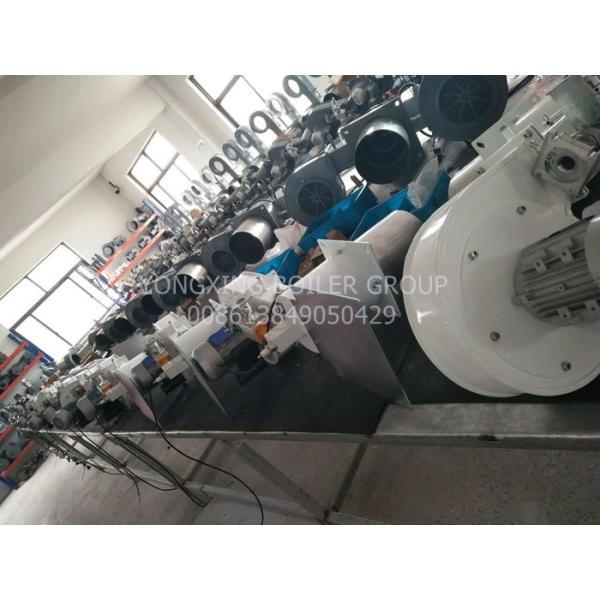

Professional Industrial Diesel Burner Oil Boiler Burner Various Oil Bruciatore Ignition Transformer
Professional Industrial Diesel Burner Oil Boiler Burner Various Oil Bruciatore Ignition Transformer
Specifications
Brand Name :
YONGXING
Model Number :
YX120DSG
Certification :
CE,ISO9001,ISO14001,SGS
Place of Origin :
ZHEJIANG
MOQ :
1set
Price :
negotiable
Packaging Details :
CARON BOX,WOODEN BOX,PALLETS AND ETC
Burner oil :
light oil/DIESEL
Burner design :
Italy baltur design
Burner out put :
1500kw
Burner applications :
Boilers,for dryers,for drying kilin,for rotary dryer
color :
Red/Green/Orange
Control :
Two stage control
Name :
Industrial Diesel Burner Oil Boiler
Application :
copper soldered
Description

Professional 1500kw oil boiler burner various oil bruciatore ignition transformer smelting furnace

Oil boiler burner operating instructions

Inspection before commissioning
1. Check if the diesel is in place, the fuel line is clean and unobstructed, and the valve is open.
2. Whether there is pipeline leakage or not, the pipeline installation is reasonable.
3. Whether the oil returning oil pipeline is installed correctly, the return oil pipe is not allowed to install the valve

Internal inspection of Oil boiler burner
1. Whether the burner's nozzle is installed and the ignition electrode should be adjusted.
2. The direction of motor rotation should be correct.
3. External circuit connections should meet the requirements.
4. The cold state simulation of the burner is carried out according to the line condition, and it is observed that the various components of the equipment in operation should be normal and the flame detection protection part is normal.

model YX120DSG Calorific value 60-1.2 million kcal
Burning barrel length 1400mm control method Two stage fire operation
Motor Power 2.2KW Power supply (V) 380V
weight 60KGS Dimensions Length 1220mm, width 750mm, height 500mm
fuel All liquid fuel,DIESEL,OIL Ignition method Electronic ignition
Flame detection method Ion needle and UV double detection Number of nozzles 2

Industrial oil burner Product application range:
Steam, hot water, boilers, cooking stoves, spraying, hot air generators, baking equipment, melting furnaces, heating furnaces, incinerators, and other industrial furnaces

The fully automatic gas burner is a kind of equipment that converts heat into energy through combustion, featuring high thermal efficiency and high safety.

Fuel oil burner technical advantages:
1. Heat evenly to prevent local overheating.
2. The furnace is warmed up and the material is heated quickly.
3. The pressure inside the furnace is even.

4. Save fuel.
5. Flue gas contains less nitrogen oxides and less noise
6. Can achieve no emissions, no pollution.

Professional Industrial Diesel Burner Oil Boiler Burner Various Oil Bruciatore Ignition Transformer

oil burner price data sheet for reference :

Light Oil Burner YX5-YX350DSG BALTUR DESIGN
MODEL FUEL
COMBUSTION		 BUR
NER OUTPUT		 MAIN
SUPPLY		 POWER CONTROL METHOD
KG/HR KW
MIN MAX MIN MAX W KV
SINGLE STAGE BURNER
YX5(ST120) 2 5.6 24 66 220V 110 2*5 S
YX6 2.7 6.3 24 66 220V 110 2*5 S
YX10 5.2 10 60.5 116.6 220V 110 2*5 S
YX10 4.5 10 54 118.6 220V 120 2*5 S
YX20 8 20 95 237 220V 180 2*5 S
YX14 7.5 14.5 88.5 171 220V 150 2*5 S
YX18 7.6 18 90 213 220V 370 2*5 S
YX26 13 26 154 308 220V 370 2*5 S
YX35 15 33 178 391.4 220V 370 2*5 S
YX34 15 32 178 380 380V 370 2*5 S
YX40 20 45 237 534 380V 550 2*5 S
TWO STAGE BURNER
YX14DSG 7.5 14.5 88.5 171 220V 150 2*5 T
YX18DSG 10.5 22 124.5 261 220V 370 2*5 T
YX26DSG 13 26 154 308 220V 370 2*5 T
YX35DSG 15 33 178 391.4 220V 370 2*5 T
YX34DSG 15 32 178 380 380V 370 2*5 T
YX40DSG 20 45 237 534 380V 550 2*5 T
YX55DSG 28 55 332 562 380V 1100 2*5 T
YX75DSG 35 75 415 880 380V 1500 2*5 T
YX100DSG 45 100 533 1185 380V 2200 2*5 T
YX120DSG 40 140 474 1660 380V 2200 2*5 T
YX180DSG 60 180 712 2135 380V 3000 2*5 T
YX250DSG 74 270 873 3185 380V 7500 2*5 T
YX300DSG 110 325 1304 3854 380V 7500 2*5 T
YX350DSG 115 350 1346 4151 380V 7500 2*5 T
BY LIGHT DIESEL OIL BURNER RIELLO DESIGN
Burner
model		 Suitable for boiler
(TON/H)		 Burner thermal power
(KW)		 Burner thermal power
(MCAL/H)		 Oil Consume
(KG/H)		 Fan power
(KW)		 Applicable
fuel		 Adjust
Method
BY6 1 300-1186 255-1020 25-100 1.5 DIESEL OIL
KEROSENE OIL

0#diesel
11.86Kwh/kg
1.02x104kcal/h		 Z-two stage
T-three stage
R-Mechanical ratio control
BY10 1.5 600-1900 520-1642 51-160 3
BY15 2 770-2750 663-2377 65-232 4
BY20 3 890-3100 765-2683 75-261 7.5
BY30 4 1100-4100 949-3539 93-346 10
BY35 5 1300-5260 1122-4549 110-444 12
BY40 6 1150-6100 989-5273 97-514 13.5
BY55 8 1900-8750 1642-7568 160-738 15
BY70 10 1900-10500 1642-9030 160-885 22
