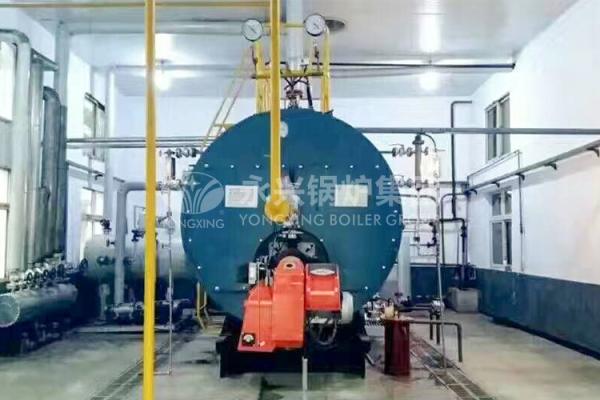

Horizontal Gas Fired Hot Water Boiler Condensing Boiler Hot Water Tank
Horizontal Gas Fired Hot Water Boiler Condensing Boiler Hot Water Tank
Horizontal Gas Fired Hot Water Boiler Condensing Boiler Hot Water Tank
Horizontal Gas Fired Hot Water Boiler Condensing Boiler Hot Water Tank
Specifications
Brand Name :
YONGXING
Model Number :
CWNS2.1-95/70-YQ
Certification :
ISO9001,ISO14001,A-CLASS，SGS,BV
Place of Origin :
HENAN PROVINCE
MOQ :
1set
Price :
negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
1000SETS/MONTH
Delivery Time :
15-30DAYS
Packaging Details :
Nude packing+wooden box+steel box ,and etc.
FUEL :
NATURAL GAS/LPG/CITY GAS ,ETC
PRESSURE :
0 or 10bar
Burner :
Italy Riello Or Italy Baltur, and brand Olin
Boiler capacity :
2.1MW
Boiler outer package :
Stainless Steel
Usage :
for residental
Description

90 degree China Horizontal Oil Gas Fired Boiler Condensing Hot Water Boiler

Oil (gas) hot water boiler

Characteristics of oil-fired gas-fired hot water boiler:

1. The inner tank adopts boiler steel thickening design and multi-return 100% water bag design, which solves the traditional low thermal efficiency and high smoke temperature emission.The thermal efficiency is as high as 91-96.3%

2, the burner adopts imported high-quality combustion machine, plus the large furnace, smoke pipe design, so that the combustion is full, heat is fully absorbed

3.The hot water boiler and furnace adopts the technology of flow guide plate, which reduces the heat capacity density of some smoke pipe units, provides more sufficient heat exchange and extends the service life

4.Automatic control system, automatic unmanned operation can be realized every day according to requirements

5.Each boiler has a certificate of quality issued by the boiler inspection

6. Each accessory is carefully screened and customized by the designated well-known domestic and foreign manufacturers

7. Equipped with automatic water level control device, low water level interlocking protection device and ultra-low water level protection device

8. with overload, leakage, lack of equal multiple electrical protection device

9. Equipped with automatic combustion monitoring device, the fuel will automatically stop and alarm if there is any abnormal situation

Product Features

1. Excellent configuration: supporting the world burner, fully automatic operation:

2. High efficiency and energy saving: the thermal efficiency is between 90% and 95%.

Large space combustion chamber and reasonable structure layout, greatly improve the fuel - steam, fuel - hot water heat exchange capacity.

3. Meet the requirements of environmental protection: large combustion chamber space, coupled with high-quality and reliable imported burner, fuel can be completely burned, greatly reducing the emission of harmful components in the smoke.

It has been tested by legal departments.

4. Reasonable design: horizontal internal combustion three-way wet back design of natural gas steam boiler, 100% corrugated furnace, with good thermal scalability.

The overall design of water and fire, sufficient heating area and reasonable structure layout are the guarantee of high efficiency operation of boiler.

5. Easy maintenance: the natural gas steam boiler is equipped with movable smoke box door before and after the boiler, with fire observation hole and inspection hole at the back, which can be entered into the furnace for inspection and cleaning.

The manhole is opened on the furnace body, and the structural design fully considers the convenience of maintenance in the future.

Oil water boiler 0.35MW-14MW Oil Gas Fired hot water boiler technical datasheet

Main technical parameters of CWNS oil (gas) atmospheric pressure and pressure hot water boiler
Project model CWNS, WNS series hot water boiler
Rated calorific value (MW) 0.35 0.7 1.05 1.4 2.1 2.8 3.5 4.2 5.6 7 8.4 10.5 12.6 14
Working pressure (MPa) Normal pressure / pressure
Outlet water temperature (°C) 85/115

Backwater temperature (°C)

 60/70
Boiler thermal efficiency (%) 91—95
Feed water temperature (°C) 20
Fuel consumption Diesel (Kg/h) 32 65.4 98 131 196.2 261.6 327 392.4 523.2 654 784.8 981 1177 1310
Heavy oil (Kg/h) 34 69.5 105 139 208.5 278 347.5 417 556 695 864 1042.5 1251 1390
Natural gas (m3/h) 39.5 79.3 119 159 237.9 317.2 396.5 475.8 644 793 951.6 1189.5 1427.4 1586
Liquefied gas (m3/h) 14.2 29 43.5 58 87 116 145 174 232 290 348 435 522 580
City gas (m3/h) 84 168.5 253 337 505.5 674 842.5 1011 1348 1685 2022 2527.5 3033 3370
Boiler transportation Length (mm) 2800 3500 4100 4500 4700 4550 5700 6300 7000 7200 7840 8100 8230 8250
Width (mm) 1600 1600 1900 2000 2110 2210 2500 2600 2700 2800 2860 3100 3100 3400
High (mm) 2000 2100 2310 2360 2470 2580 2800 2900 3200 3300 3300 3400 3400 3550
Total power consumption (KW) 2.3 6.7 11 13.5 19 21 23.5 26 37 37 42 45 52 52
Chimney diameter (mm) 250 350 430 450 450 550 650 650 650 800 800 900 1200 1200
Shipping weight (T) 3.2 4.7 4.8 5.4 8 9.78 13.4 15.4 17.4 17.4 23.8 30 31.6 34.5
Heating area (m2) 3000

6000

900

0

1200

0

1800

0

2400

0

3000

0

3600

0

4800

0

6000

0

7200

0

900

00

1080

00

1200

00

Water supply capacity (t)

 7 15 22 30 45 60 75 90 120 150 180 225 270 300

Oil water boiler Vocume hot water boiler

Project / model ZKW0.7-85/60-Y(Q) ZKW1.05-85/60-Y(Q) ZKW1.4-85/60-Y(Q) ZKW1.75-85/60-Y(Q) ZKW2.1-85/60-Y(Q) ZKW2.8-85/60-Y(Q) ZKW3.5-85/60-Y(Q)
Heat medium water capacity (L) 410 520 568 700 830 980 1250
Rated calorific value (Mw/h) 0.7 1.05 1.4 1.75 2.1 2.8 3.5
Rated calorific value 60 90 120 150 180 240 300
Fuel consumption Light diesel oil (Kg/h) 64 96 128 160 192 256 320
Heavy oil (Kg/h) 67.3 100 134 168 202 269 363
Natural gas (m3/h) 165 116 155 193 232 310 387
City gas (m3/h) 77 247 330 412 494 659 824
Liquefied gas (m3/h) 29 44 58 73 88 117 146
Heat Exchanger Material/structure Stainless steel
Working pressure (MPa) 1
Heating Maximum calorific value 36 54 72 90 108 144 180
Warm water circulation 36 54 72 90 108 144 180
Pressure loss 2.2 3 2 2.6 2.5 3.5 3.3
Heating outlet (DN) 65 80 80 100 125 125 133
Heating area (m2) 6000 9000 12000 15000 18000 24000 30000
Special for hot water Maximum calorific value twenty four 36 48 60 72 96 120
Water supply capacity (m3/h) 6 9 12 15 18 twenty four 30
Hot water temperature 50
Pressure loss 2 0.6 1.5 1.8 1.5 1.8 2
Water outlet diameter (DN) 40 65 65 80 100 100 125
Voltage Voltage (V) 220/380
Total power consumption 2.2 (2.6) 3.7 (4.1) 5.0 (6.5) 7.5(9) 11 (2.5) 15 (16.5) 18.5(20)
Blower power consumption 2.2 3.7 5 7.5 11 15 18.5
Oil pump power consumption 0.4 0.4 1.5 1.5 1.5 1.5 1.5
size Chimney diameter (mm) 350 350 400 450 500 550 600
Long (m) 2700 3200 3400 4050 4700 4900 5500
Width (m) 1365 1365 1600 1600 1600 1800 2020
High (m) 2345 2400 2500 2580 2580 2630 2700
