1.4MW Oil Fired Hot Water Boiler With Big Furnace Threaded Pipe Design
1.4MW Oil Fired Hot Water Boiler With Big Furnace Threaded Pipe Design
1.4MW Oil Fired Hot Water Boiler With Big Furnace Threaded Pipe Design
1.4MW Oil Fired Hot Water Boiler With Big Furnace Threaded Pipe Design
1.4MW Oil Fired Hot Water Boiler With Big Furnace Threaded Pipe Design
1.4MW Oil Fired Hot Water Boiler With Big Furnace Threaded Pipe Design
Specifications
Brand Name :
YONGXING
Model Number :
CWNS1.05-95/70-YQ
Certification :
ISO9001,ISO14001,A-CLASS，SGS,BV
Place of Origin :
HENAN PROVINCE
MOQ :
1set
Price :
negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
1000SETS/MONTH
Delivery Time :
15-30DAYS
Packaging Details :
Nude packing+wooden box+steel box ,and etc.
FUEL :
NATURAL GAS/LPG/CITY GAS ,ETC
PRESSURE :
0 or 1.0Mpa
Burner :
Italy Riello Or Italy Baltur, and brand Olin
Boiler capacity :
1.05MW
Boiler outer package :
Stainless Steel
Usage :
for heating
Description

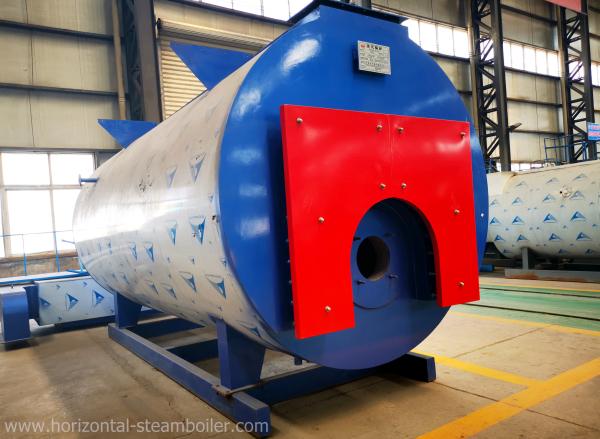

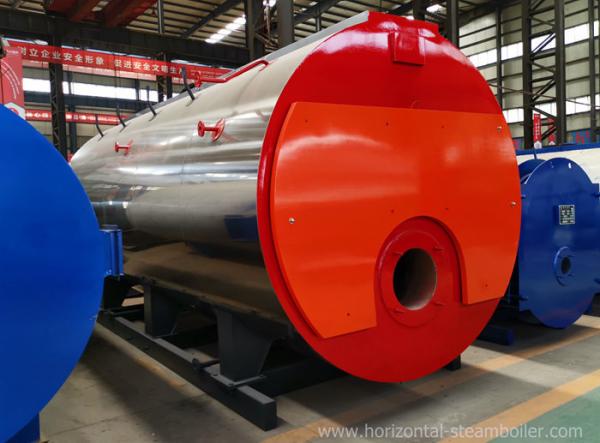

1.4MW Oil Fired Hot Water Boiler with big furnace and threaded pipe design for hospital

The Oil Fired Hot Water Boiler for the hospital is small in size and covers a small area. Clean, low noise and low pollution make it a great choice for workshop factories.

Horizontal Oil Fired Hot Water Boiler features:

1, The Oil Fired Hot Water Boiler structure is three return, all wet back.


2, Designed as a large furnace, thick smoke pipe, thus increasing the heat absorption of the furnace, effective energy saving.


3, The Oil Fired Hot Water Boiler pipe is designed in the form of thread, good thermal expansion and contraction characteristics can also increase the heating area.


4, The temperature inside the boiler is uniform, which can effectively absorb the heat of the flame and control the generation of NOX.


5, The Oil Fired Hot Water Boiler design of supporting manholes, head holes, hand holes, simplifying the cleaning work, making maintenance and maintenance extremely convenient.

1.4MW Oil Fired Hot Water Boiler With Big Furnace Threaded Pipe Design

Oil Fired Hot Water Boiler 0.35MW-14MW, Oil Gas Fired hot water boiler technical datasheet

Main technical parameters of CWNS oil (gas) atmospheric pressure and pressure hot water boiler
Project model CWNS, WNS series hot water boiler
Rated calorific value (MW) 0.35 0.7 1.05 1.4 2.1 2.8 3.5 4.2 5.6 7 8.4 10.5 12.6 14
Working pressure (MPa) Normal pressure / pressure
Outlet water temperature (°C) 85/115
Backwater temperature (°C) 60/70
Boiler thermal efficiency (%) 91—95
Feed water temperature (°C) 20
Fuel consumption Diesel (Kg/h) 32 65.4 98 131 196.2 261.6 327 392.4 523.2 654 784.8 981 1177 1310
Heavy oil (Kg/h) 34 69.5 105 139 208.5 278 347.5 417 556 695 864 1042.5 1251 1390
Natural gas (m3/h) 39.5 79.3 119 159 237.9 317.2 396.5 475.8 644 793 951.6 1189.5 1427.4 1586
Liquefied gas (m3/h) 14.2 29 43.5 58 87 116 145 174 232 290 348 435 522 580
City gas (m3/h) 84 168.5 253 337 505.5 674 842.5 1011 1348 1685 2022 2527.5 3033 3370
Boiler transportation Length (mm) 2800 3500 4100 4500 4700 4550 5700 6300 7000 7200 7840 8100 8230 8250
Width (mm) 1600 1600 1900 2000 2110 2210 2500 2600 2700 2800 2860 3100 3100 3400
High (mm) 2000 2100 2310 2360 2470 2580 2800 2900 3200 3300 3300 3400 3400 3550
Total power consumption (KW) 2.3 6.7 11 13.5 19 21 23.5 26 37 37 42 45 52 52
Chimney diameter (mm) 250 350 430 450 450 550 650 650 650 800 800 900 1200 1200
Shipping weight (T) 3.2 4.7 4.8 5.4 8 9.78 13.4 15.4 17.4 17.4 23.8 30 31.6 34.5
Heating area (m2) 3000 6000 9000

12

000

18

000

24

000

30

000

36

000

48

000

60

000

72

000

90

000

108

000

120

000
Water supply capacity (t) 7 15 22 30 45 60 75 90 120 150 180 225 270 300

1.4MW Oil Fired Hot Water Boiler With Big Furnace Threaded Pipe Design
