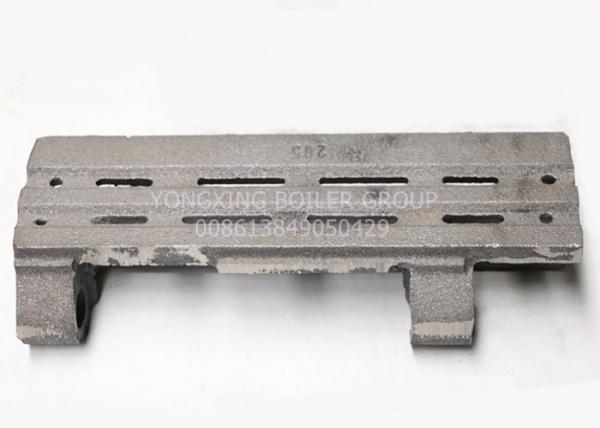

casting iron boiler grate bar four jaw flake grate bars little leakage
casting iron boiler grate bar four jaw flake grate bars little leakage
casting iron boiler grate bar four jaw flake grate bars little leakage
casting iron boiler grate bar four jaw flake grate bars little leakage
Specifications
Brand Name :
YONGXING
Model Number :
Normal grate bar,small scale grate bar,big scale grate bar,active grate bar,
Certification :
ISO9001
Place of Origin :
SHANDONG ,JIANGSU
MOQ :
100pcs
Price :
negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100000PCS/YEAR
Packaging Details :
Wood pallet with plastic films,or wooden box .
Material :
HT150,HT200,Gray Iron and etc
Capacity :
100000pcs/year
Size :
Normall size all support
for boiler :
coal fired steam boiler
Description

casting iron boiler grate bar four jaw flake grate bars little leakage

Advantages of the small scale grate:

1. The coal seam is in contact with the entire grate surface, and the chain is not directly heated, and the operation is safe and reliable;

2. The gap between the grate is very small, and there is little leakage;

3. The furnace row is thinner, the cooling condition is good, and the furnace can be replaced without stopping the furnace;

4. Since the chain is a flexible structure, when the tooth shape of the sprocket on the drive shaft is slightly staggered, the tightness can be adjusted by itself to maintain a good fit.

5. The main supply of power plants, coal mines, printing and dyeing plants, boiler plants, etc., has been highly recognized by the industry.

Products Model Material and Performance

Flake chain grate bar

 288mm,301mm, 311mm, 314mm, 315mm, 318mm
  • HT150.Heat-resistance 450-500℃

  • QTSi5.Heat-resistance 1000-1200℃

325mm, 330mm, 340mm,

365mm, 368mm

-Passive grate piece 12mm 15mm 18mm 20mm 24mm 26mm30mm32mm single and double wind passive grate bar

-Three-jaw grate, 112mm 115mm 118mm 120mm 125nn 133mm 135mm 150mm 155mm 165mm 205mm

-Four-claw grate 200mm, 214mm 219mm, 220mm, 230mm 240mm 245mm 250mm 252mm 265mm, 286mm, 296mm 320mm, 330mm, 350mm, 368mm, 370mm, 380mm, 385mm 390mm, 400mm

- Live core grate: 200mm 203mm 220mm 228mm 231mm 237mm 235mm 245mm 250mm 255mm290mm;
- Scale grate: 288mm 301mm 311mm 315mm 318mm 325mm 330mm 340mm 365mm 368mm 395mm
- five holes left / right / middle splint
- six holes left / right / middle splint
- seven holes left / right / middle splint
- eight holes left / right / middle splint
- Active film: 0.85kg 0.9kg 1.00kg
- Left and right active sheets: Large side Medium Small side sprocket 4-65 toothed sprocket
- Coal gate (80mm 90mm 1m 1.1m 130m 1.36m 146m 150m 160m 170m 176m 2.2m2.4m)

casting iron boiler grate bar four jaw flake grate bars little leakagecasting iron boiler grate bar four jaw flake grate bars little leakage
