Large Scale Chain Grate Stoker Bituminous Coal Fired Boiler With Coal Furnace Grates
Large Scale Chain Grate Stoker Bituminous Coal Fired Boiler With Coal Furnace Grates
Large Scale Chain Grate Stoker Bituminous Coal Fired Boiler With Coal Furnace Grates
Large Scale Chain Grate Stoker Bituminous Coal Fired Boiler With Coal Furnace Grates
Large Scale Chain Grate Stoker Bituminous Coal Fired Boiler With Coal Furnace Grates
Large Scale Chain Grate Stoker Bituminous Coal Fired Boiler With Coal Furnace Grates
Specifications
Brand Name :
YONGXING
Model Number :
SZL,DZL
Certification :
ISO9001,ISO14001
Place of Origin :
HENAN
MOQ :
1set
Price :
negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000sets/year
Packaging Details :
Nude Packing
Fuel :
Soft coal, Biomass, wood chip, wood pellets
Application :
Heating, Industrial, Burning, Drying
Material :
HT150,HT200,nodular cast iron,cast steel,alloy steel,etc
Burner :
Riello, Baltur,or Optional
Warranty :
1year
Type :
SZL/DZL/DZH
Flake :
Large/small scale type fired grate
Installation :
Assembled
Description

Factory supplier bituminous coal fired boiler with coal furnace grates cross girder grate combustion device


Product Description

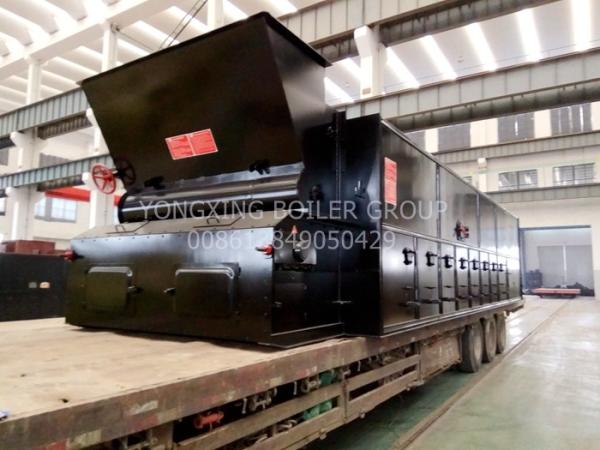

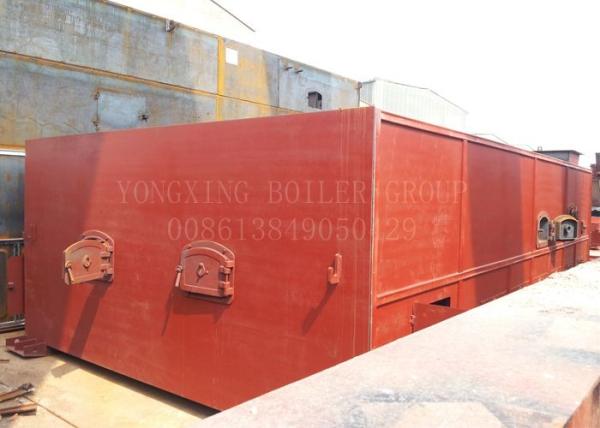

The coal furnace chain grates is a compact and technologically advanced layer burning device. Mainly by bracket, upper and lower rails, furnace chain, front axle assembly and rear rail, side seal, ash ashing device, coal hopper, front damper and duct. It can be widely used as a combustion equipment in large-scale boilers (which can be used for chain grate boilers with evaporation capacity of 20~90t/h) and various heating and drying equipments. Suitable for burning bituminous coal, lignite and peat. It can also be used as a combustion equipment for renewable fuels such as bagasse, firewood and rice husk.

The fuel of coal furnace grates should meet the following requirements


1. The maximum particle size of the coal block should not exceed 40mm, of which 0~6mm fine coal does not exceed 50% of the total, of which the coal content of 0~3mm is less than 25% of the total.


2. The moisture content of bituminous coal or lignite should be less than 20%, and the moisture content of 8~10% is the best choice.


3. The content of coal ash in coal combustion is between 10% and 30%, and the volatile component should not be lower than 20%.


4. The ash melting temperature of coal burning is less than 1250 ° C, and the coking property of the fuel is very low.


5. The low calorific value of coal combustion should be greater than 4226kcal/kg.


6. The primary air temperature used in this grate should not exceed 200 °C.

Data Sheet

Main technical Parameters of Crossgirder Grate Combustion Device
Boiler Capacity
(t/h)		 Active grate
area (m2)		 Stoker height
(mm)		 Wheel base
(mm)		 Active grate width
(mm)		 Width between
two endplates
(mm)		 Length of shaft
out of grate (mm)		 Height of shaft
out of grate (mm)		 Dia. of shaft out
of grate (mm)		 Qty of
wind chamber
10t/h 11.7 1152 6443 2106 2358 1600 582 Φ100 5
15t/h 17.61 997 7385 2666 2820 1829 625 Φ100 5
20t/h 19.98 1197 8289 2656 2820 1708 826 Φ120 8
20t/h 22.75 997 7420 3426 3560 2205 625 Φ130 5
30t/h 31.6 997 8507 4166 4300 2585 580 Φ130 7
35t/h 35.34 1010 8000 4418 4670 2784 593 Φ130 6
35t/h .34.6 997 7477 4536 4670 2770 580 Φ130 6
40t/h 42.1 1040 10153 4418 4670 2784 623 Φ130 8
65t/h 61 1030 8923 7510 7676 4383 623 Φ230 7
65t/h 56 1040 9188 6658 6824 3957 623 Φ230 7
65t/h 57.27 1040 9085 6927 7216 4153 623 Φ230 7

Large Scale Chain Grate Stoker Bituminous Coal Fired Boiler With Coal Furnace Grates
