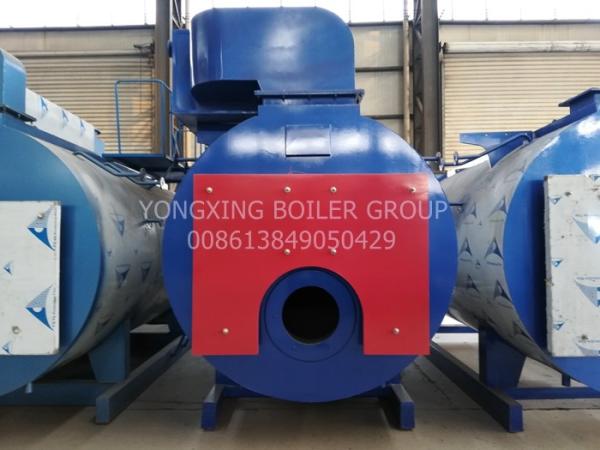

Industrial Fire Tube Boiler And Water Tube Boiler For Laundry 92% Efficiency
Industrial Fire Tube Boiler And Water Tube Boiler For Laundry 92% Efficiency
Industrial Fire Tube Boiler And Water Tube Boiler For Laundry 92% Efficiency
Industrial Fire Tube Boiler And Water Tube Boiler For Laundry 92% Efficiency
Specifications
Brand Name :
Yongxing
Model Number :
WNS
Certification :
ISO9001,CE,ISO
Place of Origin :
Henan China
MOQ :
1set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1-1000 set
Delivery Time :
25 works day
Packaging Details :
Nude Package,Package with Steel Box,Wooden Box
Fuel :
Oil-fired,Gas-fired,natural gas,lpg,lng
Output :
Steam
Type :
Natural Circulation
Thermal efficiency :
92%
Color :
Customer's Requirement
Design fuel :
Light Oil,etc,Heavy Oil,Oil/Gas,Gas
Pressure :
Low Pressure(1.25MPa)
After-sales service provided :
Engineers available to service machinery overseas
Class :
A
Control System :
Automatic
Usage :
Industrial
Condition :
New
Weight :
Consult customer-service staff
Description

New condition industrial gas fired steam boilers and fire tube steam boiler for Laundry

WNS series industrial gas fired steam boilers are horizontal three pass fire tube wet back full automatic steam boiler. It normally suitable for 0.5t/h to 20ton/h capacity. According to different fuels, gas boilers can be divided into natural gas boilers, city gas boilers, coke oven gas boilers, liquefied petroleum gas boilers, and biogas boilers.


1.Condensation technology
The economizer and condenser are installed at the tail of industrial gas fired steam boilers to fully absorb the residual heat in the flue gas, and the fire tube steam boiler efficiency has been greatly improved.


2.High thermal efficiency
The condenser can reduce the exhaust temperature of the boiler to 50~70 °C, and the thermal efficiency can reach more than 92%.


3.Widely application
Condensing gas boiler can be widely used in hotels, schools, hospitals, textile factories, canteens, restaurants, food factories, pharmaceutical factories, packaging plants, building materials factories, swimming pools, etc.


4.Long life
The use of a high-strength furnace greatly reduces the expansion stress of the furnace and prolongs the service life of the equipment.


5.Fully combustion
The furnace has a full corrugated furnace structure, which increases the radiation heat transfer area and makes the fuel burn more fully.


6.Fuel adaptability
The fire tube steam boiler has a large combustion chamber volume and can be fully adapted to various fuels such as city gas, natural gas, light diesel oil and heavy oil.


7.Reliable quality
The welding technology is advanced, the welding quality is very high, and the qualified rate of flaw detection is over 99.99%.


8.Less pollution
The method of micro-positive pressure combustion has a small amount of pollutants in the flue gas.

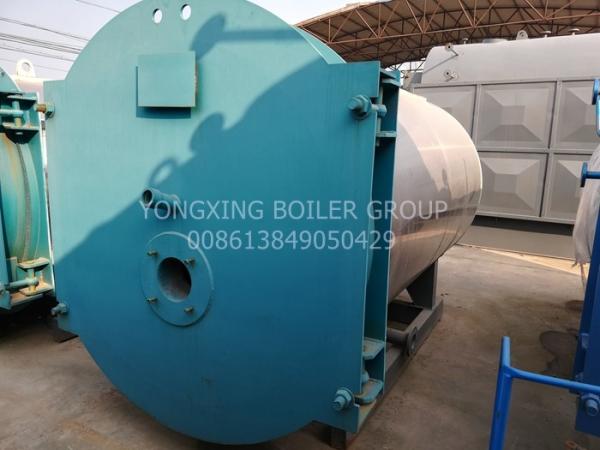

Industrial Fire Tube Boiler And Water Tube Boiler For Laundry 92% Efficiency

Commercial gas boiler data sheet

Model

Rated evaporation capacity(t/h)

Working Pressure(Mpa)

Steam Temperature(℃)

Feed Temperature(℃)

Transportation Size(m)(L×W×H)

WNS1-0.7-Y(Q)

1

0.7

170

20

3.3×1.8×2.1

WNS1-1.0-Y(Q)

1

1

184

20

3.3×1.8×2.1

WNS2-1.0-Y(Q)

2

1

184

20

4.4×2.1×2.5

WNS2-1.25-Y(Q)

2

1.25

194

20

4.4×2.1×2.5

WNS4-1.25-Y(Q)

4

1.25

194

20

4.7×2.5×2.9

WNS4-1.6-Y(Q)

4

1.6

204

20

4.7×2.5×2.9

WNS6-1.25-Y(Q)

6

1.25

194

20

5.9×2.6×3.0

WNS6-1.6-Y(Q)

6

1.6

204

20

5.9×2.6×3.0

WNS8-1.25-Y(Q)

8

1.25

194

105

5.9×2.8×3.1

WNS8-1.6-Y(Q)

8

1.6

204

105

5.9×2.8×3.1

WNS10-1.25-Y(Q)

10

1.25

194

105

7.7×2.8×3.1

WNS10-1.6-Y(Q)

10

1.6

204

105

7.7×2.8×3.1

WNS15-1.25-Y(Q)

15

1.25

194

105

7.0×3.1×3.6

WNS15-1.6-Y(Q)

15

1.6

204

105

7.0×3.1×3.6

WNS20-1.25-Y(Q)

20

1.25

194

105

8.3×3.4×4.0

WNS20-1.6-Y(Q)

20

1.6

204

105

8.3×3.4×4.0

Packing List of condensing steam boiler

Packing List
1 Boiler main part 1 set
2 Imported gas/oil burner 1 set
3 Electric control box 1 set
4

Valve & Gauge used

on boiler main part

 1 set
5 Feeding water Pump 2 set
6 Smoke chimney 1 set
7 Water treatment equipment 1 set
8 Steam distributor 1 set

Boiler Reference of Gas/Oil Fired Steam Boiler
NO. Country Model Application
1 Indonesia WNS6-1.25-Y (Q) Textile industry
2 Pakistan WNS1-1.0-Y (Q) Chemical plant
3 Thailand WNS1-1.0-Y (Q) Laundry industry
4 Indonesia WNS2-1.0-Y (Q) Building industry
5 Malaysia WNS8-1.25-Y (Q) Chemical industry
