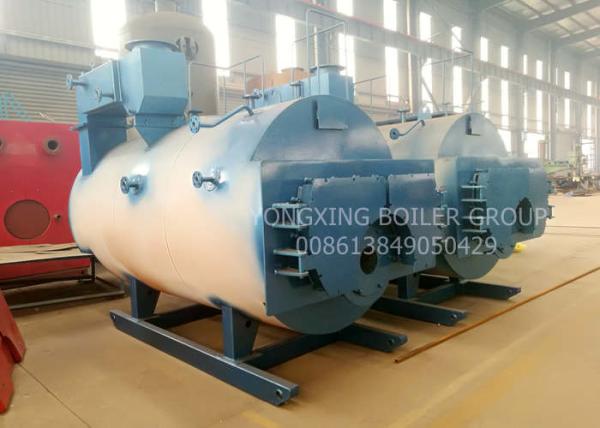

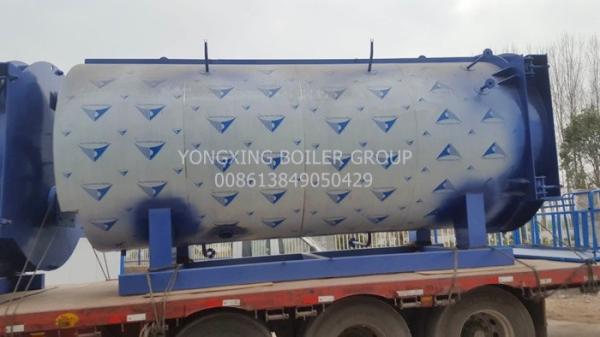

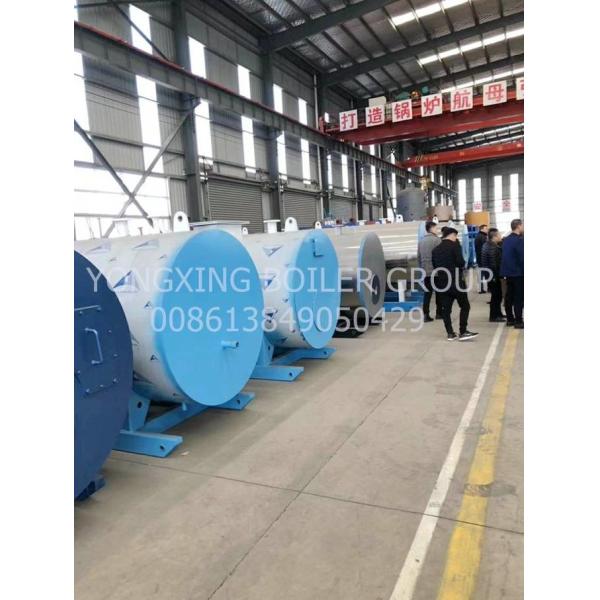

5 Ton Diesel Industrial Gas Boiler / Central Heating Most Efficient Gas Boiler
5 Ton Diesel Industrial Gas Boiler / Central Heating Most Efficient Gas Boiler
5 Ton Diesel Industrial Gas Boiler / Central Heating Most Efficient Gas Boiler
5 Ton Diesel Industrial Gas Boiler / Central Heating Most Efficient Gas Boiler
Specifications
Brand Name :
YONGXING
Model Number :
WNS1ton~20ton,1.25/1.6/2.5Mpa,Oil fired steam boiler
Certification :
ISO9001,ISO14001,A-CLASS，SGS,BV
Place of Origin :
HENAN PROVINCE
MOQ :
1set
Price :
negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
1000SETS/MONTH
Delivery Time :
15-30DAYS
Packaging Details :
Nude packing+wooden box+steel box ,and etc.
Burner :
Italy Riello Or Italy Baltur, and brand Olin
Thermal Efficiency :
99%
Material :
Q345R Steel Plate
Working Life :
More Than 20 Years
Protection :
Interlock Alarm
Applications :
Central heating, mass heating
Fuel :
Diesel Oil, Natural Gas, Heavy Oil, Light Oil, Lpg, Cng
Steam temperature :
184°C 194°C 225°C
Type :
Automatic Operating
Structure :
Fire Tube Three Way Wet Back
Capacity :
1ton/h-20ton/h
Name :
Industrial Gas Boiler
Description

5 Ton Diesel Industrial Gas Boiler For Food Processing Factory Most Efficient Gas Boiler

Industrial Gas Boiler introduction

For being series gas boiler, the boiler adopts horizontal tee wet back structure, equipped with the world brand burner, large corrugated furnace, high degree of automation of perfectly compatible with PLC control system in the boiler, can time chain multiple security protection, thermal efficiency is as high as 98%, can be widely used in food processing industries such as fruit juice, beer, rice processing plant, Catsup factory,etc.

Industrial Gas Boiler Core Technology:

1. The PLC control system completely matched with the Industrial Gas Boiler can ensure the safe and efficient operation of the Industrial Gas Boiler.

2. Set up multiple safety interlocking protection functions, such as automatic water level control system, flameout protection system and self-locking protection system after a power failure, etc., to ensure the safe operation of the Industrial Gas Boiler

3. Industrial Gas Boiler operation data automatic storage and fault automatic identification function, greatly convenient maintenance.

4. Industrial Gas Boiler can be connected to the Internet to realize remote monitoring and other functions

5. Beautiful and durable packaging design.

5 Ton Diesel Industrial Gas Boiler / Central Heating Most Efficient Gas Boiler

Industrial Gas Boiler technique parameter

Industrial Gas Boiler model Capacity Pressure Feed temp. Steam temp. Fuel consume. Thermal efficiency
Light oil Heavy oil
t/h Mpa ℃ ℃ kg/h kg/h %
WNS1-1.0-Y(Q) 1 1 20 184 65.5 67.3 91
WNS 2-1.25- Y(Q) 2 1.25 20 194 129.6 132.2 92
WNS3-1.25-Y(Q) 3 1.25 20 194 192 195 92.1
WNS4-1.25- Y(Q) 4 1.25 20 194 256 261.9 93
WNS5-1.25- Y(Q) 5 1.25 20 194 318 322 93
WNS6-1.25- Y(Q) 6 1.25 20 194 380 390.6 93.2
WNS8-1.25- Y(Q) 8 1.25 105 194 503 517 93.5
WNS10-1.25- Y(Q) 10 1.25 105 194 628 643 93.5
WNS15-1.25- Y(Q) 15 1.25 105 194 940 965 93.5
WNS20-1.25- Y(Q) 20 1.25 105 194 1250 1301 93.5

5 Ton Diesel Industrial Gas Boiler / Central Heating Most Efficient Gas Boiler
